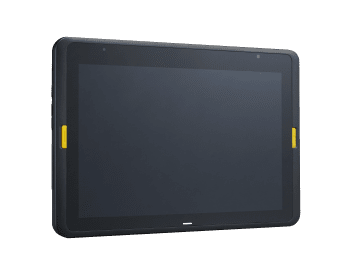

MT-6210W


MT-6210W is a 10.1” semi-rugged tablet powered by Intel’s Elkhart Lake processor, designed with 1.2m drop resistance and IP54 rating, equip with USB Type-C Port with fast charging and support comprehensive attachments.

Thin, Lightweight and Semi-Rugged

  • The MT-6200 Series boasts great aesthetics; the thin and lightweight design is well-suited for business environments, while its semi-rugged construction allows it to withstand drops of up to 1.2 meters and offers IP-54 protection.

Type-C Charging Dock with Rich I/O

  • Featuring USB Type-C charging dock with a diverse range of I/O ports to enhance its functionality for stationary operations.

Seamless Connectivity

  • MT-6200 Series leads the way with seamless connectivity, supporting WiFi 5/6 and Bluetooth 5.0/5.2, ensuring a superior and efficient user experience.

Cleverly Programmable Function Keys

  • The MT-6200 series features 2 physical buttons, which are suitable triggers for the built-in 2D Barcode scanner. These buttons are also programmable, allowing customization for your specific applications.
Specification (Tablet Only)
Processor Intel Elkhart Lake N6210 (2C2T, Burst Frequency 2.60 GHz,
Processor Base Frequency 1.20 GHz)
System Memory On-board 8GB LPDDR4
Storage Device On-board 64GB eMMC (Option: 128GB eMMC)
Supported Expansion Storage 1 x TF Card slot, up to 512GB
TPM Support N/A
Intel vPro Support Yes, TPM 2.0
OS Support Windows 10 IoT LTSC/ Windows 11 IoT GAC
LCD 10.1” TFT LCD with LED backlight
Resolution 800×1280
Brightness 300nits
Touch Input PCAP supporting multi-touch, Cover Glass : Corning Gorilla III
WiFi Wi-Fi IEEE 802.11a/b/g/n/ac/ax (WiFi6)
Accessory port 1 x Inner USB 2.0 pin header (for attachment)
Docking Port 1 x USB-C as docking connector & power charging function
Audio 1 x 1W speaker, 1 x 3.5mm Headphone Jack
OTG USB Port
Camera Front : 2MP (FF)
Rear : 5MP (AF)
Standard USB port
Button 1 x Power Button, 1 x Vol+/-, 2 x programmable Key
LAN port
CR Port
Sensor G-sensor, ALS
Built-in Printer
LED indicator 1 x LED indicator (tri-color) for power up/ battery/ BCR scan
Battery 2S1P Li-Po battery, 45Wh
Adapter AC100~240V, Type-C type connector, Support PD
Speaker/Audio + Mic
BT BT 5.2
I/O
NFC
Physical Dimension (Tablet Only)
Dimension (W x D x H in mm) 261 x 176.8 x 19.4
Weight (N. W. in g) 970
Environmental
Drop 1.0 m, 1.2m with protection case
IP Rating IP54
Operation Condition 0°C – 40°C, 20%RH – 90%RH
Storage Condition -20°C – 60°C, 10%RH – 90%RH
Built-in Options
Smart Card Reader
3G Communication
4G / LTE Communication
NFC Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica),
ISO/IEC 15693, ISO/IEC-18092
Customer Display
Camera
Scanner
Attachment Options
MSR (TA-220 / TA-300)
RFID (TA-220)
Fingerprint sensor (TA-300)
Pistol Grip (PG-201E)
Pistol Grip (PG-500)
Scanner
Shoulder Strap + 2nd Battery Option (TA-500)
Shoulder Strap + 2nd Battery Option (TA-600)
EMV Chip Card Reader
2 in 1 MSR/ FPU Side attachment (TA-620) 3 track MSR support (ISO7811 magnetic card)
Fingerprint Sensor support (Active Capacitive technology)
2D BCR ( Factory option) 1280*800 CMOS Sensor, Resolution≧5mil, Decoding Capability 1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128,
Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI- Plessey GS1 Databar,GS1 Composite Code, Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5 …etc
2D: QR Code, Data Matrix, PDF417,Aztec,Maxi Code,
Dotcode…etc.
Standalone Options
Removal Battery Charging Rack (CS-100)
Tablet Charging Rack (CS-210 / CS-220)
Quad Tablet Charging Rack (CS-200)
Hand Strap
Protection Cover (MC-408)
Docking Station (CS-640) Single charging station for 8” & 10.1” Opera Series tablet Provide 2 x USB 2.0, 1 x RJ50 COM Port, 1 x 10/100 Mbps LAN
Port
