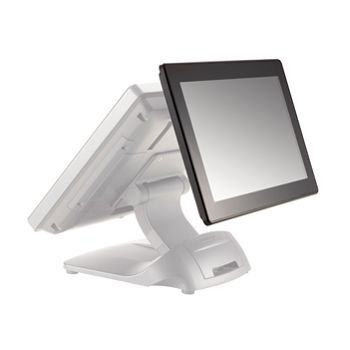

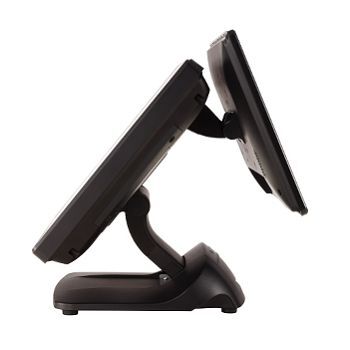

The LM-3010E is a 14″ LCD 2nd monitor bezel-free display with resolution up to 1366 x 768 (wide screen 16:9 aspect ratio) for all XT Series POS terminals.
The LM-3010E is a 14″ LCD 2nd monitor bezel-free display with resolution up to 1366 x 768 (wide screen 16:9 aspect ratio) for all XT Series POS terminals.
The LM-3010E is a 14″ LCD 2nd monitor bezel-free display with resolution up to 1366 x 768 (wide screen 16:9 aspect ratio) for all XT Series POS terminals.
• • SPECIFICATION | • • • • • • • • • • |
---|---|
LCD | 14″ TFT LCD |
RESOLUTION | Up to 1366 x 768 |
Active Area | 309.399 (H) x 173.952 (V) |
Pixel Pitch | 0.2265 (H) x 0.2265 (V |
Pixel Arrangement | RGB Vertical Stripe |
Viewing Angle | 20/45/45/45 degree (U/D/L/R) |
Contrast Ratio | 600:1 |
Response Time | 3 ms (Raising)/7 ms (Falling) |
Brightness | 220 cd/m2 |
General Specification | • • • • • • • • • • |
Display Interface | VGA |
Power Supply | 12V from Posiflex terminal VGA port |
System Supported | All XT Series (excl. XT-2614Q) |
BRAND | POSIFLEX |
• • SPECIFICATION | • • • • • • • • • • |
---|---|
LCD | 14" TFT LCD |
RESOLUTION | Up to 1366 x 768 |
Active Area | 309.399 (H) x 173.952 (V) |
Pixel Pitch | 0.2265 (H) x 0.2265 (V |
Pixel Arrangement | RGB Vertical Stripe |
Viewing Angle | 20/45/45/45 degree (U/D/L/R) |
Contrast Ratio | 600:1 |
Response Time | 3 ms (Raising)/7 ms (Falling) |
Brightness | 220 cd/m2 |
General Specification | • • • • • • • • • • |
Display Interface | VGA |
Power Supply | 12V from Posiflex terminal VGA port |
System Supported | All XT Series (excl. XT-2614Q) |
BRAND |
The HC-1021IR is an infotainment terminal with 21.5″ IR touch screen display. Well-suited to meet durability and aesthetic requirements, the HC-1021IR offers real versatility for a variety of interactive solutions including self-service kiosks, kitchen display systems, and point-of-information solutions.
The Cachet JK-3200 Series is a sleek, flexible 32” kiosk designed to seamlessly integrate into any retail setting. Featuring a true-flat design and numerous peripheral options, it supports all self-service applications, facilitating a closer customer-retailer connection.
The Stellar TK-2100 Series is a modular kiosk that can be tailored to blend into the existing store decoration and complement the company’s branding. Purpose-built for various self-service applications, this kiosk can be integrated with diverse peripherals, delivering versatile performance to help business owners enhance customer engagement.
• 21.5” true-flat PCAP touch screen
• Flexible configurations: floor-standing, countertop
• Expandable pedestal for extra functionalities:
bill acceptance, card dispensing, ticketing and pager dispensing
• Modular design for easy serviceability
• Ideally for self-service applications in retail, food-service, hospitality, healthcare, ticketing
