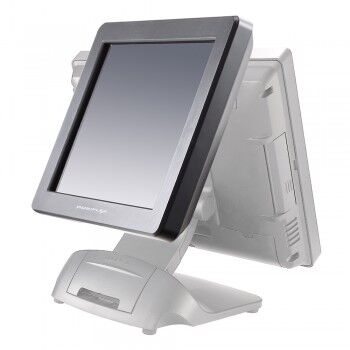

POS MONITOR LM-3215E

Posiflex Products

The LM-3215E is a 15″ LCD 2nd monitor with resolution up to 1024 x 768 for all  XT Series POS terminals.

The LM-3215E is a 15″ LCD 2nd monitor with resolution up to 1024 x 768 for all  XT Series POS terminals.



• • SPECIFICATION

• • • • • • • • • •

LCD

15" TFT LCD

RESOLUTION

Up to 1024 x 768

Active Area

304.128 (H) x 228.096 (V)

Pixel Pitch

0.297 (H) x 0.297 (V)

Pixel Arrangement

RGB Vertical Stripe

Viewing Angle

80/80/80/80 degree (U/D/L/R)

Contrast Ratio

600:1

Response Time

3 ms (Raising)/7 ms (Falling)

Brightness

350cd/m2

General Specification

• • • • • • • • • •

Display Interface

VGA

Power Supply

12V from Posiflex terminal VGA port

System Supported

All XT Series (excl. XT-2614Q)
