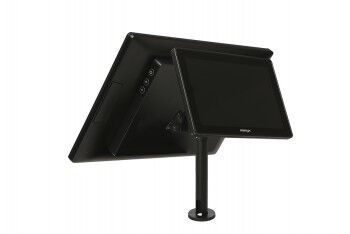

POS MONITOR LM-4010DP

Posiflex Products

The LM-4010DP is a 9.7″ LCD 2nd monitor bezel-free display with resolution up to 1024 x 768 for all RT Series POS terminals.

The LM-4010DP is a 9.7″ LCD 2nd monitor bezel-free display with resolution up to 1024 x 768 for all RT Series POS terminals.



• • SPECIFICATION

• • • • • • • • • •

LCD

9.7" TFT LCD

RESOLUTION

Up to 1024 x 768

Active Area

196.61 (H) x 147.46 (V)

Pixel Pitch

0.192 (H) x 0.192 (V)

Pixel Arrangement

RGB Vertical Stripe

Viewing Angle

60/70/70/70 degree (U/D/L/R)

Contrast Ratio

500:1

Response Time

20 ms (Raising + Falling)

Brightness

350cd/m2

General Specification

• • • • • • • • • •

Display Interface

DP + VGA

Power Supply

12V from Posiflex terminal Serial port

System Supported

RT Series
