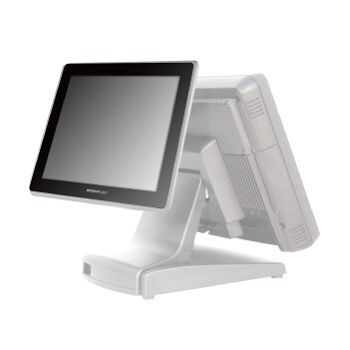

The TM-3015E/KS is a 15″ LCD 2nd monitor bezel-free display with PCAP touch, supporting up to 1024 x 768 resolution for 15″ & 17″ KS Series POS terminals.
The TM-3015E/KS is a 15″ LCD 2nd monitor bezel-free display with PCAP touch, supporting up to 1024 x 768 resolution for 15″ & 17″ KS Series POS terminals.
The TM-3015E/KS is a 15″ LCD 2nd monitor bezel-free display with PCAP touch, supporting up to 1024 x 768 resolution for 15″ & 17″ KS Series POS terminals.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| LCD | 15" TFT LCD |
| RESOLUTION | Up to 1024 x 768 |
| Active Area | 304.128 (H) x 228.096 (V) |
| Pixel Pitch | 0.297 (H) x 0.297 (V) |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing Angle | 80/80/80/80 degree (U/D/L/R) |
| Contrast Ratio | 600:1 |
| Response Time | 3 ms (Raising)/7 ms (Falling) |
| Brightness | 350 cd/m2 |
| TOUCH | • • • • • • • • • • |
| Touch Type | Brezel-free PCAP touch |
| Interface | USB |
| General Specification | • • • • • • • • • • |
| Display Interface | VGA |
| Power Supply | 12V from Posiflex terminal VGA port |
| System Supported | 15”/17” KS Series |
| BRAND |
The TM-3015E/KS is a 15" LCD 2nd monitor bezel-free display with PCAP touch, supporting up to 1024 x 768 resolution for 15" & 17" KS Series POS terminals.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| LCD | 15" TFT LCD |
| RESOLUTION | Up to 1024 x 768 |
| Active Area | 304.128 (H) x 228.096 (V) |
| Pixel Pitch | 0.297 (H) x 0.297 (V) |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing Angle | 80/80/80/80 degree (U/D/L/R) |
| Contrast Ratio | 600:1 |
| Response Time | 3 ms (Raising)/7 ms (Falling) |
| Brightness | 350 cd/m2 |
| TOUCH | • • • • • • • • • • |
| Touch Type | Brezel-free PCAP touch |
| Interface | USB |
| General Specification | • • • • • • • • • • |
| Display Interface | VGA |
| Power Supply | 12V from Posiflex terminal VGA port |
| System Supported | 15”/17” KS Series |
| BRAND |
