Price Checker SG-15 Coloured

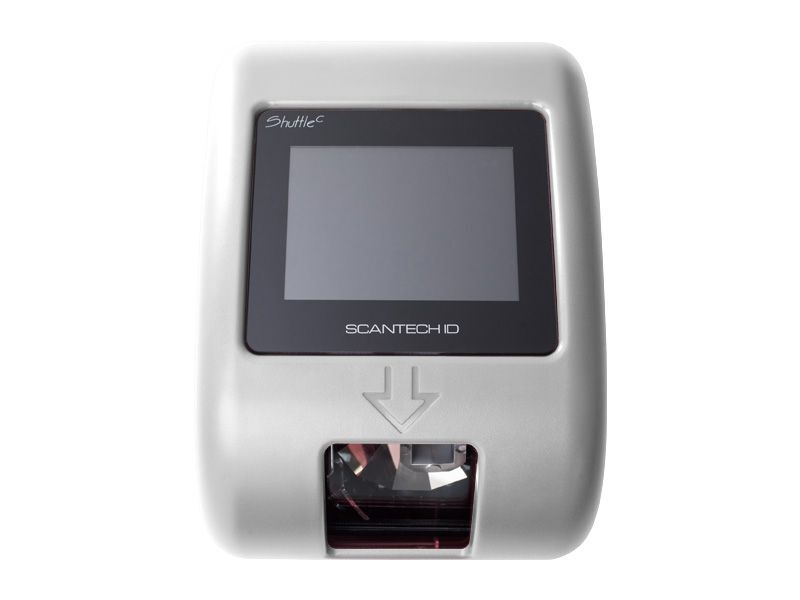

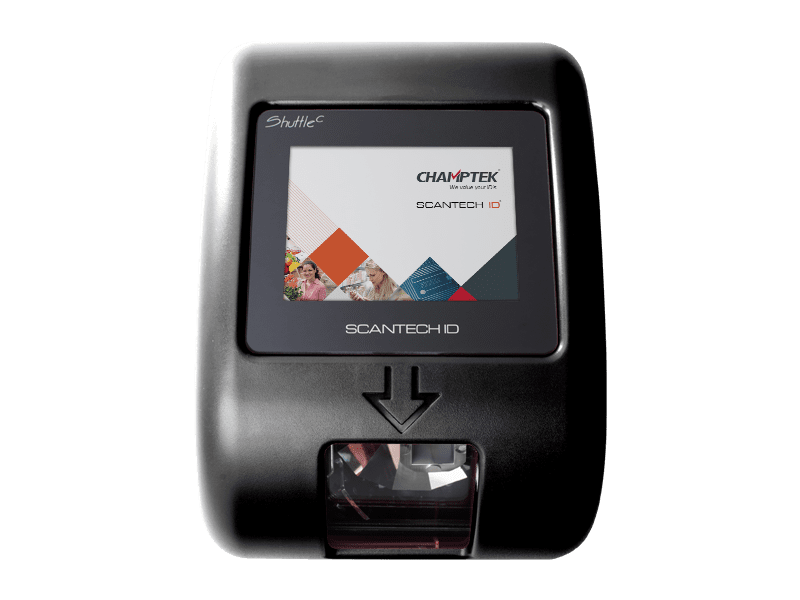

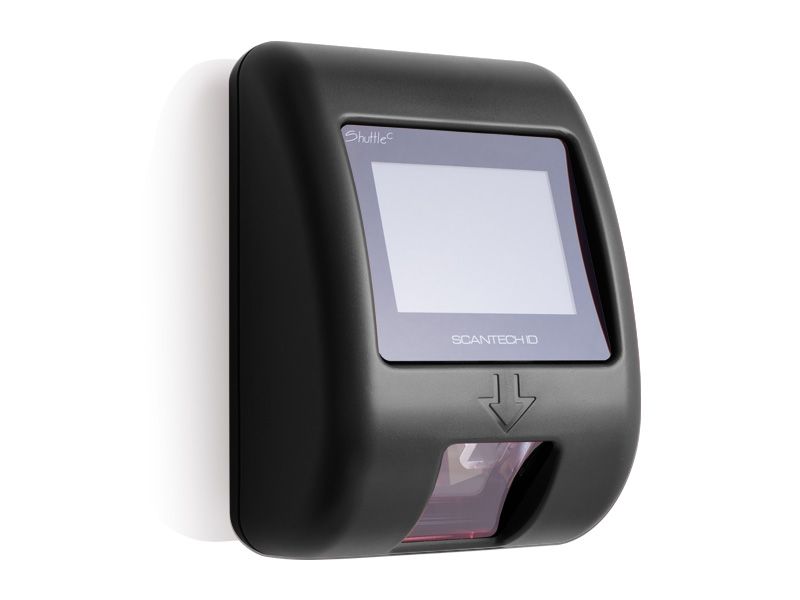

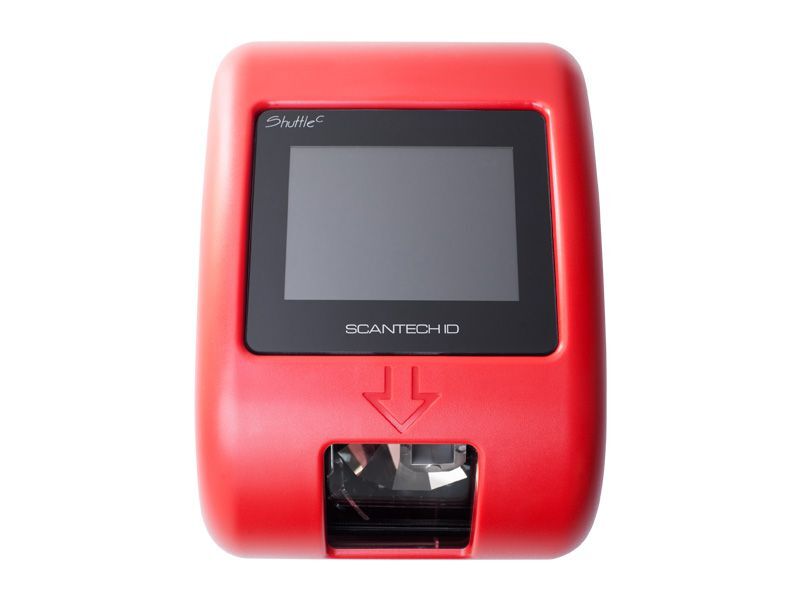

The SG15Colour is an entry level, small and attractive price checker, its features the latest technology. Interfacing is either through Wireless RF or hard wired Ethernet. The bright display has, depending on the font set, 3 or 5 lines and can display up to 20 characters per line , and there is a choice of bar code scanners between the entry level single scan line CCD scanner and the high performance 20 scan lines omni–directional laser scanner. With its auto-shuttle-emulation-like smart detection that offers superior decoding on a reading speed up to 500 scans per second and up to 250mm reading depth for the majority of 1D barcodes, the scanner delivers excellent decoding performance and more option with data input in 2D and Laser scanner engine. This flexibility of installation is enhanced by the optional Power–over–Ethernet, three available standard colours also greatly help to fit most interiors.

The SG15Colour is an entry level, small and attractive price checker, its features the latest technology. Interfacing is either through Wireless RF or hard wired Ethernet. The bright display has, depending on the font set, 3 or 5 lines and can display up to 20 characters per line , and there is a choice of bar code scanners between the entry level single scan line CCD scanner and the high performance 20 scan lines omni–directional laser scanner. With its auto-shuttle-emulation-like smart detection that offers superior decoding on a reading speed up to 500 scans per second and up to 250mm reading depth for the majority of 1D barcodes, the scanner delivers excellent decoding performance and more option with data input in 2D and Laser scanner engine. This flexibility of installation is enhanced by the optional Power–over–Ethernet, three available standard colours also greatly help to fit most interiors.



Internal Storage

external: USB flash disk (not inlcuded), Internal:4GB

Memory RAM

512MB

Operating Platform

Standard Linux (Kernel > 3.0)

Power Supply

DC 5V/2.0A power adapter or PoE

Dimensions (WxHxL)

131 x 182 x 95 mm

Image Format

BMP, GIF, JPEG, PNG

Audio Format

WAV

Display Size

3.5" (diagonal)

Brightness

450 nits

RESOLUTION

320 x 240 pixels (16M colors)

Speakers

Loudspeaker x 1

USB 2.0

1

LAN port 10/100 Mb

1 (for Ethernet or PoE)

RS232

1

Wired LAN

10/100Mb Ethernet (802.3), Power over Ethernet 802.3af (optional)

Wireless LAN

2.4GHzand 5GHz dual-band, 802.11a/b/g/n/ac

Encryption protocols

WPA, WPA-1/2 Personal & Enterprise

Scanner Type

1D omni-directional laser, 2D area imager (selectable), D Linear imager
