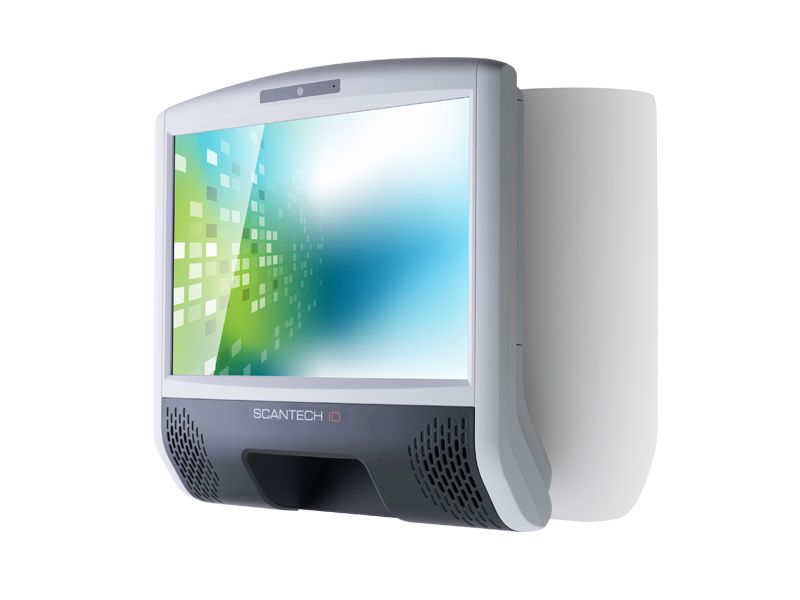

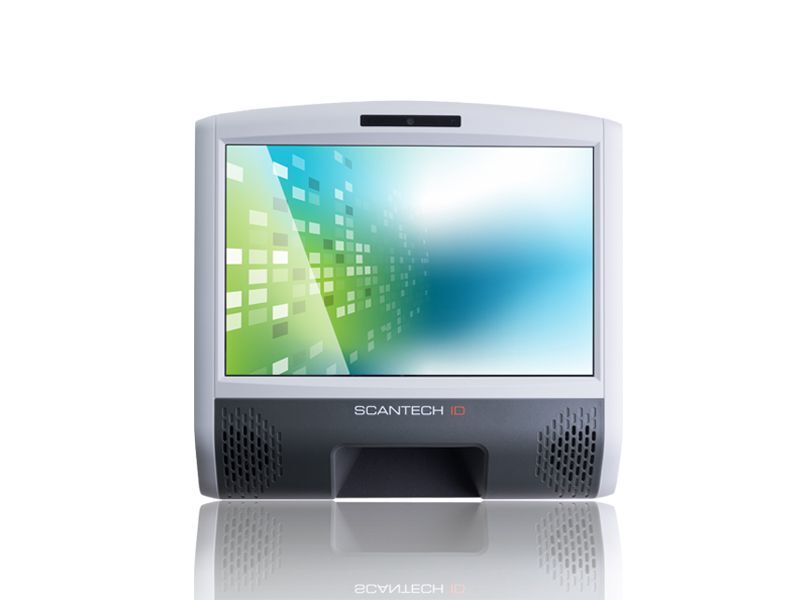

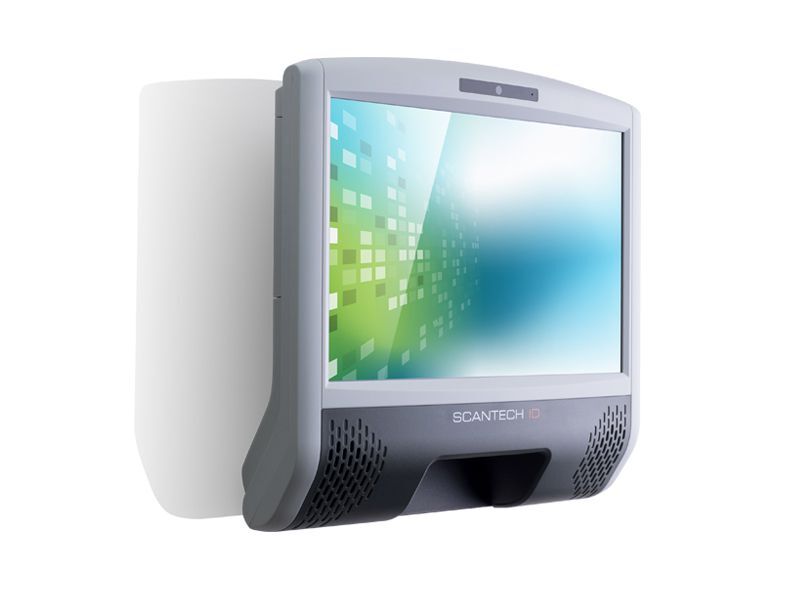

Price Checker SK-100


The SK-100 Lite is a multifunction scan kiosk designed for diversi ed applications in self-service, ID identi cation, information service, multimedia service, digital signage and your customized interactive applications and services in every environment of retail, transportation, medical care, hospitality and o ce building. SK-100 Lite is the best self-service kiosk solution with powerful hardware, open platform of Linux or Android, and exible hardware options in compact body. It comes with security protected web-based management tools allowing easy management from remote. SK-100 Lite brings productivity, e ciency and convenience to your business and service in good price budget.

The SK-100 Lite is a multifunction scan kiosk designed for diversi ed applications in self-service, ID identi cation, information service, multimedia service, digital signage and your customized interactive applications and services in every environment of retail, transportation, medical care, hospitality and o ce building.
SK-100 Lite is the best self-service kiosk solution with powerful hardware, open platform of Linux or Android, and exible hardware options in compact body. It comes with security protected web-based management tools allowing easy management from remote. SK-100 Lite brings productivity, e ciency and convenience to your business and service in good price budget.



Processor

ARM Dual-core / Quad-core CPU

Internal Storage

8G eMMC Flash

Memory RAM

1GB or 2GB LPDDR3

Operating Platform

Android 6.0, Linux 3.4

Power Supply

DC 12V/2A 24W Power Adaptor/Power over Ethernet (PoE) IEEE 802.3af (optional)/Power over Ethernet (PoE+) IEEE 802.3at (optional)

Dimensions (WxHxL)

252 x 238.15 x 71.5 mm

Weight

Approx. 1.25 kg

Image Format

BMP, GIF, JPEG, PNG

Audio Format

3GP, ASF, AVI, FLV, H.264, MKV, MOV, MP4, MPG, RM, TS, VOB, WMV

Video Format

MP3, WAV, WMA

Display Size

10.1" TFT LCD display

Brightness

450 nits

RESOLUTION

1280×800 pixels

Speakers

3Watt x 2(Stereo)

Touch Screen

Capacitive type

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

0°C to 40°C (32°F to 72°F)

Storage temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

up to 95% RH (non-condensing)

Ambient light

up to 100,000 Lux

Wired LAN

10/100Mb Ethernet (802.3), Power over Ethernet 802.3af (optional)

Wireless LAN

802.11 a/b/g/n/ac 2.4G/5G Dual Band (optional)

Encryption protocols

PSK and WPA Enterprise security, WPA

Application

Door Lock Control Application, Dual Display Multi-media Retail Solution

• • SPECIFICATION

• • • • • • • • • •

Indicators

LEDx2

VESA mounting

75 x 75 mm

Interface

GPIO x 2 (2-pin signal output, 2-pin power output), HDMIx1, LANx1(for Ethernet or PoE), RS232x1, USBx3
