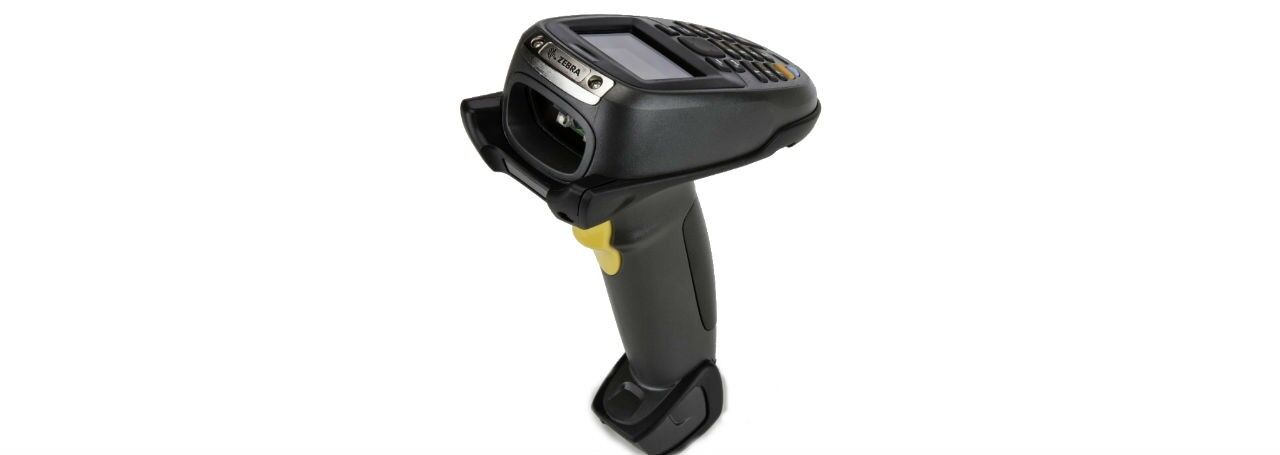

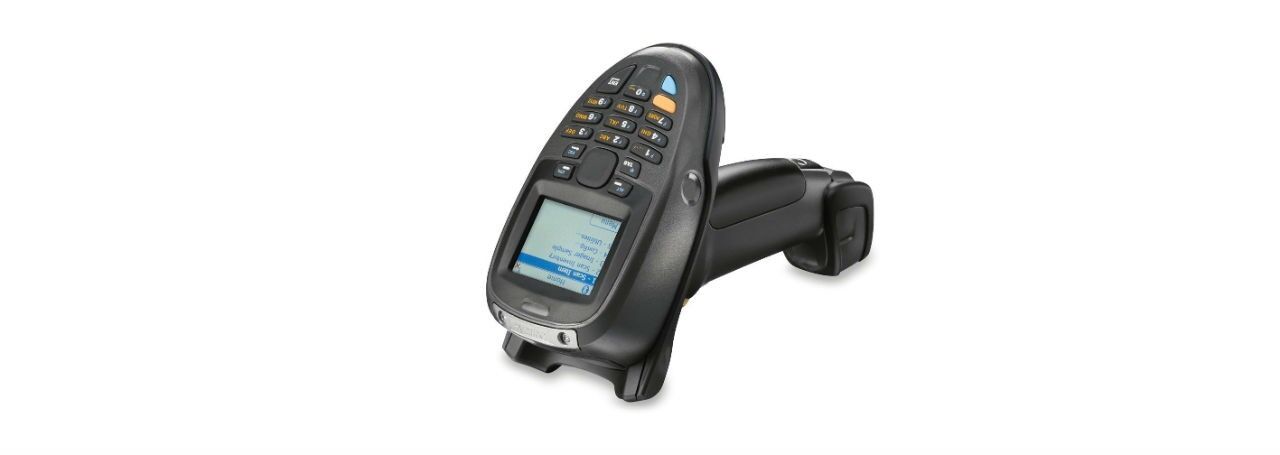

Rugged Scanner MT2000
THE INTELLIGENCE OF A MOBILE COMPUTER AND THE SIMPLICITY OF A SCANNER The MT2000 Series represents another industry first from Zebra — the marriage of the simplicity of a scanner with the brainpower of a mobile computer and an ultra-ergonomic gun-style form factor. The result is a handheld mobile terminal, a highly flexible device capable of streamlining many scan-intensive business processes in a wide variety of industries — from the front to back door in manufacturing plants, retail establishments, warehouses, hospitals and more. The easy-to-use affordable mobile terminal offers a unique hybrid design, able to function as both a scanner and a mobile computer throughout the business day. The MT2000 Series can be utilized right out of the box as a scanner — either tethered to a point of sale (POS), laptop or other computing system — or as a standalone wireless mobile computer capable of enabling inventory and other scan-intensive applications anywhere in the enterprise.
THE INTELLIGENCE OF A MOBILE COMPUTER AND THE SIMPLICITY OF A SCANNER The MT2000 Series represents another industry first from Zebra — the marriage of the simplicity of a scanner with the brainpower of a mobile computer and an ultra-ergonomic gun-style form factor. The result is a handheld mobile
terminal, a highly flexible device capable of streamlining many scan-intensive business processes in a wide variety of industries — from the front to back door in manufacturing plants, retail establishments, warehouses, hospitals and more. The easy-to-use affordable mobile terminal offers a unique hybrid design, able to function as both a scanner and a mobile computer throughout the business day. The MT2000 Series can be utilized right out of the box as a scanner — either tethered to a point of sale (POS), laptop or other computing system — or as a standalone wireless mobile computer capable of enabling inventory and other scan-intensive applications anywhere in the enterprise.
| Dimensions | 7.8 in H x 3.1 in. W x 5.0 in. D 19.8 cm H x 7.8 cm W x 12.7 cm D |
|---|---|
| Weight | 13.5 oz/378 gm |
| Display | 320 X 240 QVGA color graphic display |
| Battery | 2400 mAh Li-Ion @3.7Vdc |
| Interface | USB 2.0 Host and RS-232 |
| Keypad | 21-key single stroke numeric and shifted alpha, 4-way navigation button with 2 soft keys for application control |
| COLOR | Dark Gray |
| CPU | IntelXScale PXA270 @312MHz |
| Operating System | Microsoft® Windows CE 5.0 |
| Memory | 64MB/64MB |
| Application Development Environment | MCL Designer V 3.0 (MCL Client pre-loaded on both the MT2070 and the MT2090, Microsoft Windows client CE EMDK, pre-licensed on the MT2070 only), Zebra EMDK |
| Operating Temperature | -4° to 122° F/-20° TO 50° C |
| Storage temperature | -40° to 160° F/-40° TO 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | 6 ft./1.8 m drop to concrete over the operating temperature range |
| Tumble Specification | 250 3.2 ft./1 m tumbles (500 drops) |
| Sealing | IP54 |
| Electrostatic Discharge (ESD) | ±15kVdc air discharge, ±8kVDC direct/indirect discharge |
| Ambient Lighting Tolerance | Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux), Tolerant to typical artificial indoor and natural outdoor (direct sunlight ) lighting conditions |
| Options | 4 configurations: 1D Laser, 1D/2D Imager, 1D/2D HD Imager, DPM Imager |
| • • SYMBOLOGY DECODE CAPABILITY | • • • • • • • • • • |
| 1D | Chinese 2 of 5, Codabar/NW7, Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Discrete 2 of 5, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse), I 2 of 5 ( Interleaved 2 of 5 / ITF, IATA, ISBN (Bookland), UPC/EAN (UPCA/UPCE/UPCE1/ EAN-8/EAN-13/JAN-8/JAN-13 plus supplements, Zebra Plessey |
| 2D | Aztec (Standard, Inverse), Composite Codes, DataMatrix/ECC 200 ( Standard, Inverse), MaxiCode, MicroPDF417, PDF417, QR code ( Standard, Inverse, Micro), TLC 39 |
| Postal | Australian Postal, Japan Postal, Netherlands KIX Code, Royal Mail 4 State Customer, UK Postal, upu fics 4 State Postal, US Planet, US Postnet, USPS 4CB |
| • • WIRELESS LAN DATA COMMUNICATIONS | • • • • • • • • • • |
| Radio | Tri-mode IEEE® 802.11a/b/g |
| Output Power | 100mW US and international |
| Antenna | Internal |
| Data Rates | 802.11a – 54MBPS, 802.11b – 11MBPS, 802.11g – 54MBPS |
| Frequency Range | Country dependant: typically 2.4 to 2.5 GHz for 802.11b/g and 5.15 to 5.825GHz for 802.11a |
| Bluetooth | 2.4Ghz class I radio – 300 feet ( 91.44 m) open air |
| • • PERIPHERALS AND ACCESSORIES | • • • • • • • • • • |
| Cradles | 4-slot Ethernet cradle, Single slot charge only cradle, Single slot charge only fork lift cradle, 4-slot charge only cradle, Single slot multi-interface with Bluetooth cradle |
| Chargers | Four slot battery charger |
| Other Accessories | Belt holster, desk cup, Intellistand |
| Printer | Supports Zebra approved 3rd party printers |
| BRAND |
