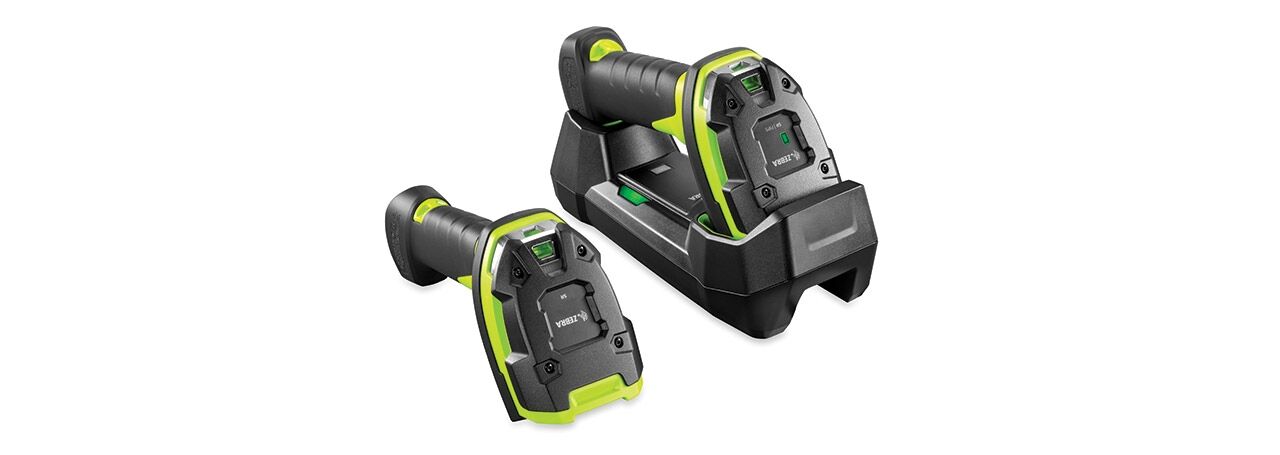

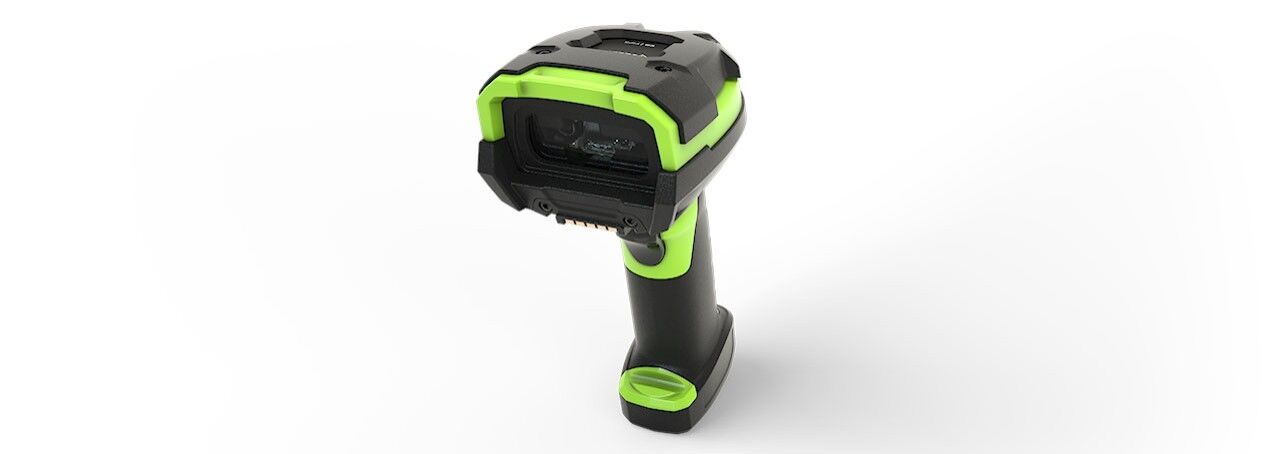

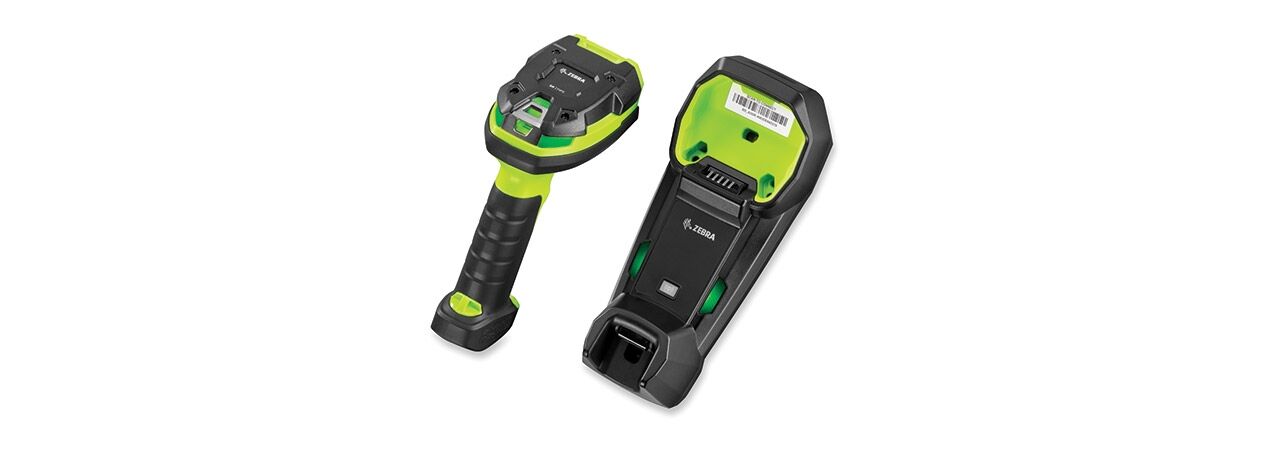

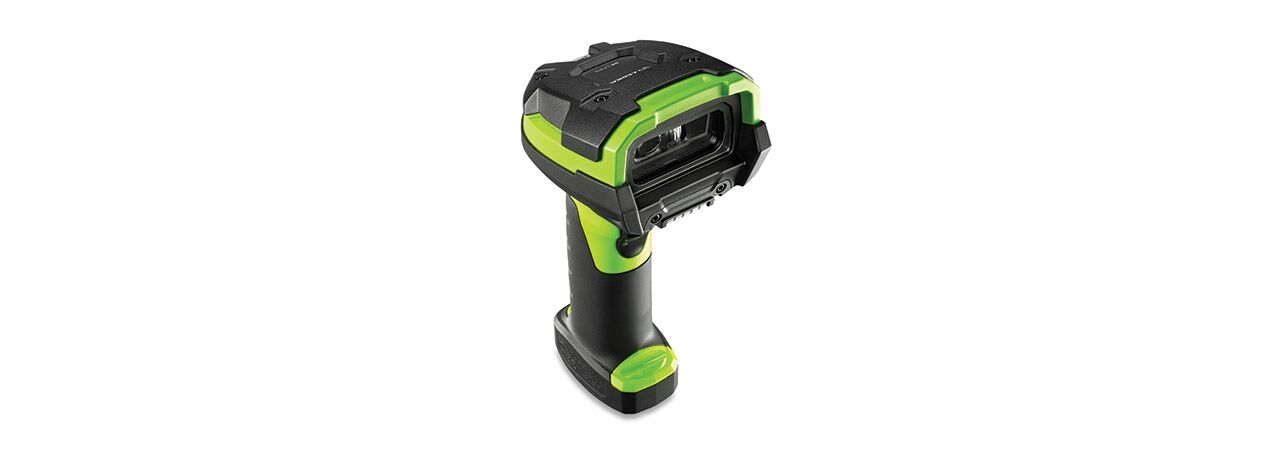

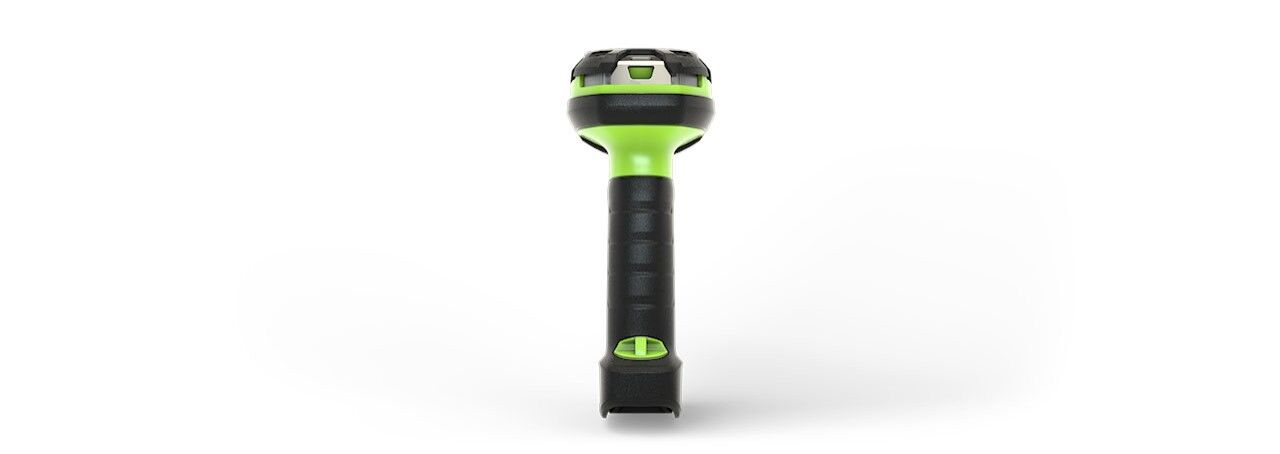

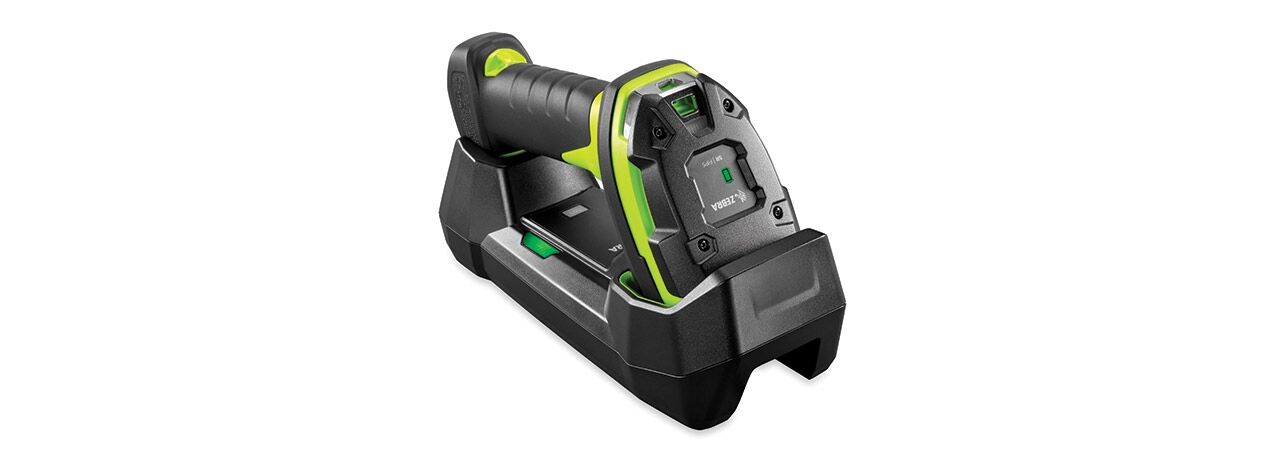

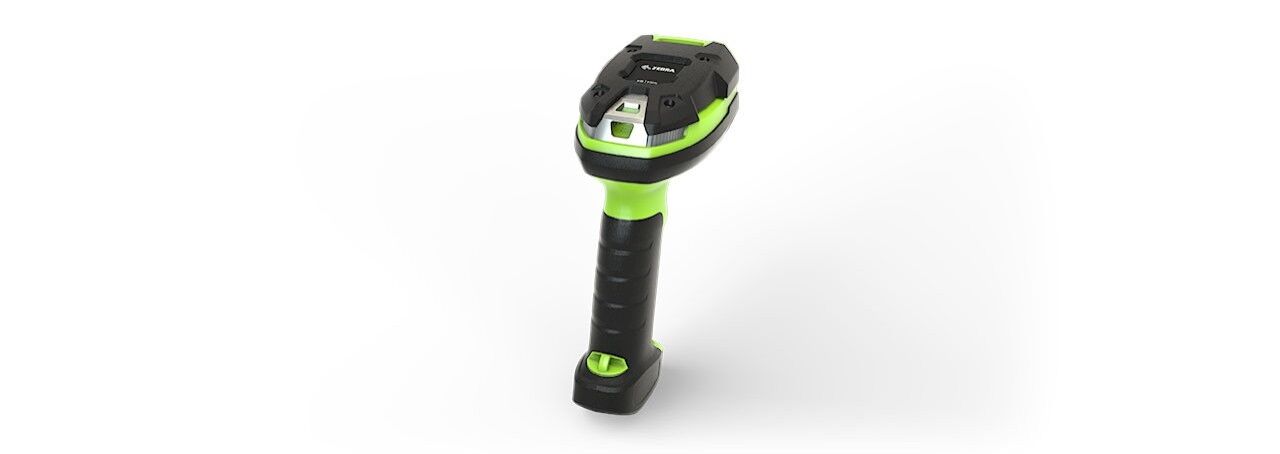

Ultra Rugged Scanner DS3608-HD-DS3678-HD

Zebra Products In Qatar

Every day, workers on the manufacturing plant floor scan thousands of barcodes on product components to ensure product quality. Their productivity depends on the quality of the scanner you put in their hands. When your workers need to capture the small and dense 1D and 2D barcodes common in electronics and medical equipment manufacturing, with the corded DS3608-HD and cordless DS3678-HD High Density imagers, you can give them the best — unmatched rugged design, unmatched scanning performance and unrivaled manageability. Advanced scanning delivers lightning-fast capture of any 1D or 2D barcode printed directly on product components or on labels in virtually any condition — or displayed on a screen. The ultra-rugged design is practically indestructible — ideal for punishing environments. The scanners couldn’t be easier and less time-consuming to deploy and manage. And when it comes to cordless technology, the DS3678-HD is loaded with Zebra-only features that put it in a class of its own. The DS3608-HD/DS3678-HD — the unstoppable performance you need to maximize workforce productivity and throughput, improve product quality, reduce production cycle times and prevent unplanned production line downtime.

Every day, workers on the manufacturing plant floor scan thousands of barcodes on product components to ensure product quality. Their productivity depends on the quality of the scanner you put in their hands. When your workers need to capture the small and dense 1D and 2D barcodes common in electronics and medical equipment manufacturing, with the corded DS3608-HD and cordless DS3678-HD High Density imagers, you can give them the best — unmatched rugged design, unmatched scanning performance and unrivaled manageability. Advanced scanning delivers lightning-fast capture of any 1D or 2D barcode printed directly on product components or on labels in virtually any condition — or displayed on a screen. The ultra-rugged design is practically indestructible — ideal for punishing environments. The scanners couldn’t be easier and less time-consuming to deploy and manage. And when it comes to cordless technology, the DS3678-HD is loaded with Zebra-only features that put it in a class of its own. The DS3608-HD/DS3678-HD — the unstoppable performance you need to maximize workforce productivity and throughput, improve product quality, reduce production cycle times and prevent unplanned production line downtime.



Dimensions

Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.6 cm W x 13.2 cm D, Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.6 cm W x 14.2 cm D

Weight

Corded: 10.9 oz./309 g, Cordless: 14.5 oz./411 g

Input Voltage Range

External power supply: 11.4 VDC min., 12.6 VDC max., Host powered: 4.5 VDC min., 5.5 VDC max.

Operating current

DS3608-HD (corded): 360 mA (RMS typical)

Standby Current

DS3608-HD (corded): 100 mA (RMS typical)

COLOR

Industrial Green

Supported Host Interfaces

Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP, Keyboard Wedge, RS232, USB

Battery

PowerPrecision+ 3100 mAh Li-Ion rechargeable battery

User Indicators

beeper, Direct Decode Indicator, LEDs, vibration

Scans per Full Charge

100,000+

Image Capture

Basic

Illumination

Two (2) warm white light LEDs

Aimer

655 nm laser

Imager Field of View

Horizontal: 31°, Vertical: 23°

Image Sensor

1,280 x 960 pixels

Minimum Print Contrast

15% minimum reflective difference

Skew/Pitch/Roll Tolerance

Skew: ± 60° Pitch: ± 60° Roll: ± 360°

Decode Capability

• • • • • • • • • •

1D

Base 32 (Italian Pharma), Codabar/NW-7, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI/Plessey, UPC/EAN

2D

Aztec, Chinese Sensible Code, Composite Codes, Data Matrix, DotCode, MaxiCode, Micro QR, MicroPDF417, PDF417, Postal Codes, QR code, TLC 39

IUID Support

Supports IUID parsing, the ability to read and separate IUID fields per application requirements

Operating Temperature

Corded: -22° F to 122° F/-30° C to 50° C, Cordless: -4° F to 122° F/-20° C to 50° C

Storage temperature

-40° F to 158° F/-40° C to 70° C

Humidity

5% to 95% non-condensing

Tumble Specification

5000 tumbles @ 3.3 ft. (1 m)

Drop Specification

Withstands multiple 8.0 ft./2.4 m drops to concrete

Sealing

Scanner: IP65 and IP67; FLB cradle: IP65

Electro-Static Discharge

Per EN61000-4-2, ±20 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge

Ambient Light Immunity

0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight)

UTILITIES AND MANAGEMENT

123Scan, Network Connect, Scanner Management Services (SMS), Scanner SDK

Bluetooth Radio

Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles

Data Rates

3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy

Bluetooth Range

Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)
