Zc300 card printer
,

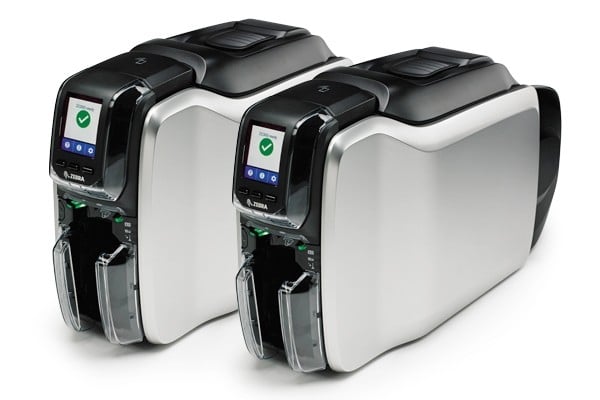

ZC300 Card Printer

Zebra Products In Qatar

FLEXIBLE AND SECURE CARD PRINTING WITH GROUND-BREAKING SIMPLICITY

Add to quote

No matter what type of card you need to print — from identity and access to membership, event and credit/debit cards — the ZC300 will help you do it better, faster and easier. Elegant engineering eliminates virtually all pain points associated with card printing. The result is push-button simplicity no matter what you are printing — single or dual-sided magnetic stripe or contactless cards, in color or black and white. And with a ground-breaking fits-everywhere design, you can get secure card printing wherever you need it.

Groundbreaking New Driver With a Graphical User Interface

The intuitive interface in the newly-designed driver makes it easier than ever to print cards. Settings are grouped logically into tabs where they are easily accessible with a click. A visual display of your card makes printing simple monochrome and complex color cards equally easy, allowing you to instantly see how your card looks and how setting changes impact card design — eliminating the time and cost to repeatedly print test cards.

A New Ingenious Card Feeder Handles Varying Card Thickness On-the-Fly

The card feeder instantly adjusts to the thickness of each card — no more adjusting for different card stocks.

Revolutionary New Hopper Design

The completely re-designed hopper makes loading and unloading cards easier than ever. With the saloon-style output doors, there’s nothing to open — just grab one card or the whole stack of cards. And the input and output hoppers have the same capacity, reducing the need to refill and empty the hoppers.

Fool-Proof Ribbon Changing

Changing a ribbon has never been so simple and uncomplicated — no instructions required. The newly designed ribbon door latch unlocks and opens in one motion. The unique door-handle style grip leaves no question about how to remove or insert the ribbon. And with embedded smartchips, you always know when to change the ribbon.

SKU: ZXP Series 1-1-1-1-1-1 Categories: , Tags: , , , , , , , , , , Brand: ,
• • SPECIFICATION

• • • • • • • • • •
STANDARD FEATURES

100 card covered feeder (30 mil), 16-character LCD operator control display, 300 dpi (11.8 dots/mm) print resolution, 45 card capacity output hopper (30 mil), Auto calibration of ribbon, Eco-Friendly Load-N-Go drop-in ribbon cartridges, Microsoft® Certified Windows drivers, Print Touch NFC tag for online printer documentation and tools, Two-year (unlimited passes) original printhead, Two-year warranty on printer, USB 2.0 connectivity, ZRaster™ host-based image processing
Printing

130 cph YMCKO, 545 cph monochrome, Dye-sublimation thermal transfer direct to card, Edge-to-edge printing on standard CR-80 media, Full color or monochrome printing, Single-sided printing
Ribbon

Black Monochrome: 1000 images/roll, White Monochrome: 500 images/roll, YMCKO: 100 images/roll
Card Thickness

10 – 40 mil
Card Size

2.12" (54 mm) x 3.38" (86 mm), CR-80, ISO 7810 format, Type ID-1
Card Material

PVC and PVC composite
• • ENVIRONMENTAL

• • • • • • • • • •
OPERATING CONDITION

Operating Humidity: 20% to 65% non-condensing, Operating Temperature: 60ºF to 86ºF/15ºC to 30ºC, Storage Humidity: 20% to 70% non-condensing, Storage Temperature: 23ºF to 131ºF/-5ºC to 55ºC
Media Storage

Do not store in direct sunlight, Humidity: 35% to 65% non-condensing, Temperature: 41ºF to 77ºF/5ºC to 30ºC
Electrical

Auto-switching single-phase AC power, FCC Class A, Frequency range: 47-63 Hz, Operating range: 90-132VAC and 190-264VAC RMS
Interface

Built-in 10/100 Ethernet — optional*, USB V2.0 (cable included) — standard
Length

9.3" (236 mm)
Width

7.9" (200 mm)
Height

13.0" (330 mm)
Weight

11.6 lbs (5.3 kg)
Microsoft Windows® Certified Printer Drivers Supported

Windows 7® (32 and 64 bit), Windows 8® and Win 8 Pro (32 and 64 bit), Windows Server 2008 (32 and 64 bit), Windows Server 2012 (64 bit), Windows Server® 2003 (32 bit), Windows Vista® (32 and 64 bit), Windows® XP (32 bit)
Optional Features

10/100 Ethernet connectivity, 30 mil cards only, high and low coercivity, Magnetic stripe encoder — ISO 7811 (new and pre-encoded); tracks 1, 2 and 3, Manual front card feeder bezel*, Single card cleaner rolling kit*, stripe down, Zebra OneCare extended product warranty programs
Product Warranty

For the complete warranty statement, please visit: www.zebra.com/warranty., The ZXP Series 1 is warranted against defects in workmanship and materials for a period of 2 (two) years from the date of shipment.
BRAND

Standard Features

  • 300 dpi (11.8 dots/mm) print resolution
  • 2 GB flash memory
  • Image size: 1006 x 640 pixels
  • Auto calibration of ribbon
  • USB 2.0 and Ethernet 10/100 connectivity
  • 100 card capacity auto-adjusting input hopper (30 mil)
  • 100 card capacity output hopper (30 mil)
  • Manual card feeding capability with LED bezel
  • Graphical color LCD
  • 3 Tricolor printer status indicator lights
  • Kensington® secure lock slot
  • Print Touch NFC tag for online printer help and documentation access
  • Printer host authentication
  • Data encryption
  • Three-year limited warranty on printer and printhead

Printing Specifications

  • Dye-sublimation thermal transfer direct to card print method
  • Full-color or monochrome printing
  • Single and dual-sided printing
  • Edge-to-edge printing on standard CR-80 media
    Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.
  • 900 cards/hour single sided monochrome
  • 200 cards/hour single-sided YMCKO
  • 140 cards/hour dual-sided YMCKOK
  • 450 cards/hour dual sided monochrome

Media Specifications

Supplies Specifications:
NOTE: The ZC300 printer is designed to work only with Zebra genuine ribbons.
Ribbons are included in a simple-to-load recyclable cartridge.
Ribbon Description Cartridge Image Count
YMCKO* 200
YMCKO* 300
YMCKOK* 200
½ YMCKO* 400
½ YMCKOKO* 250
KrO* 700
KdO* 700
Black Monochrome* 2000
Black Monochrome 1500
White Monochrome* 1500
Red Monochrome 1500
Blue Monochrome 1500
Gold Monochrome 1500
Silver Monochrome 1500
*Zebra intelligent technology automatically detects and authenticates ribbon

  • Cleaning roller is included with each ribbon
  • Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)
Card Compatibility:
NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended.

  • Card Thickness: 10-40 mil*
  • Card Size: CR80 ISO 7810 ID-1 format, CR79*
  • Card Material: PVC and PVC composite
  • Adhesive back and writable back cards

*Note: Spot color or monochrome printing recommended only on >20 mil thick cards and CR79 cards.

Operating Characteristics

Operating Temp. 59º F to 95º F/15º C to 35º C
Storage Temp. 23º F to 158º F/-5º C to 70º C
Operating Humidity 20% to 80% non-condensing
Media Storage — Temperature: 41º F to 77º F/5º C to 25º C
— Humidity: 35% to 65% non-condensing
Electrical
  • Auto-switching single-phase AC power
  • Operating range: 90-132VAC and 190-264VAC RMS
  • Frequency range: 47-63 Hz
  • FCC Class A

Physical Characteristics

Dimensions Single Sided
10.2 in. H x 6.2 in. W x 15.1 in. D
258 mm H x 157 mm W x 383 mm D
Dual Sided
10.2 in. H x 6.2 in. W x 18.4 in. D
258 mm H x 157 mm W x 468 mm D
Weight Single Sided
8.8 lbs (4.0kg)
Dual Sided
9.7 lbs (4.4 kg)

Communications and Interface Capabilities

USB 2.0
 Standard
Built-in 10/100 Ethernet Standard
802.11ac Optional

Encoding Options and Specifications

Magnetic stripe encoder — ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; stripe down and stripe up with duals-sided printers) *

*Field upgradeable options

Printer Drivers

Microsoft Windows Certified Windows Server 2008 (32 and 64 bit),
Windows 7 (32 bit and 64 bit)
Windows 8 and Windows 8.1
(32 bit and 64 bit compatible)
Windows Server 2012 (64 bit)
Windows 10 (32 bit and 64 bit)
Windows Server 2016

Windows drivers include:

  • Color coded printer status indicators for the operator
  • Black panel extraction and controls for specialty ribbon panels with image preview
  • Configuration utility to limit access by operators to change image quality and printer settings
  • Advanced printer configuration, security settings and diagnostics capabilities
Linux Ubuntu 16..X (64 Bit)
Apple MAC OS X 10.13.X (64 bit)
Please see www.zebra.com for an up-to-date listing of supported systems.
