Zq300/zq300 plus mobile printer
,

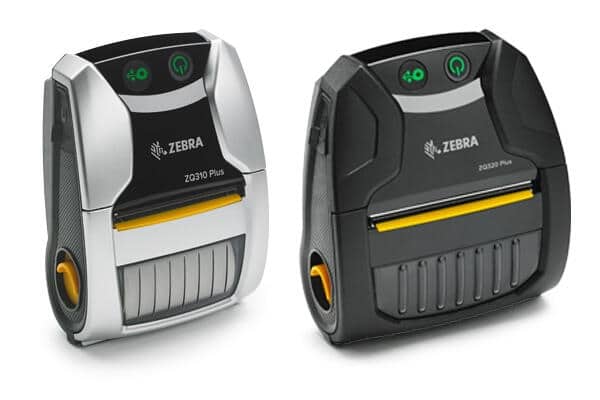

ZQ300/ZQ300 Plus Mobile Printer

Zebra Products In Qatar

CLASS-LEADING MOBILE PRINTING VERSATILITY, DURABILITY AND REMOTE MANAGEMENT

Add to quote

Mobile printing capabilities in your retail store directly impact customer service quality and associate productivity. Time spent by your field workers writing receipts could be time spent making more customer visits. The Zebra ZQ300/ZQ300 Plus Series printers let your associates do it all. With receipt printing, associates can ring up sales anywhere in the store. With on-the-spot printing of labels, store associates can complete markups, markdowns and shelf label audits faster and more accurately. Choose the dark grey color scheme with scuff resistant exterior adding extra protection for demanding environments and outdoor use or the more contemporary silver and black color scheme—perfect for design conscious retail customers. The ZQ300 Plus Series delivers the same features and specifications as the ZQ300 Series, using redesigned electronics for long-term product continuity and availability. The ZQ300 Plus printers require new, different firmware and drivers.

One Printer—Dual Capabilities: Receipts and Labels

Now, one printer can do double duty: the same printer your store associates use for point of sale transactions can also print labels for shelves, item markdowns and markups.

Print Inside—and Outdoors

With IP54 sealing and support for water-resistant media, you can count on the indoor and outdoor model to print legible text and scannable barcodes, even in the rain or snow.

Global Media Support

The ZQ300/ZQ300 Plus Series accommodates international metric and US media widths.

Less Waste with Linerless Media

Go greener with linerless media. Workers no longer need to manage used liner material throughout their shift. And since linerless media has up to 60% more labels per roll, it requires fewer roll changes, improving printer uptime—and worker productivity.

SUPERIOR INDUSTRIAL DESIGN

Sleek on the Outside, Superior Zebra Design on the Inside

The lightweight design ensures user comfort all shift long. The slim profile makes it easy to use in tight spaces. And while its contemporary look fits into the most design-conscious retail store, you get the durability for which Zebra is famous.

SKU: ZQ300 Series-1-1-2-1 Categories: , Tags: , , , , , , , Brand: ,
• • SPECIFICATION

• • • • • • • • • •
Operating System

Link-OS®
Print Method

Direct Thermal
RESOLUTION

203 dpi/8 dots per mm
Memory

128MB RAM, 256MB Flash (48 MB User Available)
Battery

Li-Ion 2280 mAh, 7.2V, PowerPrecision+
Maximum Print Width

ZQ310 printer: 48 mm/1.89 in., ZQ320 printer: 72 mm/2.83 in.
Maximum Print Speed

Up to 4 ips (100 mm/s)
Media Sensors

BlackBar, Gap, Media Door Open, Media Out
Programming Languages

CPCL, ZPL. The ZPL programming language ensures full compatibility with many other Zebra printers.
Cutter

Tear bar
Print Direction

Horizontal and vertical
Dimensions

ZQ310: 130 mm L x 93.5 mm W x 49.5 mm H | 5.12 in. L x 3.68 in. W x 1.95 in. H, ZQ320: 130 mm L x 117.7 mm W x 49.5 mm H | 5.12 in. L x 4.63 in. W x 1.95 in. H
Volume

ZQ310 printer: 600 cc/36.6 cubic in., ZQ320 printer: 757 cc/46 cubic in.
Weight

ZQ310 printer: 0.37 kg /0.81 lbs, ZQ320 printer: 0.43 kg/0.95 lbs
Media Width

ZQ310: 58 mm ±0.75 mm/2.28 in. ±0.02 in.; spacers available to support 50.8 mm ±0.75 mm/2 in. ±0.02 in., ZQ320: 80 mm ± 0.75 mm/3.15 in. ±0.02 in.; spacers available to support 76 mm ± 0.75 mm/3 in. ±0.02 in.
Maximum Roll Outside Diameter

40 mm/1.57 in.
Media Holder

Drop-in fixed media width (clamshell)
Media Thickness

0.06 mm/0.0023 in. to 0.16 mm/0.0063 in.
Media Type

Direct thermal: receipt paper, labels, linerless labels
Minimum Receipt Length

12.5 mm/0.49 in.
Maximum Receipt Length

Unconstrained in line mode
Label Counter

Odometer
• • ENVIRONMENTAL

• • • • • • • • • •
Operating Temperature

-15° to +50° C/5° to +122° F
Storage temperature

-20° to 60° C/-4° to +140° F
Charging Temperature

0° to 40°C/0° to +104° F
Operating Humidity

10% to 90% non-condensing
IP Rating

IP54
Drop Specification

1.5 m/5 ft. tested over operating temp. range
Tumble Specification

500 free falls from 1 m/3.3 ft.
Vibration

MIL STD 810
COMMUNICATION AND INTERFACE CAPABILITIES

• • • • • • • • • •
WLAN¹

802.11ac
WLAN Security

801.1X (with WEP, WPA or WPA2) EAP- FAST, AES encryption, EAP- TTLS, EAP-TLS, LEAP, PEAP, TKIP, WEP, WPA, WPA2
WLAN Features Supported

802.11d, 802.11i, 802.11r, EAP Fast Session resumption, Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), Simultaneous WAN & BT 4.0, Support for Ad Hoc mode
Internet Protocols over WLAN

DHCP/BootP, FTP/Mirror, HTTP, LPD, SMTP / POP3, SNMP, Telnet, UDP/TCP
Bluetooth¹

Dual Radio (802.11ac + BT BR/EDR LE4.0)
USB 2.0

Client, Type- C™ connector
NFC

Passive NFC tag
Host OS Supported

Android 2.3, 4.0, 4.1, iOS 5, iOS 6, iOS 7, iOS 10, Windows compatibility: (CE .NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows printer driver and/or our Mobile SDK controls and other applications)
User Interface

LEDs
Barcode Symbologies

• • • • • • • • • •
Barcode Ratios

1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
1D

2 and 5 digit add-on, Codabar/NW-7, Code 128, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2-of-5, UCC/EAN-128, UPC-A, UPC-E
2D

Aztec, Data Matrix, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39
FONTS AND GRAPHICS

CPCL (Bitmap), CPCL/ZPL (Scalable), ZPL
BRAND

Physical Characteristics

Dimensions ZQ310/ZQ310 Plus:
130 mm L x 93.5 mm W x 49.5 mm H
5.12 in. L x 3.68 in. W x 1.95 in. H
ZQ320/ZQ320 Plus:
130 mm L x 117.7 mm W x 49.5 mm H
5.12 in. L x 4.63 in. W x 1.95 in. H
Volume ZQ310/ZQ310 Plus: 601.7 cc/36.7 cubic in.
ZQ320/ZQ320 Plus: 757.4 cc/46.2 cubic in.
Weight with battery ZQ310/ZQ310 Plus: 0.37 kg/0.81 lbs
ZQ320/ZQ320 Plus: 0.43 kg/0.95 lbs

Printer Specifications

Operating System Link-OS® printer operating system
Print Method Direct Thermal
Resolution 203 dpi/8 dots mm
Memory 128MB RAM, 256MB Flash (48 MB User Available)
Battery Li-Ion 2280 mAh, 7.2V, PowerPrecision+
Maximum
Print Width		 ZQ310/ZQ310 Plus printer: 48 mm/1.89 in.
ZQ320/ZQ320 Plus printer: 72 mm/2.83 in.
Maximum
Print Speed		 Up to 4 ips (100 mm/s)
Media Sensors Black mark
Gap (optional)
(bar sensor is for the top side marks only)
Programming
Languages		 CPCL, ZPL. The ZPL programming language ensures full compatibility with many other Zebra printers
Cutter Tear bar
Print Direction Horizontal and vertical

Media Characteristics

Media Width ZQ310/ZQ310 Plus printer:
58 mm +0.75 mm/2.28 in. +0.02 in.; spacers available to support 50.8 mm +0.75 mm/2 in. +0.02 in.\

 ZQ320/ZQ320 Plus printer:
80 mm +0.75 mm/3.15 in. +0.02 in.; spacers available to support 76 mm +0.75 mm/3 in. +0.02 in.
Maximum Roll Outside Diameter 40 mm/1.57 in.
Media Holder Drop-in fixed media width (clamshell)
Media Thickness 0.05334 mm / 0.0021 in. to 0.16 mm/0.0063 in.
Media Types Direct thermal: receipt paper, linerless labels
Minimum Receipt
Length		 12.5 mm/0.49 in.
Maximum Receipt
Length		 Unconstrained in line mode
Label Counter Odometer

Operating Characteristics

Operating Temp. -15° to +50°C/5° to +122° F
Storage Temp. -20° to 60°C/-4° to +140° F
Charging Temp. 0° to 40°C/0° to +140° F
Operating Humidity 10% to 90% non-condensing
IP Rating IP54
Drop Specification 1.5 m/5 ft. tested over operating temp. range
Tumble Specification 500 free falls from 1 m/3.3 ft.
Vibration MIL STD 810
Agency Approvals FCC Part 15 and EN 55022 Class B limits; FCC, IC, and European Standards for Bluetooth and 802.11a/b/g/n; T V and IEC 60950 standard for Safety; NOM, C-Tick, VCCI, S-Mark, PSE, CCC, MII Bluetooth SIG-registered and Wi-Fi certified
Validation Testing The ZQ300 and ZQ300 Plus Series printers have been tested with industry-leading applications to verify interoperability and improve overall optimization with validated terminals. Zebra Independent Software Vendor (ISV) Partners create industry leading software solutions to solve business problems. Zebra works closely with these ISVs to integrate printing and other capabilities of Zebra products. Zebra-validated applications can be found at
www.zebra.com/validation

Communication And Interfaces Capabilities

Bluetooth BR/EDR, LE 4.2
USB 2.0 Client, Type- C™ connector
NFC Passive NFC tag
Host OS Supported Windows compatibility: (CE .NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows printer driver and/or our Mobile SDK controls and other applications) Android 2.3, 4.0, 4.1, iOS 5, iOS 6, iOS 7, iOS 10
User Interface LEDs

WLAN (Optional)

WLAN 802.11ac
WLAN Security TKIP, AES encryption, WPA, WPA2, 801.1X (WPA or WPA2) EAP- FAST, EAP- TTLS, EAP-TLS, PEAP, LEAP
WLAN Features
Supported		 802.11r, 802.11d, 802.11i, Simultaneous WAN & BT 4.2, Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), or EAP Fast Session resumption
Internet Protocols over WLAN UDP/TCP, DHCP/BootP, FTP/Mirror, HTTP, SMTP / POP3, Telnet, LPD, SNMP

Barcode Symbologies

Barcode Ratios 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
Linear Barcodes Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13, 2 and 5 digit add-on, Interleaved 2-of-5, UCC/EAN 128, UPC-A, UPC-E,2 and 5 digit add-on
2D Barcodes 2D Barcodes: Aztec Code, Data Matrix, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39

Fonts/Graphics

CPCL/ZPL (Scalable) Latin 9, Arabic, Cryillic, Hebrew, SourceCodePro, NotoMono (CJK), Hans (CJK), Thai (Angsana)
CPCL (Bitmap) Standard fonts: 25 bitmapped, smooth-scalable (CG Triumvirate™ Bold Condensed), scalable SourceCodePro, scalable NotoMono (CJK), scalable Hans (CJK), Optional fonts: Downloadable bitmapped and scalable fonts, *Contains UFST  from Agfa Monotype Corporation
ZPL Standard fonts: 25 bitmapped, smooth-scalable (CG Triumvirate™ Bold Condensed), scalable SourceCodePro, scalable NotoMono (CJK), scalable Hans (CJK), Optional fonts: Downloadable bitmapped and scalable fonts, *Contains UFST from Agfa Monotype Corporation

Printer Supplies

For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer.

Included In The Box

Printer, battery (Li-Ion 2280 mAh), belt clip, USB cable (Type C to Type A), Quick Start Guide, registration card, Safety Guide, Regulatory Guide

Print DNA Software

Durable printers are essential, but it’s the software inside that will keep them in action. That’s why we built Zebra Print DNA into our printers. It’s a suite of software capabilities that give you the ability to optimize printer performance over their entire lifecycle even as your business needs evolve.
