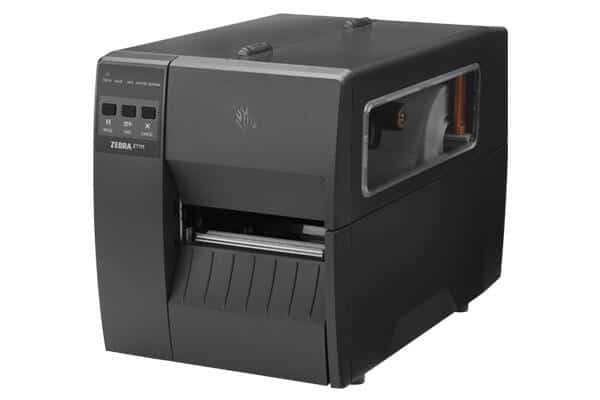

ZT111 INDUSTRIAL PRINTER


Make the smart choice with the ZT111, the entry-level printer that’s easy on your budget and gives you more. More uptime, more processing power, more tools and more years of use.



When your labeling needs demand more than a desktop printer can deliver and you’re looking to add an industrial printer, you shouldn’t have to compromise between budget and quality. With Zebra’s ZT111, you don’t have to. Get just the right features you need at the right price to match your needs – today and tomorrow. Stay productive with fast print speeds, built-in intelligence and time-saving tools to make work easier. And, futureproof your investment with upgradeability.

Make the smart choice with the ZT111, the entry-level printer that’s easy on your budget and gives you more. More uptime, more processing power, more tools and more years of use.

Save Time and Effort for IT

Your IT team is busy enough. The ZT111 makes it simple. It’s easy to integrate into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without having to change label formats or rewrite code. Make training simple with the easy-to-use 3-button interface with 5 status icons.

Print More for Longer

Eliminate replacing printers that don’t last. Get the enduring quality you expect and deserve from Zebra at a price that matches your budget, knowing this printer will outperform others for years to come. Be confident knowing you’re backed by Zebra, the #1 leader in barcode printing.

Maximize Your Workspace

Save workspace with the ZT111’s small footprint, compact dimensions, and bi-fold door that reduces the height needed to open it.

THE RIGHT CAPABILITIES TO MOVE BUSINESS FORWARD

Innovative Processing to Power Future Printing

The ZT111 includes an all-new architecture to process more jobs at once and evolve with advancing technology. So, it’s a smart choice now and later.

Standard Features

• Print methods: direct-thermal or thermal-transfer
• Construction: metal frame and plastic enclosures
• Bi-fold media door with large clear window
• Side-loading supplies path for simplified media and ribbon loading
• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
• Five color LEDs for quick printer status
• Three button keypad
• Communications: USB 2.0 and RS-232 Serial port, 10/100 Ethernet, and USB Host
• ENERGY STAR® certified
• Bluetooth® Low Energy
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner

Physical Characteristics

DimensionsZT111 Closed: 17 in. L x 9.5 in. W x 11 in. H
432 mm L x 241 mm W x 279 mm H
WeightZT111: 17 lbs./7.7 kg
*Dimensions are for the base model printer. Consult your sales representative for specifics regarding other configurations.

Printer Specifications

Resolution203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
Memory256 MB SDRAM memory
256 MB on-board linear Flash memory
Maximum Print Width4.09 in./104 mm
Maximum Print Speed10 ips (200 dpi)
6 ips (300 dpi)
Media SensorsTransmissive and reflective sensors
Maximum Print Length203 dpi: 157in./3988 mm
300 dpi: 73in./1854 mm

Media Characteristics

Minimum Label and
Liner Length
Tear mode: 0.7 in/18 mm
Cutter mode: 1 in/25 mm
Peel mode: 0.5 in/13 mm
Media Width0.75 in./19.4 mm to 4.50 in./114 mm
Media Roll Size8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core
6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core
Media Thickness0.003 in./0.076 mm to 0.010 in./0.25 mm
Media TypesContinuous, die-cut, notch, black mark

Ribbon Characteristics (Thermal-transfer option only)

Standard Length1,476 ft./450 m
Width2 in./51 mm to 4.33 in./110 mm
Core1.0 in./25.4 mm

Operating Characteristics

Operating Temp.Thermal transfer: 40ºF to 105ºF/5º to 40ºC
Direct thermal: 32ºF to 105ºF/0º to 40ºC
Storage/Transportation
Temperature
-40ºF to 140ºF/-40º to 60ºC
Operating Humidity20% to 85% non-condensing
Storage Humidity5% to 85% non-condensing
ElectricalUniversal auto-ranging (PFC-compliant) power supply 100-240 VAC; 50-60 Hz
ENERGY STAR certified
Agency ApprovalsIEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, and BIS

Print DNA™ Basic Software

This printer is supported by our Print DNA Basic suite of software capabilities to get your printer up and running quickly, deliver a dependable print experience and enable your printer to evolve with your business needs. Print DNA features may vary by model, and some features may require a license. For more information, please visit
www.zebra.com/printdna

Firmware

ZBI 2.0™ — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more.
ZPL and ZPL II™ — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
EPL and EPL2™— Eltron Programming Language simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)

Barcode Symbologies

Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)

Fonts and Graphics

7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed*) Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM® Code Page 850
Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands including boxes and lines 64 MB user available Flash memory storage for downloadable objects; 32 MB user-available SDRAM

Options and Accessories

Communication
• 802.11ac Wi-Fi option card
• 10/100 Ethernet option card
Media Handling
• Peel — a front-mount, passive-peel with no take-up spindle
• Cutter — a front-mount guillotine cutter
Keyboard Display Unit
• ZKDU™ keyboard display units for stand-alone printing applications
