ADVERTEASER PAGER

04. LRS

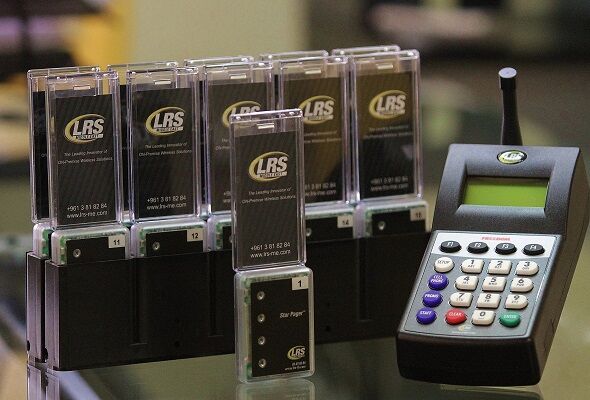

The Adverteaser pager from LRS was completely designed with the customer in mind. To minimize breakage, LRS chose to bypass standard acrylic and manufacture its pagers by using durable Lexan material, which is the strongest plastic in the industry. To prevent customer tampering, LRS engineers then decided to design the Adverteaser with no exposed screws. Furthermore, unlike other paddle pagers on the market that are made using two connected parts that break easily, the Adverteaser’s One-Piece construction eliminates breakage and makes it extremely durable.

The Adverteaser pager from LRS was completely designed with the customer in mind. To minimize breakage, LRS chose to bypass standard acrylic and manufacture its pagers by using durable Lexan material, which is the strongest plastic in the industry. To prevent customer tampering, LRS engineers then decided to design the Adverteaser with no exposed screws. Furthermore, unlike other paddle pagers on the market that are made using two connected parts that break easily, the Adverteaser’s One-Piece construction eliminates breakage and makes it extremely durable.



• • SPECIFICATION

• • • • • • • • • •

Operating Environment

Humidity: <95% (non-condensing), Operating temperature range: 32° – 113°F (0° – 45°C), Transport temperature range: -4° – 140°F (-20° – 60°C)

Power

Battery charger power supply: 12 VDC, NiMH 2.4V 400mAH 1/2 AA, Warning: Use only LRS supplied power supply

Paging Transmitter

Antenna: Internal antenna, Modulation: FSK (Frequency Shift Keying), OTA Baud rate: 625

Paging Receiver

Frequency Range: 413 MHz – 470MHz (See ordering information below)

Supported Paging Protocols

Proprietary LRS protocol

User Interface

4 red LEDs, Audio transducer, Vibration motor

Regulatory Certifications

• • • • • • • • • •

United States and Territories

47 CFR FCC Part 15 Subpart B (Class B), ANSI C63.4:2009

European Community

EC 300-220, EN 301 489-2: 2002, EN 61000-4-2, EN 61000-4-3, ETS 300 224: 1998

Dimensions

2.2 x 7.1 x .75 (height) inches

Weight

0.25 lb

Ordering Information

RX-AT4-434 (Algeria, Bahrain, Egypt, Jordan, Kuwait, Morocco, Oman, Qatar and Tunisia), RX-AT4-467 (Cyprus, Iraq, Iran, Lebanon, Libya, Saudi Arabia, Turkey, U.A.E and Yemen)

Frequency

434.000MHz (Algeria, Bahrain, Egypt, Jordan, Kuwait, Morocco, Oman, Qatar and Tunisia), 467.750MHz (Cyprus, Iraq, Iran, Lebanon, Libya, Saudi Arabia, Turkey, U.A.E and Yemen)
