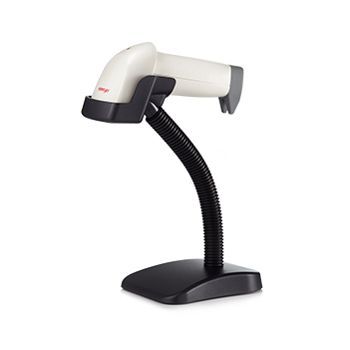

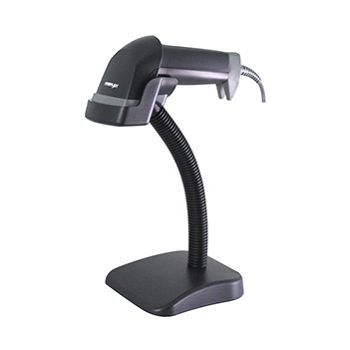

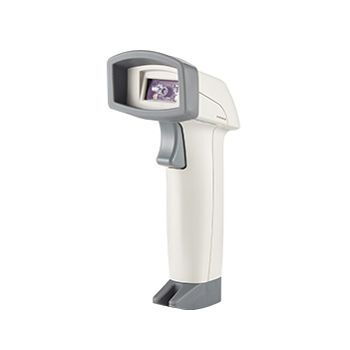

Barcode Scanner CD-3201U

Posiflex Products

The CD-3201 Series is a handheld barcode scanner featuring a high performance scan engine that makes reading both 1D and 2D barcodes extremely fast, reliable, and more affordable than ever.

The CD-3201 Series is a handheld barcode scanner featuring a high performance scan engine that makes reading both 1D and 2D barcodes extremely fast, reliable, and more affordable than ever.



• • SPECIFICATION

• • • • • • • • • •

Form Factor

Handheld 2D Barcode Scanner

Light Source

White light LED x 2

RESOLUTION

640 (H) x 480 (V) pixels

Depth of Field

40 – 120 mm (15 mils QR code)

Scan Method

CMOS array sensor

Scan Angle

Horizontal: 38°, Vertical: 28.9°

Scan Rate

Up to 100 fps

1D

Codabar/NW-7, Code 11, Code 128, Code 39, Code 93, GS1 DataBar (RSS), GS1-128 (EAN-128), IATA, Industrial 2 of 5, Interleaved 2 of 5, ISBN-ISSN-ISMN, JAN/UPC/EAN including add on, Matrix 2 of 5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey

2D

Aztec Code, Aztec Runes, Chinese Sensible Code, Codablock F, Composite Codes, Data Matrix (ECC200), Maxi Code (mode 2~5), Micro QR Code, MicroPDF417, Passport MRZ (OCR-B), PDF417, QR code

Barcode

Chinese Post, Intelligent Mail Barcode, Korean Postal Authority Code, POSTNET

Interface

USB (CD-3201U)

DIMENSION (W X D X H IN MM)

63 x 163 x 79

WEIGHT (N. W. IN KG)

191.5

Options

Scanner stand (ST-8000)
