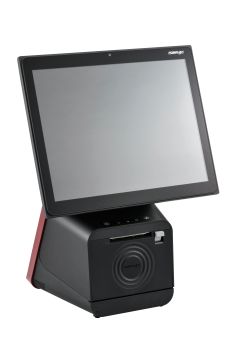

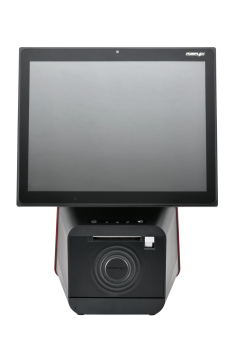

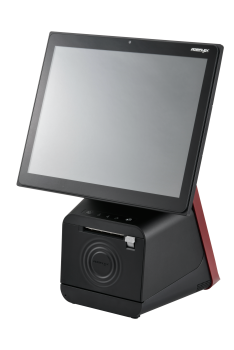

BT-3015
BT-3015 Posiflex’s Mozart BT Series achieves harmony in structure, function, and aesthetics. It combines thin, lightweight components with cleverly shaped curves, delivering a sleek, harmonious, and elegant design.
-
All-In-One POS, Point Of Sale, Touchscreen POS Terminals
BT-3015
BT-3015 Posiflex’s Mozart BT Series achieves harmony in structure, function, and aesthetics. It combines thin, lightweight components with cleverly shaped curves, delivering a sleek, harmonious, and elegant design.
SKU: HS-3514W-1-2-3-1-2-1
Brilliant Modular Advancements
|
User-Friendly Ergonomic Designs
|
Adopting oTP LCD
|
Versatile Accessories
|
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| Processor | Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache |
| System Memory | DDR3L SO-DIMM x 1, max. 8GB |
| Storage Device | SATA storage x 2 (one for HDD/SSD; the other for 1” SSD only) |
| Power Supply | 24V/60W |
| Built In Printer | 3” detachable printer w/auto cutter, 250 mm/sec (max.) |
| OS Support | Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7 |
| • • DISPLAY & TOUCH | • • • • • • • • • • |
| LCD | 14" TFT LCD |
| RESOLUTION | 1366 x 768 |
| TOUCH | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| • • I/O & EXPANSION | • • • • • • • • • • |
| SERIAL PORT | 3, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports |
| STANDARD USB PORT | USB 2.0 x 4 |
| PARALLEL PORT | Yes |
| LAN PORT | 10/100/1000 Mb x 1 |
| DISPLAY PORT | VGA x 1, 12V support for Posiflex monitors |
| CR PORT | 1, control 2 CR via optional Y-cable (printer driven) |
| PS/2 PORT | Yes |
| Audio | Line-out x 1 |
| EXPANSION SLOT | Mini-PCIe slot x 1 |
| • • PHYSICAL DIMENSION | • • • • • • • • • • |
| DIMENSION (W X D X H IN MM) | 371.5 x 198 x 473 |
| Weight | 5.8 |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| OPERATING CONDITION | 0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD) |
| STORAGE CONDITION | -20°C – 70°C, 10%RH – 90%RH |
| • • BUILT-IN OPTIONS | • • • • • • • • • • |
| MSR | 3 tracks ISO or JISII (HID/VCOM selection) |
| Finger Print Sensor | Optical type |
| WIFI | Mini-PCIe WiFi/BT module |
| RFID READER | Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable) |
| Scanner | 2D barcode scanner |
| iBUTTON | Yes (cannot coexist with FPU) |
| 4G COMMUNICATION | Single SIM slot |
| BRAND | |
| ZT Series | ZT-3716E, ZT-3716 |
| System Configuration | |
|---|---|
| Processor | Intel Elkhart Lake J6412 (4C4T, Burst Frequency 2.60 GHz, Processor Base Frequency 2.0 GHz) |
| System Memory | 2 x DDR4 SO-DIMM, max. 32GB |
| Storage Device | 2 x M.2 2280 (support SATA signal) |
| RAID Function | N/A |
| Intel vPro Support | N/A |
| TPM Support | TPM 2.0 |
| Power Supply | W/O Printer: 24V/60W W/Printer: 24V/120W |
| OS Support | Windows 10 IoT LTSC 64 bit Windows 11 IoT GAC |
| Display & Touch | |
|---|---|
| LCD | 15″ LCD (typical 400 nits) |
| Resolution | 1024 x 768 |
| Touch | PCAP supporting multi-touch |
| I/O Expansion | |
|---|---|
| Serial Port | 2, 1 x DB9 + 1 x RJ50, 5V/12V support on all COM ports |
| Standard USB Port | 2, USB 3.0 x 2 |
| PoweredUSB Port | 2 x 12V (option 24V) |
| LAN Port | 2 x 2.5Gbe |
| Display Port | 1 x USB-C (support POSIFLEX 2nd monitor) |
| CR Port | 1, control 2 x cash drawer, support 24V CR |
| Audio | 2 x internal 2W speaker, 1 x MIC |
| Internal Expansion Slot | 1 x M.2 2230 for Wi-Fi 6/BT 5.2 |
| USB-C Port | 1 |
| Physical Dimension | |
|---|---|
| Dimension (W x D x H in mm) | 345 x 465 x 247 |
| Weight (N. W. in kg) | 7.4 |
| Environmental | |
|---|---|
| Operating Condition | 0°C – 40°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
| Built-in Options |
|---|
| Factory Option | |
|---|---|
| Camera | 1MP Wide angle(FF) |
| Attachment Options | |
|---|---|
| POS Monitor | PCAP touch TFT LCD: 15″ PCAP touch TFT LCD: 15.6″ (Landscape / Portrait) |
| Accessories | BA-103 i-BTN BA-104 2D BCR BA-301 RFID/MSR/FPU 3 in 1 BA-303 MSR / RFID / i-Butto |
| BCR | CD-3301U、CD-3301UB、Handheld stand |
| Printer | PP-7900BT |
