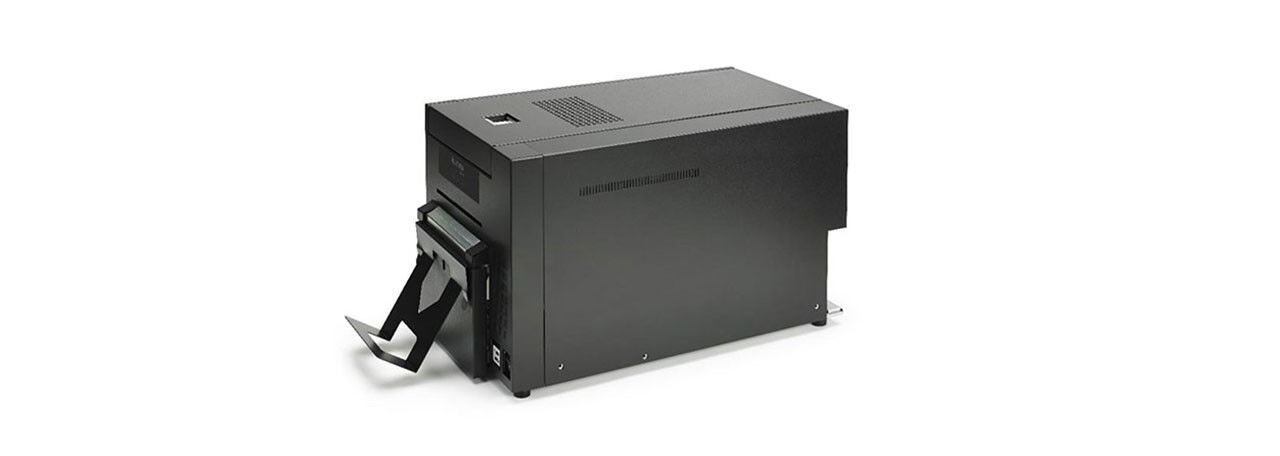

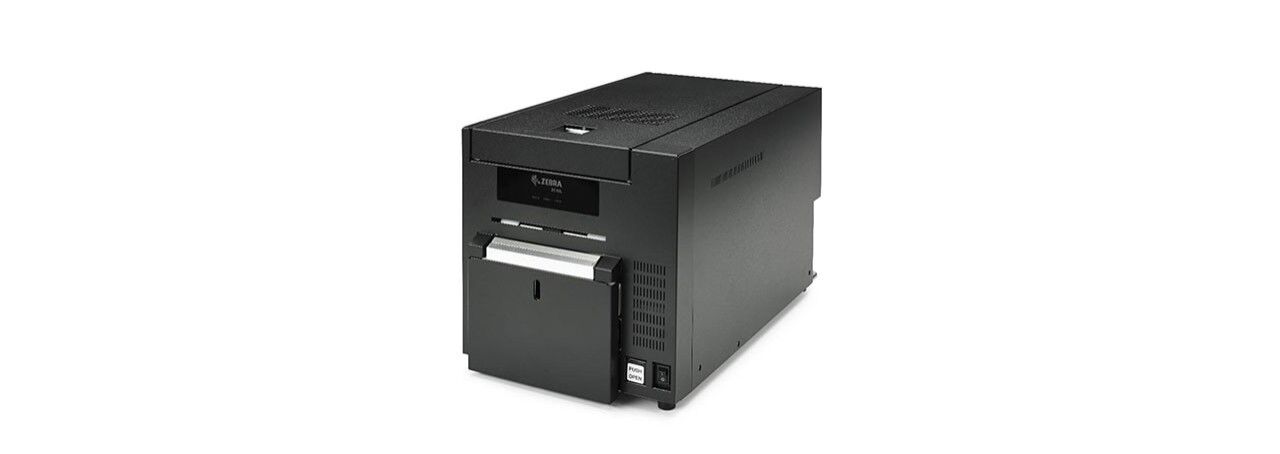

Card Printer ZC10L

Zebra Products In Qatar

Designed especially to meet the needs of the Hospitality market, Zebra’s ZC10L™ is the only large-format, direct-to-card printer that can print full, edge-to-edge color cards in one printing process. Produce custom, oversized badges, sporting event and concert tickets/passes, special event and festival badges/passes on the spot in full color—in one print pass. Avoid the hassle of ordering and inventorying pre-printed cards for various levels of guest access at events. Instead, print photo-quality cards edge-to-edge at the point of entry. Since cards are printed on demand, you can customize them for individual guest needs. This adds personalization, reduces waste and eliminates the risk of running out of a specific type of card should attendance change. And, with 300 dpi print quality, the ZC10L enables you to produce cards with exceptional photo-quality images, rich colors and crisp text.

Designed especially to meet the needs of the Hospitality market, Zebra’s ZC10L™ is the only large-format, direct-to-card printer that can print full, edge-to-edge color cards in one printing process. Produce custom, oversized badges, sporting event and concert tickets/passes, special event and festival badges/passes on the spot in full color—in one print pass. Avoid the hassle of ordering and inventorying pre-printed cards for various levels of guest access at events. Instead, print photo-quality cards edge-to-edge at the point of entry. Since cards are printed on demand, you can customize them for individual guest needs. This adds personalization, reduces waste and eliminates the risk of running out of a specific type of card should attendance change. And, with 300 dpi print quality, the ZC10L enables you to produce cards with exceptional photo-quality images, rich colors and crisp text.



• • SPECIFICATION

• • • • • • • • • •

Printing

Direct to card — dye diffusion, Edge-to-edge printing, Full color or monochrome printing, Max print speed single-side YMCKO 195 cph*, Max print speed single-sided K mono 360-410 cph*, Photo-quality images, Single-sided printing

STANDARD FEATURES

2 year / 20,000 card warranty on printer, 200 card (24 mil) capacity feeder, 300 dpi print resolution, 64 MB memory standard, 70 card capacity output hopper, Microsoft® Windows® drivers, Multi-status LED operator display, USB connectivity, Zebra CardStudio 2.0 card design and issuance software (30 day trial)

Options and Accessories

10/1000 Ethernet connectivity External Print Server, Zebra OneCare Service program

Software

CardStudio Classic version 1.3 or later card design and issuance software — single user license key, Windows 10, Windows 7, Windows 8.1

Driver Features

Auto sensing of ribbon type, Remaining card count on ribbon

Supplies

Intelligent technology uses RFID tags to authenticate and automate color ribbon and monochrome ribbon.

Ribbon

Monochrome black: 2000 images/roll, YMCO 4-panel: 400 images/roll

Card Thickness

24 mil

Card Size

5.5" x 3.46" (140 mm x 88 mm)

Card Material

PVC

Smart Cards

HF, UHF, Dual HF/UHF

Interface

10/100 Ethernet connectivity (External Print Server Option), USB 2.0, USB supports plug-and-play printer identification

Power Supply

90V~264V AC and 48 – 62 Hz, Auto-switching AC power

Height

11.42" / 290 mm

Width

10.94" / 278 mm

Depth

19.09" / 485 mm

Weight

46.3 lbs. / 21 kg

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Operating: 50º F / 10º C to 95º F / 35º C, Shipping: -40º F / -40º C to 140º F / 60º C, Storage: -4º F / -20º C to 131º F / 55º C

Operating Humidity

Operating: 20% to 80% inclusive, non-condensing, Shipping: 10% to 95% inclusive, non-condensing, Storage: 10% to 95% inclusive, non-condensing
