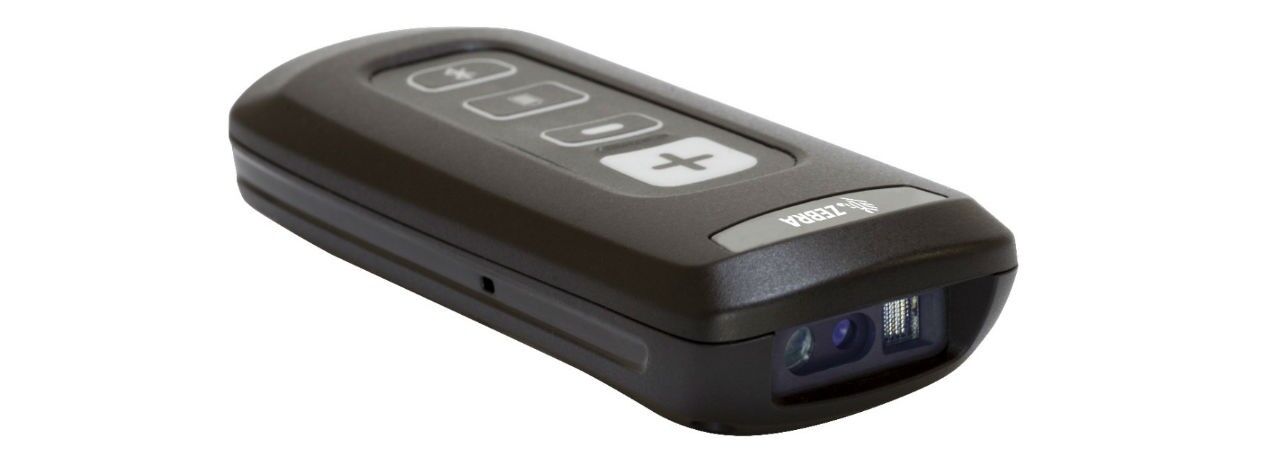

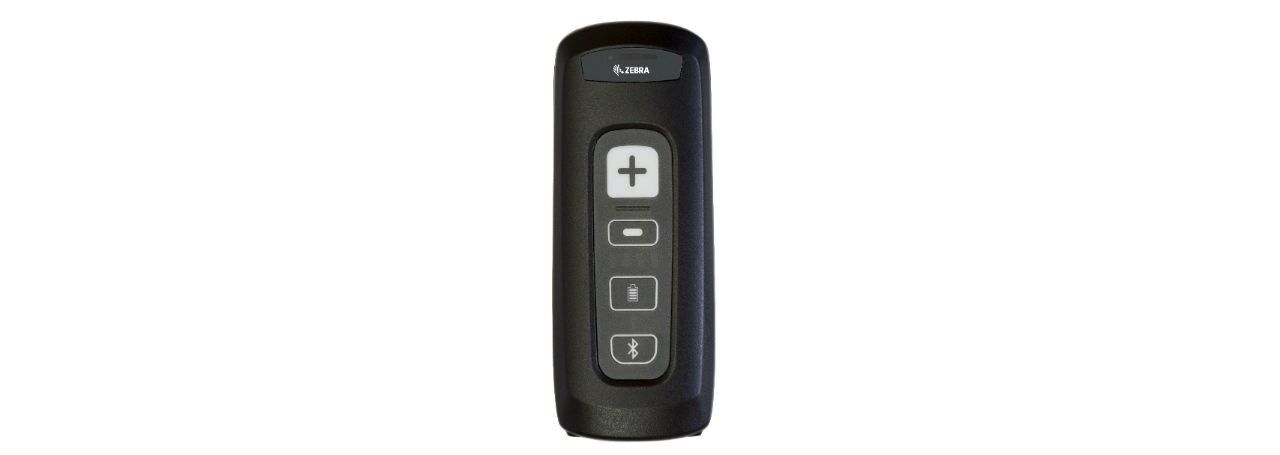

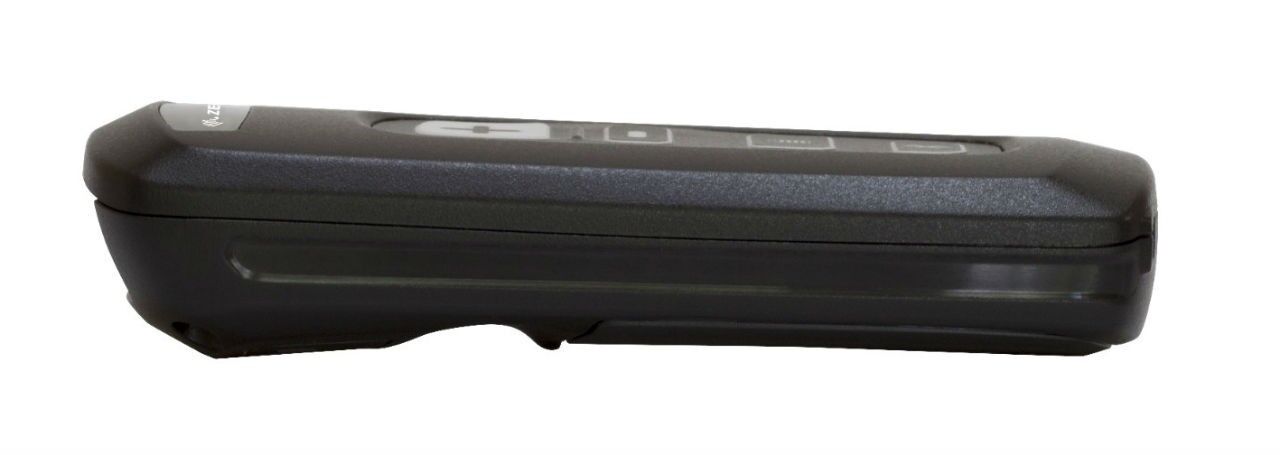

Companion Scanner CS3000 Series

Zebra Products In Qatar

The innovative Zebra CS3000 Series enables enterprises to easily implement 1D laser scanning where either mobility or the cost and size of a traditional scanning device is an inhibitor. The tiny device is affordably priced and fits in a pocket or on a lanyard. The CS3000 can be utilized in standalone mode for the batch scanning of bar codes, while the CS3070 offers batch mode as well as real-time bar code data transmission to a host application via a wireless Bluetooth® connection to smartphones, laptops and more. Managing the data in batch mode is easy. Once connected to a host, the batch data can be configured for automatic transfer to an application. Since captured scans are placed in a user-definable standard ASCII file type, the information can be easily utilized to populate order forms, spreadsheets and inventory lists.
The result is a new level of affordability for 1D scanning — and the ability to streamline, error proof and simplify more business processes.

The innovative Zebra CS3000 Series enables enterprises to easily implement 1D laser scanning where either mobility or the cost and size of a traditional scanning device is an inhibitor. The tiny device is affordably priced and fits in a pocket or on a lanyard. The CS3000 can be utilized in standalone mode for the batch scanning of bar codes, while the CS3070 offers batch mode as well as real-time bar code data transmission to a host application via a wireless Bluetooth® connection to smartphones, laptops and more. Managing the data in batch
mode is easy. Once connected to a host, the batch data can be configured for automatic transfer to an application. Since captured scans are placed in a user-definable standard ASCII file type, the information can be easily utilized to populate order forms, spreadsheets and inventory lists. The result is a new level of affordability for 1D scanning — and the ability to streamline, error proof and simplify more business processes.



Dimensions

3.41 in. L x 1.95 in. W x .87 in. H 8.65 cm L x 4.95 cm W x 2.2 cm H

Weight

With batteries: 2.45 oz./70 gm

Scan Engine

SE955/SE965 scan engine, single line

Memory

512MB Flash

Memory Capacity

Over 1 million barcodes (UPC with time date stamp)

LEDs

Scan LED (Green, Red, and Amber) and Bluetooth® LED (Blue)

Button

enable Bluetooth (RF scanners only), remove scan (batch mode only), Scan

Batch

Scans recorded with optional time/ date stamp

Open Bluetooth

Real time wireless data transmission

Drop Specification

4 ft./1.21 m drop to tiled linoleum over concrete, 6 drops per 6 sides, across the operating temperature range

Tumble Specification

250 cycles @ 1.64 ft./0.5 m (500 drops)

Operating Temperature

32° to 104° F /0° to 40° C

Storage temperature

-40° to 158° F /-40° to 70°C

Humidity

10 to 95% noncondensing

Ambient Lighting Tolerance

Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 ft. candles (4,844 Lux), Tolerant to typical artificial indoor and natural outdoor (direct sunlight ) lighting conditions

Battery

780 mAh Lithium ion

Charge Time

3 hours

Battery Life

Batch – 24 hours use or 8,500 scans (6 scans per minute on full charge), Standby – 3 months Bluetooth – 12 hours use or 4,250 scans (6 scans per minute on full charge)

Power Consumption

5V, 500mA max while charging

Decode Capability

1D symbologies

Interfaces Supported

Bluetooth: CS3070, USB (Mini jack): CS3000 and CS3070

Real Time Clock

A date/time stamp can be recorded with each bar code scanned (Batch mode operation only)

Batch Communication

USB 2.0

Bluetooth Radio

Bluetooth, Class 2, Version 2.1 + Enhanced Data Rate (EDR)

Bluetooth Range

30 ft./10 m

Bluetooth Profiles

HID keyboard wedge and Serial Port Profile (SPP)
