Desktop Label Printer XL5-40

Bixolon Products in Qatar

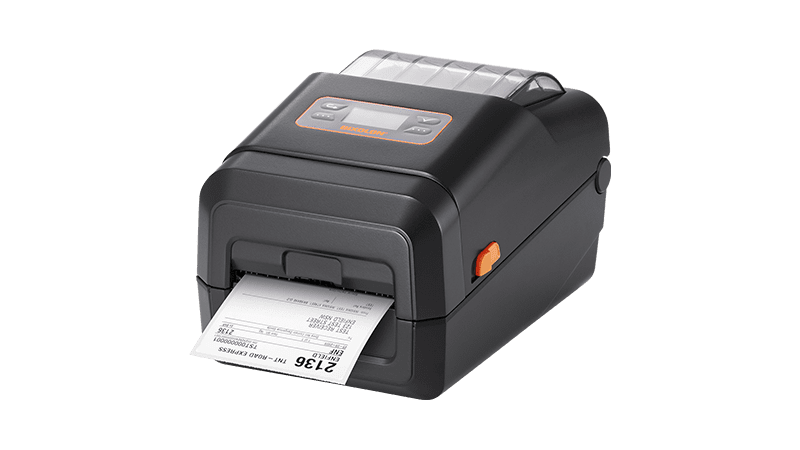

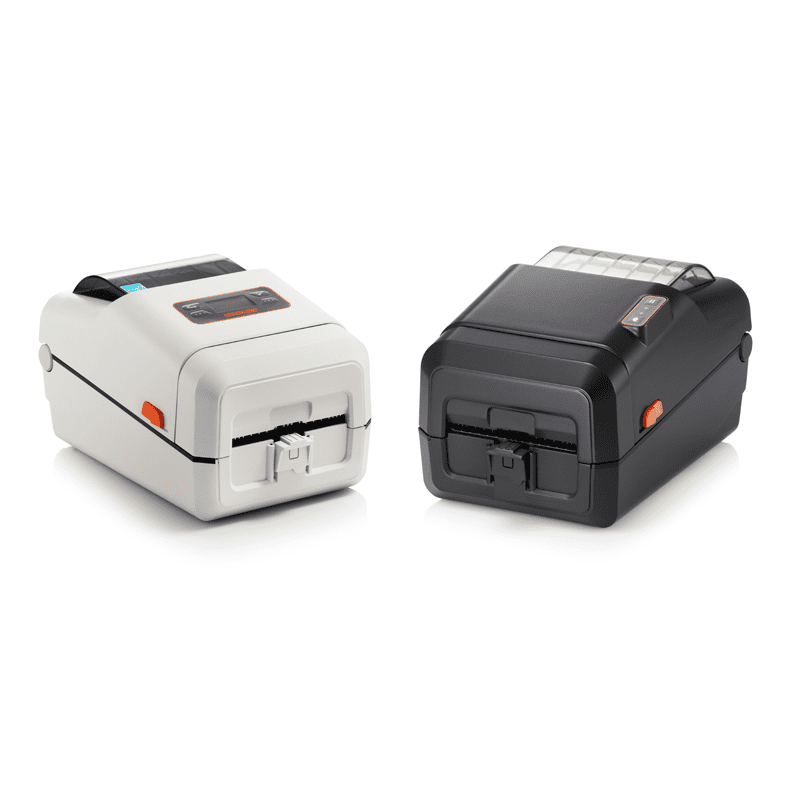

The XL5-40 is the world’s first 4-inch exclusive linerless label printer providing Extreme Reliability, Eco-Friendly and Cost-Efficient labelling. The XL5-40 is equipped with anti-jamming, anti-curling and long-lasting two platen rollers, specifically designed paper path and guillotine cutting system with a peel-off sensor, Taken Sensor™. Multiple linerless labels certified by BIXOLON and BIXOLON’s own supply, B-linerless™ will optimize its consistent operations. Using this greener and safer linerless label solution, will reduce TCO through saving media, storage and transportation expenses while reducing downtime and environmental impact. Supporting optional LCD display with 203dpi and 300dpi print resolution options. Alongside the world’s fastest printing speed up to 6ips (152mm/sec). Less maintenance required with easy to replace auto cutter, print head and platen rollers.

The XL5-40 is the world’s first 4-inch exclusive linerless label printer providing Extreme Reliability, Eco-Friendly and Cost-Efficient labelling. The XL5-40 is equipped with anti-jamming, anti-curling and long-lasting two platen rollers, specifically designed paper path and guillotine cutting system with a peel-off sensor, Taken Sensor™. Multiple linerless labels certified by BIXOLON and BIXOLON’s own supply, B-linerless™ will optimize its consistent operations. Using this greener and safer linerless label solution, will reduce TCO through saving media, storage and transportation expenses while reducing downtime and environmental impact. Supporting optional LCD display with 203dpi and 300dpi print resolution options. Alongside the world’s fastest printing speed up to 6ips (152mm/sec). Less maintenance required with easy to replace auto cutter, print head and platen rollers.



• • SPECIFICATION

• • • • • • • • • •

Print Method

Direct Thermal

Print Speed

XL5-40: Up to 6 ips (152 mm/sec), XL5-43: Up to 5 ips (127 mm/sec)

PRINT RESOLUTION

XL5-40: 203dpi, XL5-43: 300dpi

PRINT WIDTH

XL5-40: Up to 108 mm, XL5-43: Up to 105.7 mm

PRINT LENGTH

30 ~ 1,000 mm

SENSOR

Black mark(Adjustable), Gap(Fixed), Head open, Paper Taken Sensor

Media Type

Linered : Gap, Black Mark, Fan-Fold, Linerless : Continuous, Black Mark

Media Width

20 ~ 114mm

Media Roll Size

Up to 127 mm

Media Thickness

0.09 ~ 0.20mm

Inner Core

38.1mm

DIMENSION (W X D X H IN MM)

186 x 287.7 x 173 mm

Weight

2.8kg (6.17lb.)

Electrical

50/60Hz, EnergyStar Certified, External Power Adaptor 100-240V AC

Display

Optional: FSTN LCD (200 x 100 pixels), Standard: None

Memory

Optional: ① 64 MB SDRAM(LPDDR), 128 MB Flash ② 256 MB SDRAM(LPDDR) , 256 MB Flash, Standard: 64 MB SDRAM-DDR2, 128 MB Flash

Interface

• • • • • • • • • •

Standard Interface

USB2.0 + USB Host

Optional Interface

USB2.0 + USB Host + Bluetooth², USB2.0 + USB Host + Serial + Ethernet³, USB2.0 + USB Host + Serial + Ethernet³ + Bluetooth², USB2.0 + USB Host + Serial + Ethernet³+WLAN¹, USB2.0 + USB Host + WLAN¹

WLAN¹

Built-in type, 802.11a/b/g/n (5GHz and 2.4 GHz)

Bluetooth²

Built-in type, V4.2 Classic / LE, Class 1, MFi certified

Ethernet³

10/100Mbps

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Operating: 0 ~ 40℃ (32 ~ 104℉), Storage: -20 ~ 60℃ (-4 ~ 140℉)

Operating Humidity

Operating: 10 ~ 80% RH, Storage: 10 ~ 90% RH

Emulation

BPL-E™ (EPL), BPL-Z™ (ZPLII), SLCS™

Driver / Utility

Bartender Ultralite for BIXOLON, Label Artist-II™, Linux / Mac CUPS Driver, Utility Program, Virtual COM USB / Ethernet Driver, Windows Driver (Europlus / Seagull)

SDK / Plugin

Android / iOS / Windows SDK, Chrome SDK, Linux SDK, Xamarin SDK

Application

Label Artist™ Mobile (Android, iOS), mPrint App (iOS), mPrint Server (Windows, iOS)

MDM

BIXOLON Profile Manager – XPM™, XCM™ (Windows, Android)

• •Fonts/Graphics/Symbologies

• • • • • • • • • •

Fonts

Bitmap Fonts (SLCS , BPL-Z, BPL-E), Scalable Fonts (SLCS, BPL-Z), Unicode supported (UTF-8, UTF-16LE,UTF-16BE)

Graphics

Supporting user-defined fonts, graphics, formats, and logos

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar (RSS-14), IMB, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-E, UPC/EAN extensions

2D

Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39
