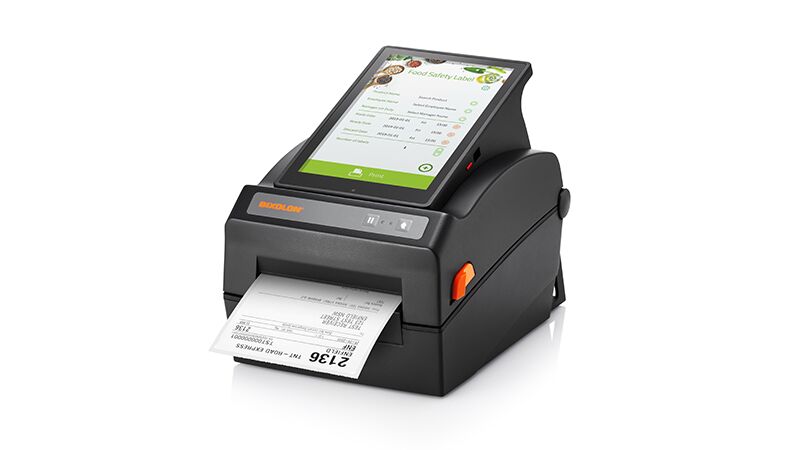

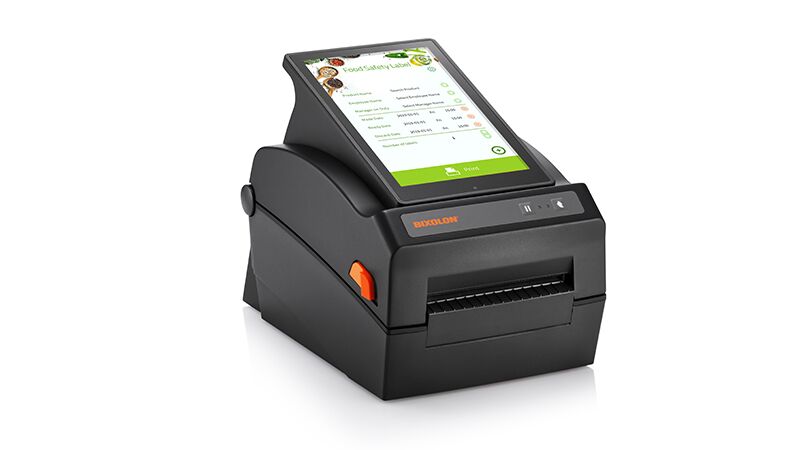

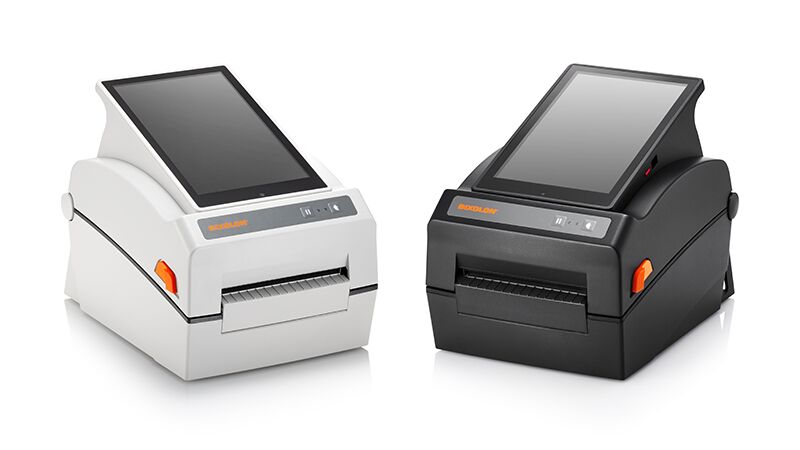

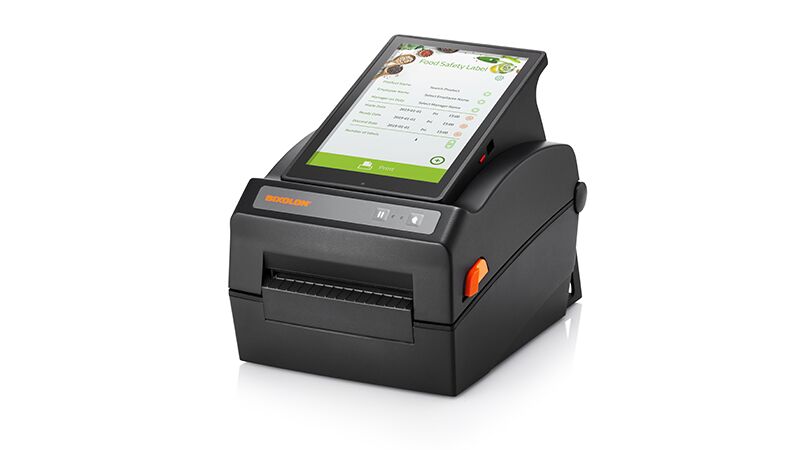

Desktop Label Printer XQ-840

Bixolon Products in Qatar

The XQ-840 evolves structured or standalone print solutions with capabilities addressing performance, productivity and security needs.
The XQ-840 direct thermal printer’s embedded 8-inch tablet design allows you to take control of your labelling anywhere and at any time with ready out-of-box applications or easily integrate the XQ-840 into your application with a suite of development tools. The 4-inch wide, multiple media handling of the XQ-840 allows for simple switching of a range of media – receipt, tags, labels or wristbands, and in order to speed up the workflow and extend the media handling, peel dispense and cutter options are optional choices. The design of the XQ-840 lends itself to be positioned on a fixed counter, wall-mounted or used on a moveable workstation or cart-based application.

The XQ-840 evolves structured or standalone print solutions with capabilities addressing performance, productivity and security needs.
The XQ-840 direct thermal printer’s embedded 8-inch tablet design allows you to take control of your labelling anywhere and at any time with ready out-of-box applications or easily integrate the XQ-840 into your application with a suite of development tools. The 4-inch wide, multiple media handling of the XQ-840 allows for simple switching of a range of media – receipt, tags, labels or wristbands, and in order to speed up the workflow and extend the media handling, peel dispense and cutter options are optional choices. The design of the XQ-840 lends itself to be positioned on a fixed counter, wall-mounted or used on a moveable workstation or cart-based application.



• • SPECIFICATION

• • • • • • • • • •

Print Method

Direct Thermal

Print Speed

XQ-840: Up to 6 ips (152 mm/sec), XQ-843: Up to 4 ips (100 mm/sec)

PRINT RESOLUTION

XQ-840: 203 dpi, XQ-843: 300 dpi

PRINT WIDTH

XQ-840: Up to 108 mm, XQ-843: Up to 105.7 mm

PRINT LENGTH

Up to 1,000 mm

SENSOR

Head open, Reflective (adjustable), Transmissive

Media Type

Black Mark, Continuous, Fan-Fold, Gap, Notch

Media Width

15 ~ 118 mm

Media Roll Size

Up to 130 mm

Media Thickness

0.06 ~ 0.20 mm

Supply Method

Easy Paper Loading

Inner Core

25.4 ~ 38.1mm

DIMENSION (W X D X H IN MM)

194 x 273 x 212 mm

Weight

2.2 kg (4.85 Ibs.)

Electrical

50/60Hz, EnergyStar Certified, External Power Adaptor 100-240V AC

Display

8inch IPS TFT LCD (800 x 1280) Android 7.0

CAMERA

5MP Auto focus

Memory

Printer: 64 MB SDRAM, 128 MB Flash, Tablet: 1GB RAM, 8GB Flash

Interface

• • • • • • • • • •

Standard Interface

Tablet: 2 USB Host ports + Ethernet + WLAN + Bluetooth

WLAN¹

Built-in type, 802.11a/b/g/n (5GHz and 2.4 GHz)

Bluetooth²

V4.2 Classic / LE

Real Time Clock

Supported

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Operating: 0 ~ 40℃ (32 ~ 104℉), Storage: -20 ~ 60℃ (-4 ~ 140℉)

Operating Humidity

Operating: 10 ~ 80% RH, Storage: 10 ~ 90% RH

Emulation

BPL-E™ (EPL), BPL-Z™ (ZPLII), BXL / POS (ESC / POS), SLCS™

SDK / Plugin

Android SDK, Xamarin SDK (Android)

Application

BIXOLON Utility, Food Safety Label App (Android), Label Artist™ Mobile (Android

MDM

BIXOLON Profile Manager – XCM™ (Android)

• •Fonts/Graphics/Symbologies

• • • • • • • • • •

Fonts

Bitmap Fonts (SLCS , BPL-Z, BPL-E), Scalable Fonts (SLCS, BPL-Z), Unicode supported (UTF-8, UTF-16LE,UTF-16BE)

Graphics

Supporting user-defined fonts, graphics, formats, and logos

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar (RSS-14), IMB, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-E, UPC/EAN extensions

2D

Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39

Optional Interface

Auto Cutter, Peeler
