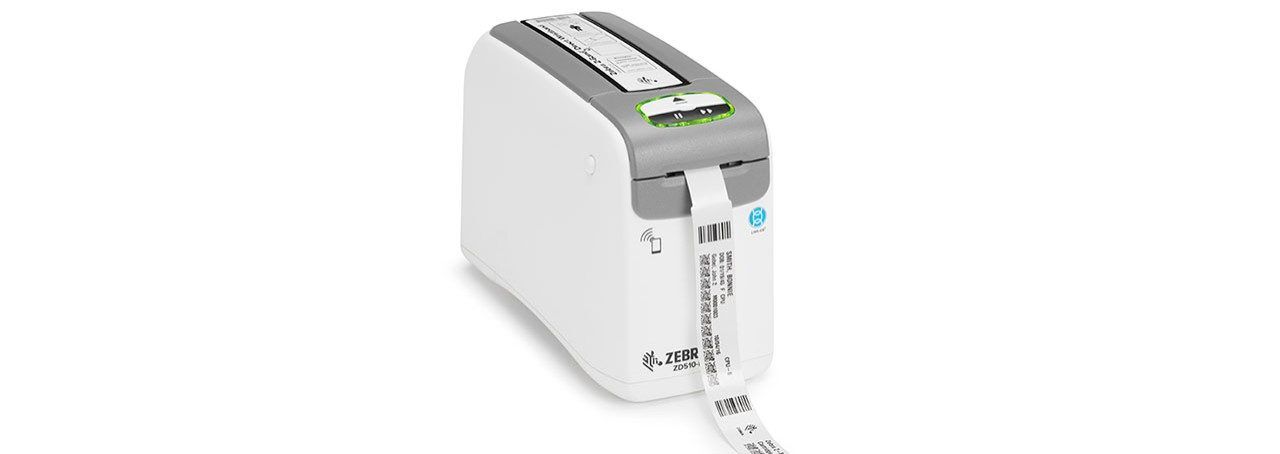

Desktop Printer ZD510-HC

Zebra Products In Qatar

Wristbands play a critical role in your healthcare facility. Staff and patients count on wristbands to provide the instant positive
identification required to prevent medical errors. You need dependable and fast wristband printing, durable wristbands and
consistently scannable barcodes — and with the ZD510-HC, you get it all. The ZD510-HC Wristband Printing solution combines the
reliable ZD510-HC direct thermal printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the
market — Zebra’s Z-Band® wristbands. Your IT department will find ZD510-HC printers easy to integrate, manage and secure, thanks
to Zebra’s Link-OS® operating system and Zebra’s powerful Print DNA suite of applications, utilities and developer tools. Increase
staff productivity and patient safety with the industry’s easiest to use and most dependable wristband printing solution — the ZD510-HC.

Wristbands play a critical role in your healthcare facility. Staff and patients count on wristbands to provide the instant positive
identification required to prevent medical errors. You need dependable and fast wristband printing, durable wristbands and
consistently scannable barcodes — and with the ZD510-HC, you get it all. The ZD510-HC Wristband Printing solution combines the
reliable ZD510-HC direct thermal printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the
market — Zebra’s Z-Band® wristbands. Your IT department will find ZD510-HC printers easy to integrate, manage and secure, thanks
to Zebra’s Link-OS® operating system and Zebra’s powerful Print DNA suite of applications, utilities and developer tools. Increase
staff productivity and patient safety with the industry’s easiest to use and most dependable wristband printing solution — the ZD510-HC.



STANDARD FEATURES

256 MB SDRAM memory, 512 MB Flash memory, Automatic print speed setting-up to 4 ips depending on installed cartridge, Connectivity: USB Host, USB, Ethernet, Bluetooth Low Energy, Direct thermal printing of barcodes, text and graphics, Dual-wall frame, impact-resistant plastic, Element Energy Equalizer™ (E3™) for superior print quality, ENERGY STAR qualified, Head-up sensor, Illuminated media low/media out indicator, Instant media calibration — no wasted media, Link-OS, Odometer for print-length tracking, Quick and easy wristband cartridge loading, Real Time Clock, Tool-less printhead and platen replacement, Unicode™-compliant for multi-language printing, XML-enabled printing — allows XML communications from information system, ZPL and EPL programming languages

Dimensions

* Requires 6 in./153 mm clearance above printer to load cartridge, 5 in. W x 7 in. H* x 9.5 in. D

• • SPECIFICATION

• • • • • • • • • •

Maximum Label Length

22 in./558 mm

Minimum Print Length

3 in./76 mm

PRINT WIDTH

0.75 in./19.05 mm, 1 in./25.4 mm, 1.1875 in./30.16 mm

RESOLUTION

300 dpi/12 dots per mm

Maximum Print Speed

Healthcare: 2 in./51 mm per second, Z-Band Fun and Z-Band Splash: 4 in./102 mm per second

Healthcare Wristbands

Adhesive or clip closure, Adult, child and infant sizes

Hospitality Wristbands

Designed for amusement parks, water parks, carnivals, zoos, sporting events and resorts, One-day and multi-day wristband options, Seven bright colors, Variable print-on-demand barcoded wristbands means the wristband does not have value until printed, reducing ticket fraud

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

40° F to 104° F /4.4° C to 40° C

Storage temperature

-40° F to 140° F /-40° C to 60° C

Operating Humidity

20%-85% non-condensing R.H.

Storage Humidity

5%-85% non-condensing R.H.

CLEANING (PRINTER)

Healthcare wipeable plastic is designed to withstand a variety of disinfectants, chemicals and cleaning solutions. See zebra.com for a full list.

Service Temperature

-40° F to 140° F/-40° C to 60° C

Storage Temperature(wristband)

32° F to 70°F/0° C to 21° C at 35% to 50% non-condensing R.H.

Electrical

ENERGY STAR qualified printer, Universal power supply (PFC-compliant) 100—240VAC, 50—60Hz

Options and Accessories

Factory installed wireless dual radio: 802.11ac Wi-Fi and Bluetooth 4.1, Font Packs — Asian and other international font kits, ZBI 2.0™— Factory- or field-installed

FONTS AND GRAPHICS

Bitmap fonts are expandable up to 10 times, height- and width-independent. Fonts E and H (OCR-B and OCR-A), however, are not considered in spec when expanded, Character fonts: Standard bitmapped Zebra fonts: A, B, C, D, E (OCR-B), F, G, H (OCR-A), GS, P, Q, R, S, T, U, V & Ø Smooth font (CG Triumvirate™ Bold Condensed), Smooth-scalable font Ø (CG Triumvirate Bold Condensed) is expandable dotby-dot, height-and width-independent, while maintaining edges to a max. 1500 x 1500 dots, Supports user-defined fonts and graphics — including custom logos

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-14, EAN-8, GS1 Databar (formerly RSS), Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E

2D

Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code
