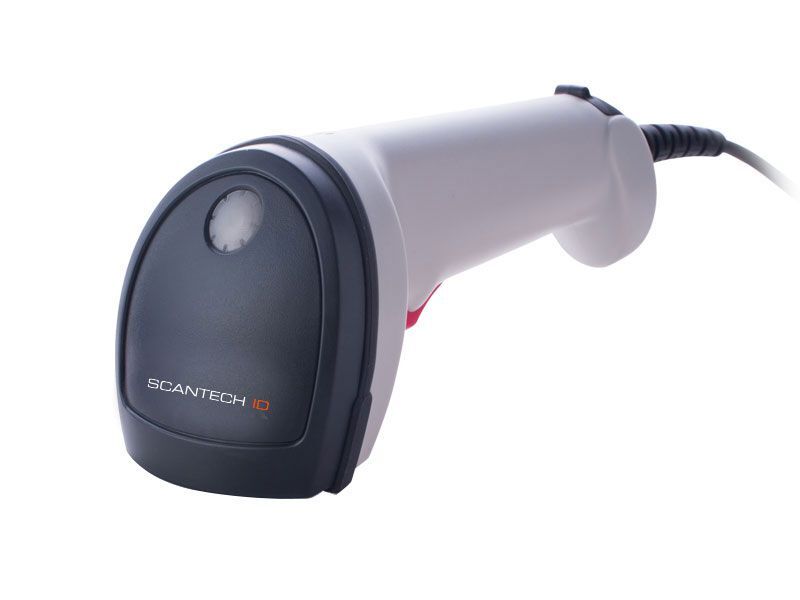

General Purpose Gun Type Scanners IG623


IG623 is a brand new general purpose handheld area imager bar code scanner which is designed especially for retail and logistic management market. We include friendly functions and with replaceable multiple interface cable option that makes it easily to be operated by customers to accommodate it to user environments.

IG623 is a brand new general purpose handheld area imager bar code scanner which is designed especially for retail and logistic management market. We include friendly functions and with replaceable multiple interface cable option that makes it easily to be operated by customers to accommodate it to user environments.



• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

20% to 95% (Non-condensing)

Ambient light

100,000 Lux Max

• • SPECIFICATION

• • • • • • • • • •

Dimensions (WxDxH)

71.13 mm W x 62.61mm H x 169.27 mm L

Light Source

White light LED

Filed of View

Horizontal: 40°, Vertical: 25°

Depth of Field

250mm@20mil/0.5mm, PCS90%

RESOLUTION

10mil/.26mm@PCS90% QRCode, 3mil/0.076mm@PCS90% Code39

Scan Rate

60 fps (at full resolution)

Pitch

5°~60° (±5°)

Skew

5°~60° (±5°)

Body weight

120g

USB Cable weight

67g

Interface

RS232, USB (HID, Virtual COM)

Power

DC 5V
