General Purpose Gun Type Scanners IG820BT

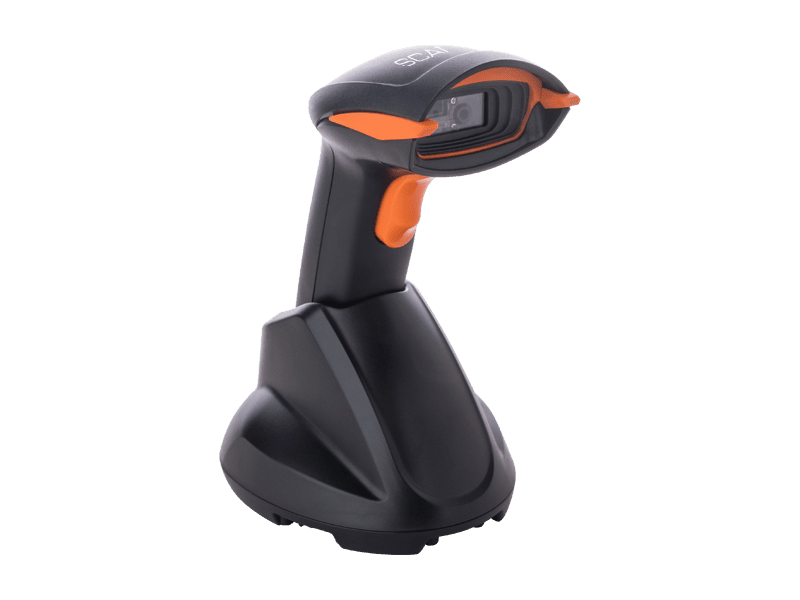

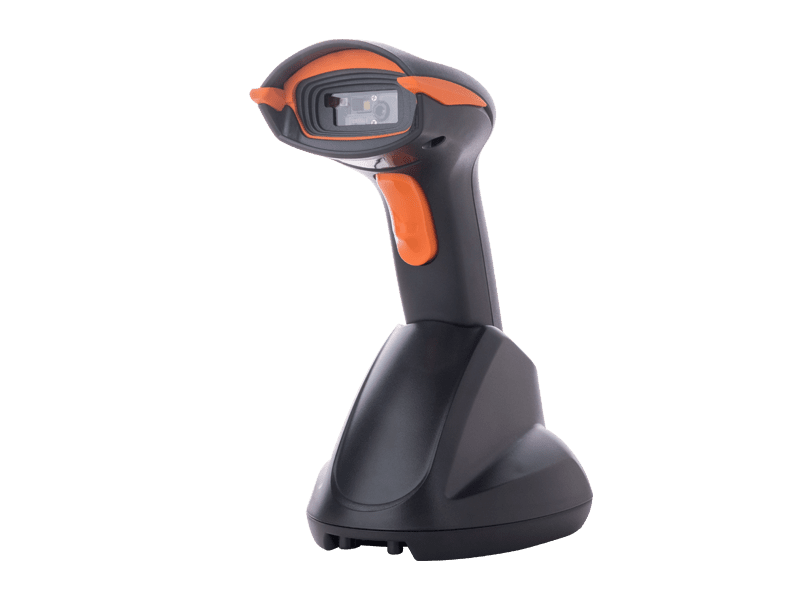

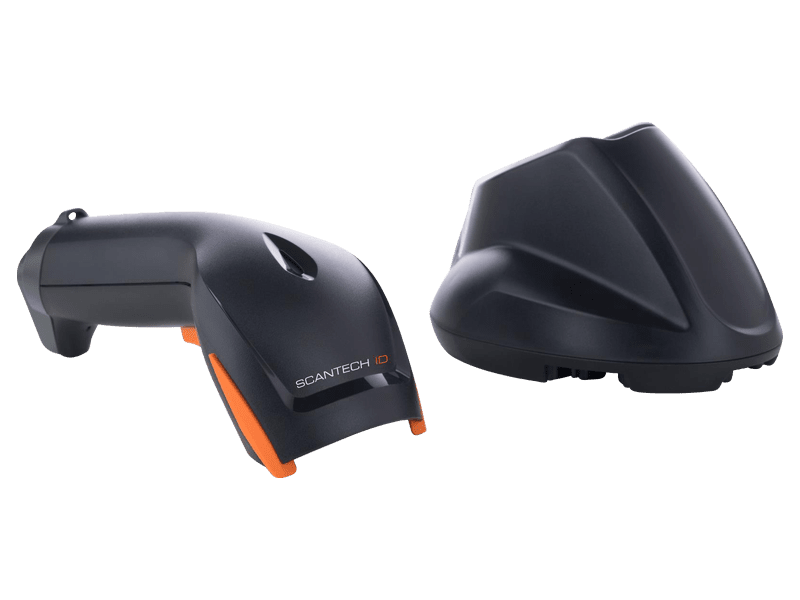

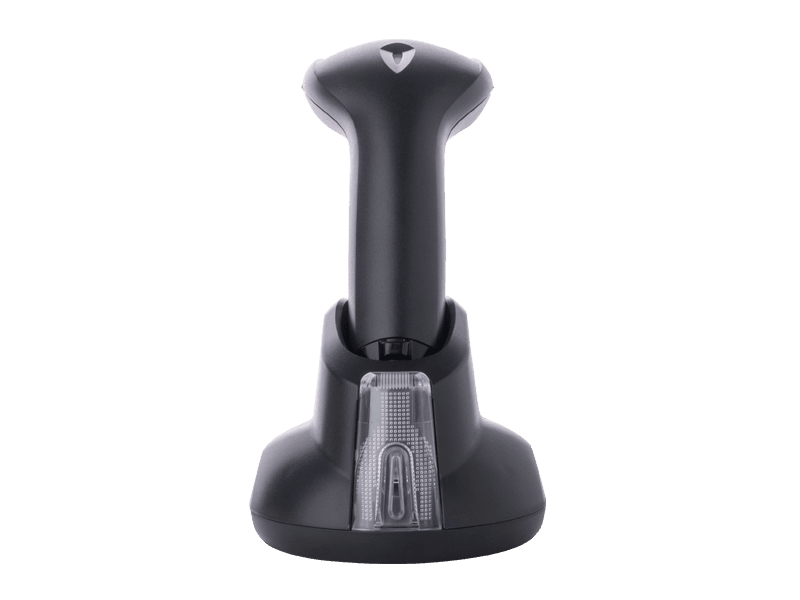

IG820/IG821 (wired) / IG820BT(wireless) is a brand new gun-type area imager bar code scanner, has most modern design with rugged casing and supports IP42 sealing protection, which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multi-interface cable options that makes it more easily to be operated by the customers to accommodate to user environment. An optional stand can be ordered to facilitate hand-free reading application.
IG820/IG821 (wired) / IG820BT(wireless) is a brand new gun-type area imager bar code scanner, has most modern design with rugged casing and supports IP42 sealing protection, which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multi-interface cable options that makes it more easily to be operated by the customers to accommodate to user environment. An optional stand can be ordered to facilitate hand-free reading application.
| • • ENVIRONMENTAL | • • • • • • • • • • |
|---|---|
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 20% to 95% (Non-condensing) |
| Ambient light | 100,000 Lux Max |
| • • SPECIFICATION | • • • • • • • • • • |
| Dimensions (WxDxH) | 73.5 mm W x 76.2mm H x 173 mm L |
| Light Source | White light LED |
| Filed of View | Horizontal – 55°, Vertical – 35° |
| RESOLUTION | 3mil/0.076mm@PCS90% Code39, 5mil / 0.127mm@ PDF417 |
| Scan Rate | 60 fps (at full resolution) |
| Pitch | 5°~60° (±5°) |
| Skew | 5°~60° (±5°) |
| Indicators | Beeper and LED |
| Sealing | IP42 water and dust protection |
| Body weight | Approx. 160g / 5,65 oz |
| Battery | Li-ion 3.7V / 2600 mAh |
| Recharge Time | Approx. 5 hours |
| Scan Per Charge | 20,000 times in continuous read |
| Interface | KBW, RS232, USB (HID, Virtual COM) |
| Power | DC 5V |
