• • Physical Characteristics |
• • • • • • • • • • |
Dimensions (WxDxH) |

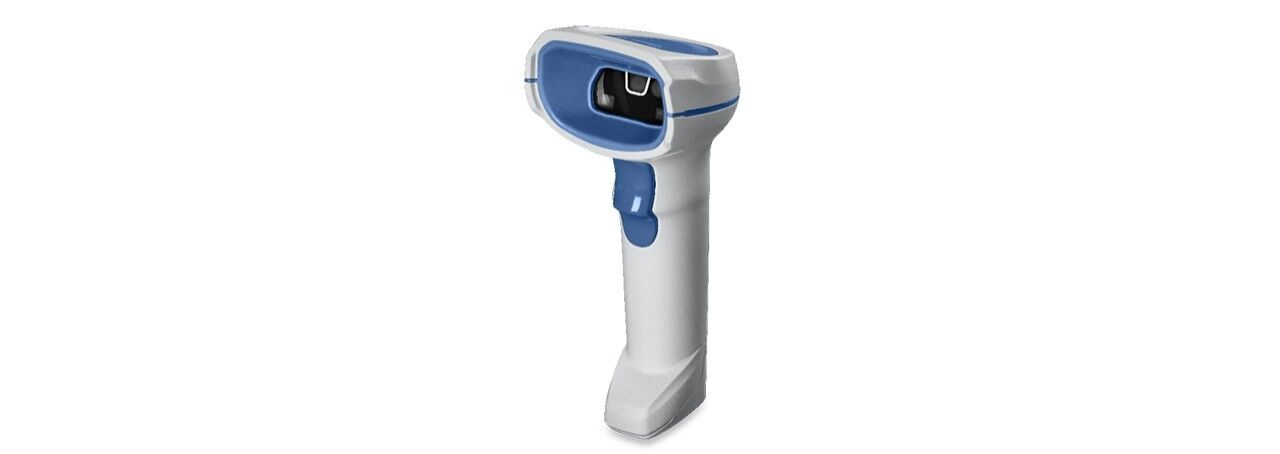

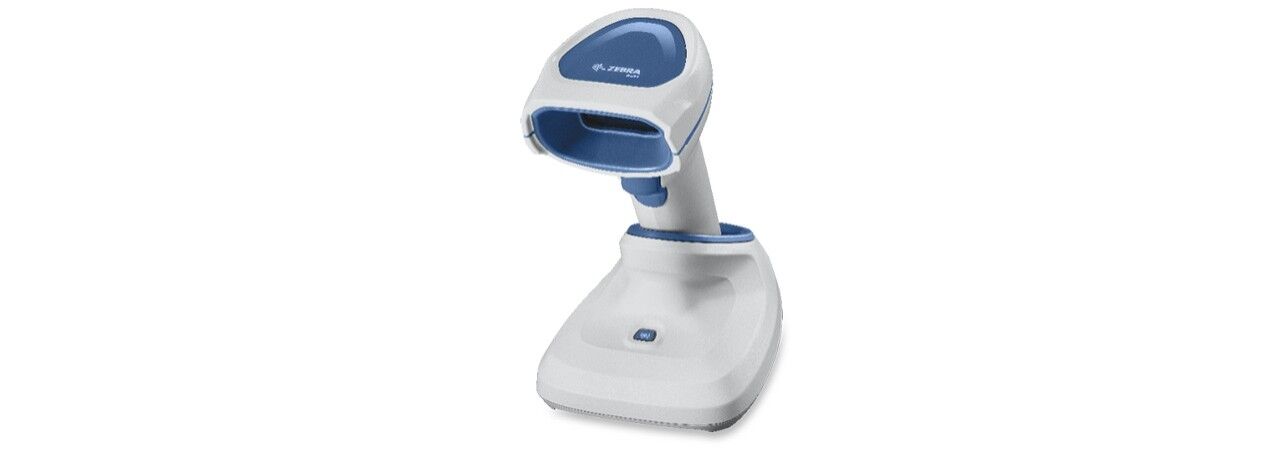

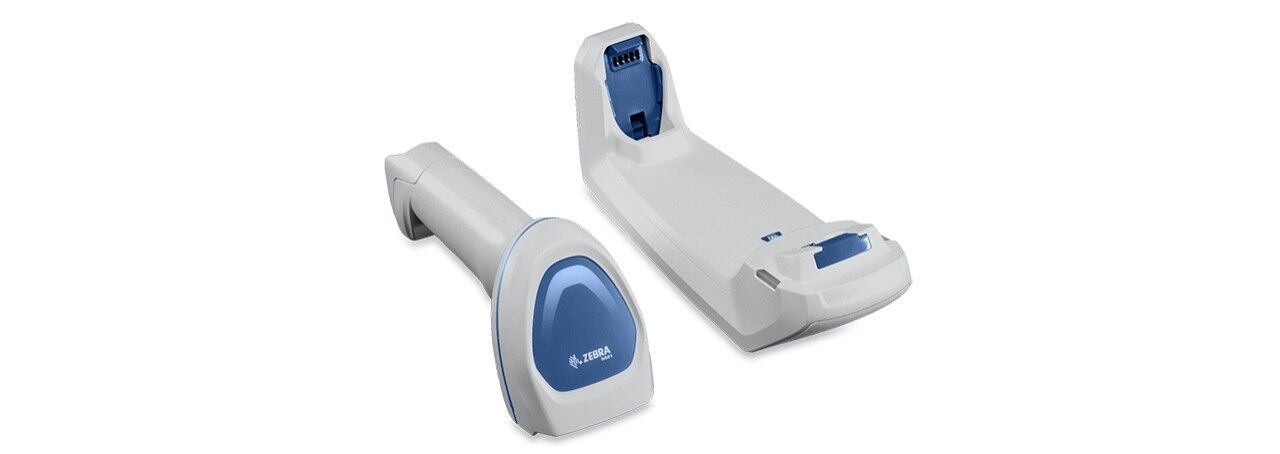

Corded DS8108-HC and Cordless DS8178-HC: 6.6 in. H x 2.6 in. W x 4.2 in. D, Presentation Cradle: 2.9 in. H x 3.7 in. W x 4.8 in. D, Standard Cradle: 2.8 in. H x 3.3 in. W x 8.3 in. D |
Weight |
Corded DS8108-HC: 5.4 oz./154 g, Cordless DS8178-HC: 8.3 oz./235.3 g, Desk/Wall Cradle: 7.1 oz./202 g, Presentation Cradle: 6.5 oz./182 g |
Input Voltage |
DS8108-HC: 4.5 to 5.5VDC, DS8178-HC Cradles: 5V: 4.7 to 5.5VDC; 12V: 10.8 to 13.2VDC |
Power – Current |
Corded DS8108-HC Operating Current at Nominal Voltage (5.0V): 450 mA, Cradle: 470 mA (typical) Standard USB; 743mA (typical) 12V |
COLOR |
Healthcare White |
Supported Host Interfaces |
USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
Keyboard Support |
Supports over 90 international keyboards |
FIPS Security Certification |
Certified Compliant with FIPS 140-2 |
Apple MFi Certification |
MFi certified for use with iPhones and iPads (cordless DS8178-HC) |
User Indicators |
Direct decode indicator, good decode LEDs, rear view LEDs, beeper (adjustable tone and volume), dedicated Power Charge Gauge |
• • Performance Characteristics |
• • • • • • • • • • |
Light Source |
Aiming pattern: True Green (528 nm) Circular |
Illumination |
Two (2) warm white LEDs |
Imager Field of View |
48° H x 37° V nominal |
Minimum Print Contrast |
16% minimum reflective difference |
Skew Tolerance |
+/- 60° |
Pitch Tolerance |
+/- 60° |
Roll Tolerance |
0° – 360° |
• • Imaging Characteristics |
• • • • • • • • • • |
Graphics Format Support |
Images can be exported as Bitmap, JPEG or TIFF |
Image Quality |
109 PPI on an A4 document |
Minimum Element Resolution |
Code 39 – 3.0 mil; Code 128 – 3.0 mil; Data Matrix – 5.0 mil; QR Code – 5.0 mil; PDF – 4.0 mil |
• • ENVIRONMENTAL |
• • • • • • • • • • |
Operating Temperature |
Presentation Mode: 32° to 104° F/0° to 40° C, Scanner: 32° to 122° F/0° to 50° C |
Charging Temperature |
32° to 104° F/0° to 40° C |
Storage temperature |
-40° to 158° F/-40° to 70° C |
Operating Humidity |
5% to 95% RH, non-condensing |
Drop Specification |
Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete |
Tumble Specification |
Designed to withstand 2,000 tumbles in 1.5 ft./0.5 m tumbler |
Sealing |
IP52 |
Approved Cleaners |
Disinfectant Ready. Refer to the product reference guide for the complete list of approved cleaners. |
Electrostatic Discharge (ESD) |
DS8108-HC/DS8178-HC and Cradles: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
Ambient Light Immunity |
0 to 9,000 Foot Candles/0 to 96,840 Lux |
• • Radio Specifications |
• • • • • • • • • • |
Bluetooth Radio |
Standard Bluetooth Version 4.0 with BLE: Class 1 330 ft./100m and Class 2 33 ft./10m, Serial Port and HID Profiles |
Adjustable Bluetooth Power |
Class 1: Output power adjustable down from 4 dBm in 8 Steps Class 2: Output power adjustable down from 2 dBm in 8 Steps |
Power Supply |
Capacity: 2500 mAh, Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 3 hours over USB, Charge time from empty to full: 9 hours over USB, Number of scans from full charge: 65,0004 |
• • Accessories |
Standard cradle, presentation cradle, wall mount bracket, spare battery, spare PowerCap; document capture stands |
Barcode Symbologies |
• • • • • • • • • • |
1D |
Base 32 (Italian Pharma), Codabar/NW-7, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI/Plessey, UPC/EAN extensions |
2D |
Aztec, Chinese Sensible Code, Composite Codes, Data Matrix, DotCode, Dotted DataMatrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, Postal Codes, QR code, SecurPharm, TLC 39 |
BRAND |
ZEBRA |
