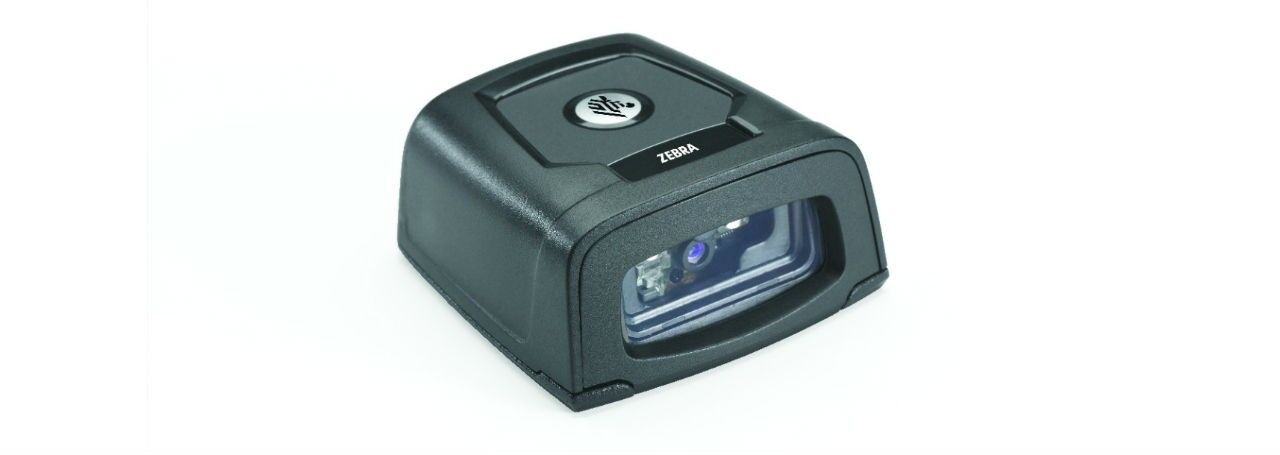

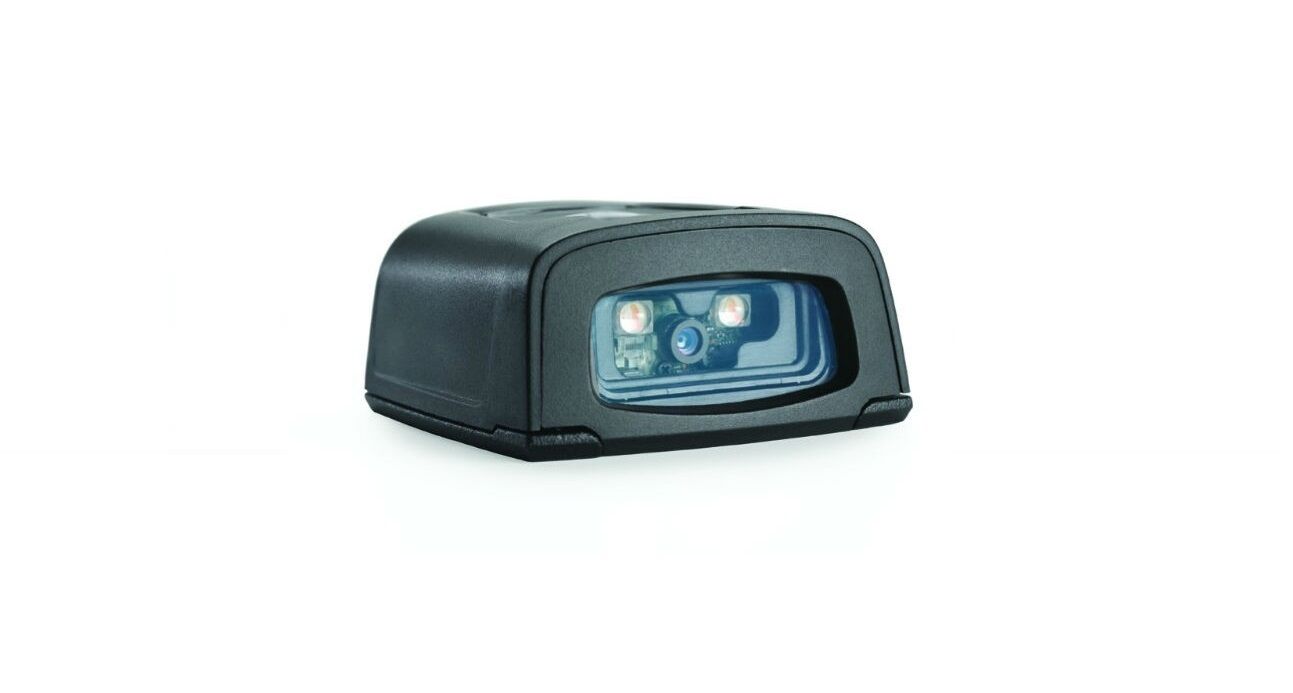

In Counter Scanner DS457

Zebra Products In Qatar

Enable high-volume hands-free scanning from the retail POS and airport boarding gate to the manufacturing production line with the Zebra DS457. With comprehensive data capture, your workers can scan virtually any bar code — including 1-D, 2-D and direct part marks. No matter what type of bar code is presented, or whether it is printed on a paper label, etched into a product or displayed on a mobile phone screen, breakthrough digital imaging technology delivers extraordinary scanning speed. The tiny footprint fits in the most space constrained areas. Workers can choose presentation or trigger-activated mode, providing the flexibility for a wide variety of applications. And while the DS457 can be integrated into a wide variety of products, its sleek design is just as at home in customer-facing areas, such as a retail counter.

Enable high-volume hands-free scanning from the retail POS and airport boarding gate to the manufacturing production line with the Zebra DS457. With comprehensive data capture, your workers can scan virtually any bar code — including 1-D, 2-D and direct part marks. No matter what type of bar code is presented, or whether it is printed on a paper label, etched into a product or displayed on a mobile phone screen, breakthrough digital imaging technology delivers extraordinary scanning speed. The tiny footprint fits in the most space constrained areas. Workers can choose presentation or trigger-activated mode, providing the flexibility for a wide variety of applications. And while the DS457 can be integrated into a wide variety of products, its sleek design is just as at home in customer-facing areas, such as a retail counter.



Dimensions

1.15 in. H x 2.3 in. L x 2.44 in. W, 2.92 cm H x 5.84 cm L x 6.2 cm W

Weight

3.9 oz./111 g

Power

Maximum: 5 VDC +/- 10% @ 450 mA

MODEL

DS457DL: 1-D and 2-D bar codes plus parsing of codes found on driver’s licenses and other identification documents, DS457DP: 1-D and 2-D bar codes plus direct part marks, DS457HD: 1-D and 2-D bar codes, including high density codes, DS457SR: 1-D and 2-D bar codes

Sensor Resolution

752 (H) x 480 (V) gray scale

Imager Field of View

DS457 HD and DP: 38.4° horizontal, 24.9° vertical, DS457 SR and DL: 39.6° horizontal, 25.7° vertical

Aiming Element

655 ± 10 nm (VLD)

Illumination Element

625 ± 5 nm (LED)

Minimum Print Contrast

Minimum 25% absolute dark/light reflectance

• • SYMBOLOGY DECODE CAPABILITY

• • • • • • • • • •

1D

All major 1-D bar codes

2D

Aztec, Composite Codes, Data Matrix, MaxiCode, PDF417, QR code

Postal

Australian Postal, Japan Postal, UK Postal, US Planet, US Postnet

Operating Temperature

-4° to 122° F /-20° to 50° C* (NOTE: Laser aimer disabled above 113° F /45° C)

Storage temperature

-40° to 158° F /-40° to 70° C

Humidity

Operating: 95% RH, non-condensing at 50°C Storage: 85% RH, non-condensing at 70°C

Sealing

IP54

Drop Specification

Withstands multiple 30 in./176 cm drops to concrete

Ambient light

Total darkness to 9000 ft. candles ( 96,900 Lux)

Programmable parameters

advanced data formatting, Beeper Tone, camera control, document capture, image control, Power Mode, session time, signature capture, Trigger Mode

Image Format

BMP, JPG, TIFF

Interfaces Supported

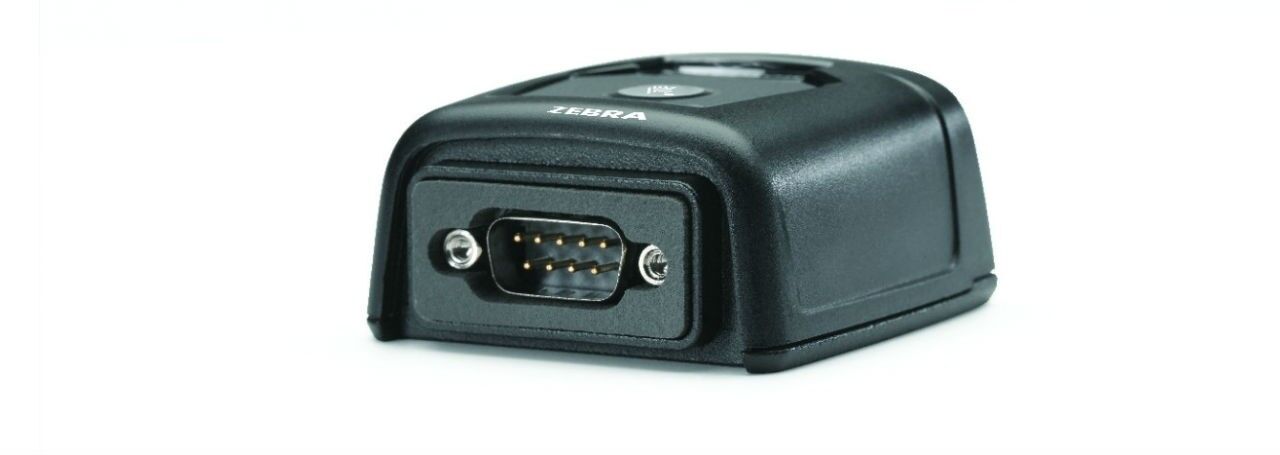

9-pin male D-sub – USB (full speed ) and TTL level RS232 with RTS and CTS

Electrical Safety

CETL, Ctick, EN60950, ETL, VCCI, VDE

Laser classification

Intended for use in CDRH Class II/ IEC 825 Class I devices

EMI/RFI

CISPR22 Class B, FCC Part 15 Class B, ICES-003 Class B

Environmental

RoHS compliant
