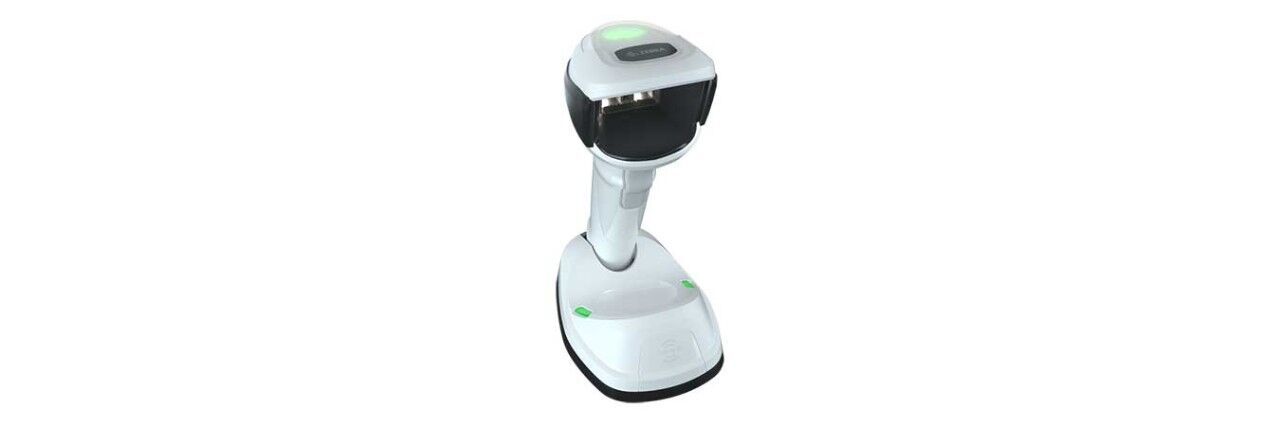

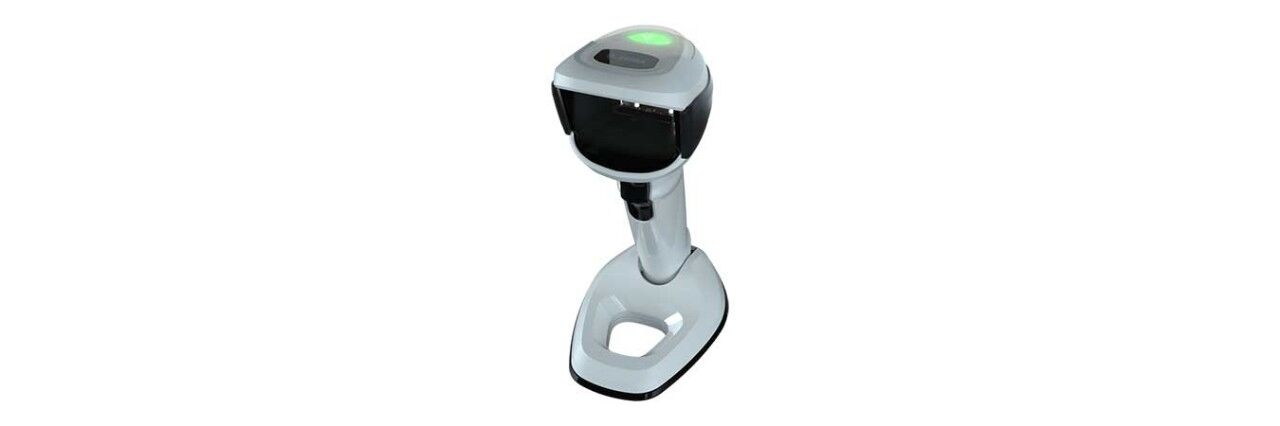

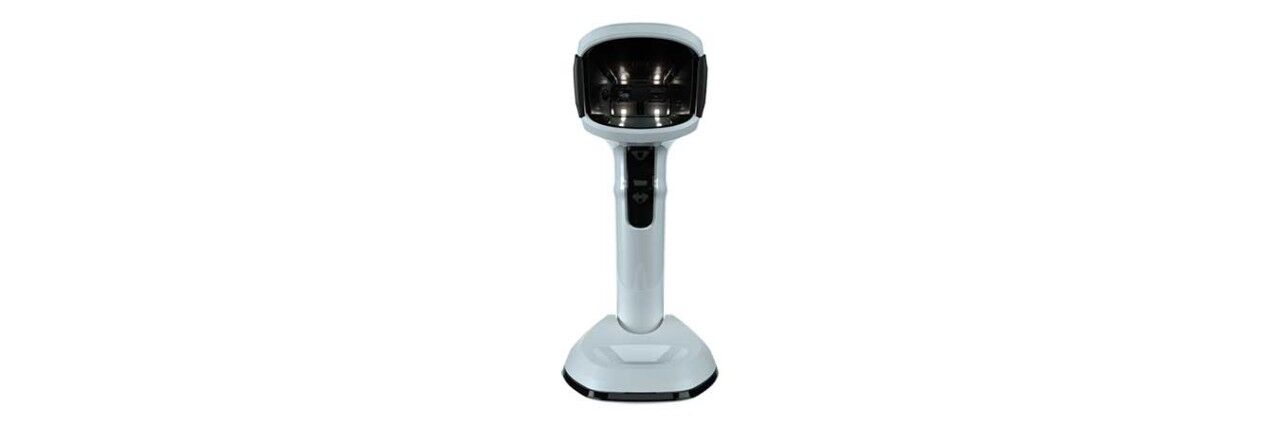

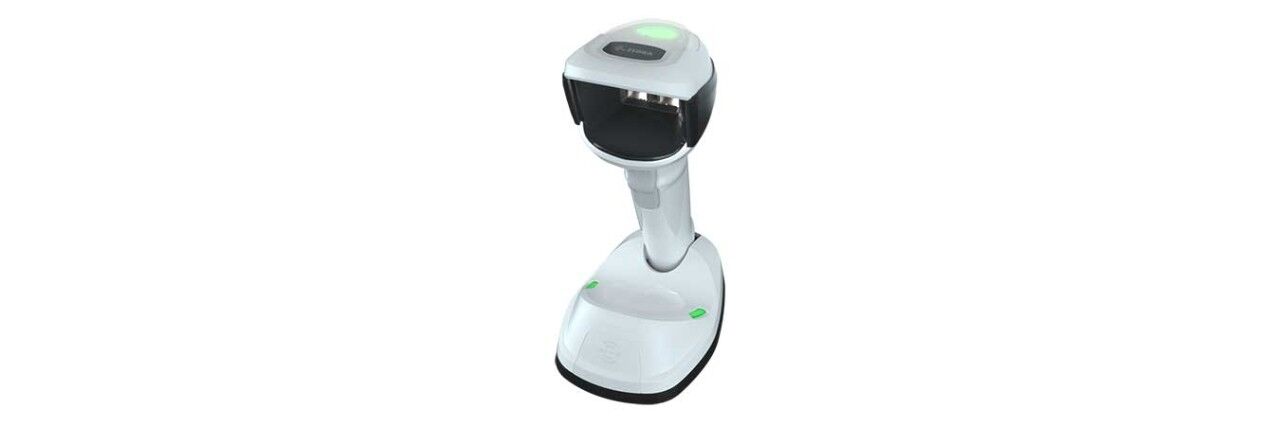

In Counter Scanner DS9900

Zebra Products In Qatar

2D barcodes and RFID help medical labs and pharmacies track critical items like medications, blood, tissue and other specimen samples to improve accuracy and efficiency. But barcodes found in the lab — from tiny barcodes on microscope slides to curved barcodes on medication bottles — can be challenging for a general purpose imager. Zebra’s DS9900 Series is purpose-built for lab environments, offering unparalleled productivity and ease of use. Workers get first-time, every time capture of the many types of barcodes found in the lab including small, high density, curved and color-coded. A one-of-a-kind hybrid design offers both handheld and hands-free scanning, with seamless switching between modes. And an RFID model combines barcode scanning with RFID capabilities to read RFID tags on blood bags and other specimen samples. Improve workflow and accuracy with the hybrid imager built for the lab — the DS9900 Series.

2D barcodes and RFID help medical labs and pharmacies track critical items like medications, blood, tissue and other specimen samples to improve accuracy and efficiency. But barcodes found in the lab — from tiny barcodes on microscope slides to curved barcodes on medication bottles — can be challenging for a general purpose imager. Zebra’s DS9900 Series is purpose-built for lab environments, offering unparalleled productivity and ease of use. Workers get first-time, every time capture of the many types of barcodes found in the lab including small, high density, curved and color-coded. A one-of-a-kind hybrid design offers both handheld and hands-free scanning, with seamless switching between modes. And an RFID model combines barcode scanning with RFID capabilities to read RFID tags on blood bags and other specimen samples. Improve workflow and accuracy with the hybrid imager built for the lab — the DS9900 Series.



Dimensions

DS9908: 8.0 in. H x 3.7 in. W x 5.2 in. D, DS9908R: 8.0 in. H x 3.9 in. W x 5.75 in. D

Weight

DS9908: 11.6 oz./330.0 g, DS9908R: 14.8 oz./420.0 g

Input Voltage

4.5 to 5.5 VDC External Power Supply, 4.5 to 5.5 VDC Host Powered

Operating current at nominal voltage (5.0V)

DS9908: 321 mA (typical), DS9908R: 400 mA (typical)

Standby Current (Idle) at Nominal Voltage (5.0V)

DS9908: 70 mA (typical), DS9908R: 135 mA (typical)

COLOR

Alpine White

Supported Host Interfaces

USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard Support

Supports over 90 international keyboards

User Indicators

Direct Decode Indicator, Good Decode LEDs, Speaker (adjustable tone and volume)

Swipe Speed (Hands- Free)

Up to 240 in./610 cm per second for 13 mil UPC in optimized mode

Light Source

Aiming Pattern: Circular 528nm green LED

Illumination

(2) warm white LEDs

Imager Field of View

48° H x 30.6° V nominal

Image Sensor

1280 x 800 pixels

Minimum Print Contrast

16% minimum reflective difference

Skew Tolerance

+/- 60°

Pitch Tolerance

+/- 60°

Roll Tolerance

0° – 360°

RFID (DS9908R)

• • • • • • • • • •

Standards Supported

EPC Class 1 Gen2; EPC Gen2 V2; ISO-18000-63

RFID Engine

Zebra Proprietary Radio Technology

Nominal Read Range

~18 in. / ~45.7 cm

RFID Power Output

3 dBm to 22 dBm

Frequency Range

EU: 865 – 868 MHz, Japan: 916 – 923 MHz, US: 902 – 928 MHz

• • Imaging Characteristics

• • • • • • • • • •

Graphics Format Support

Images can be exported as Bitmap, JPEG or TIFF

Image Quality

116 PPI on an 8.3 x 11.7 in./21.0 x 29.7 cm document @ 8.0 in./20.3 cm

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

32.0° to 122.0° F / 0.0° to 50.0° C

Storage temperature

-40.0° to 158.0° F / -40.0° to 70.0° C

Humidity

5% to 95% RH, non-condensing

Drop Specification

DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete, DS9908R: Designed to withstand multiple drops at 4.0 ft./1.2 m to concrete

Tumble Specification

Designed to withstand 2,000 tumbles in 1.5 ft. /0.5 m tumbler4

Sealing

DS9908: IP52, DS9908R: IP42

Electro-Static Discharge

ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity

0 to 10,000 Foot Candles / 0 to 107,600 Lux

Symbol Decode Capability

• • • • • • • • • •

1D

Base 32 (Italian Pharma), Codabar/NW-7, Code 11, Code 39, Code 93, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI/Plessey, UPC/EAN

2D

Aztec, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, Postal Codes, QR code, TLC 39

OCR

MICR, OCR-A, OCR-B, US Currency

Minimum Element Resolution

Code 128 – 3.0 mil*, Code 39 – 3.0 mil, DataMatrix – 5.0 mil, QR Code – 5.0 mil
