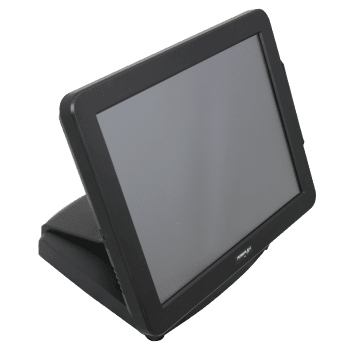

POS Terminal KS-7412

POSIFLEX PRODUCTS

The KS-7412 Series really offers the best of both worlds. Its 12” LCD panel addresses the need for space, while offers adequate viewing area for everyday operation. Powered by Intel J1900 processor and the reliability that is synonymous with Posiflex brand, making the KS-7412 Series one of the best all-round performers in the field.

The KS-7412 Series really offers the best of both worlds. Its 12” LCD panel addresses the need for space, while offers adequate viewing area for everyday operation. Powered by Intel J1900 processor and the reliability that is synonymous with Posiflex brand, making the KS-7412 Series one of the best all-round performers in the field.



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache

System Memory

DDR3L SO-DIMM slot x 1, max. 8GB

Storage Device

SATA Storage x 1

Power Supply

12V/60W

OS Support

Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

12" TFT LCD

RESOLUTION

1024 x 768

TOUCH

5-wire Resistive touch

SERIAL PORT

4, DB9 x 2 + RJ50 x 2, 5V/12V support on all COM ports

STANDARD USB PORT

6, USB 2.0 x 6

PARALLEL PORT

1, via optional conversion cable through service window

LAN PORT

10/100/1000 Mb x 1

DISPLAY PORT

VGA x 1, 12V support for Posiflex monitors

CR PORT

1, control 2 CR via optional Y-cable

PS/2 PORT

1, via optional conversion cable through service window

Audio

Internal 2W speaker x 1+ Line-out

EXPANSION SLOT

M.2 slot x 1

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

297 x 252 x 273

Weight

3.13

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

M.2 WiFi/BT module
