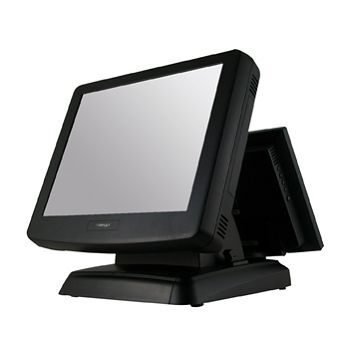

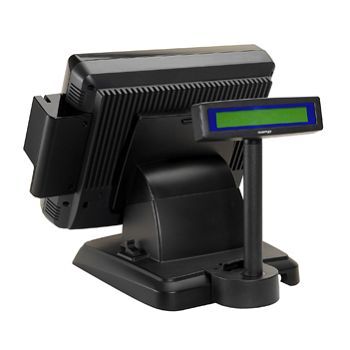

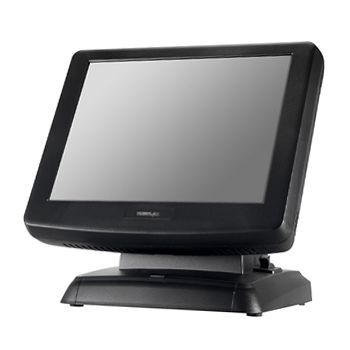

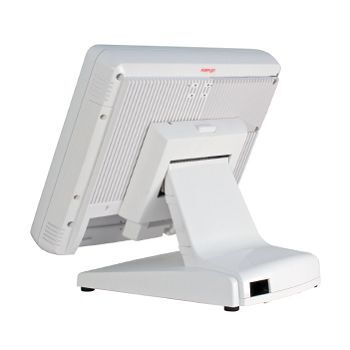

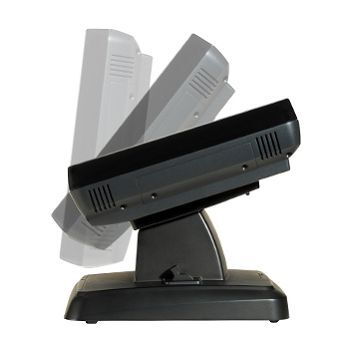

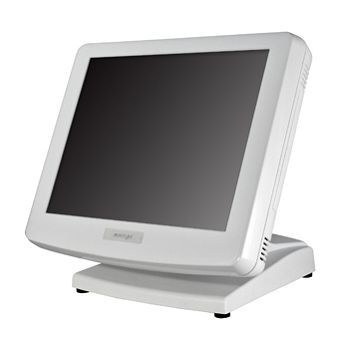

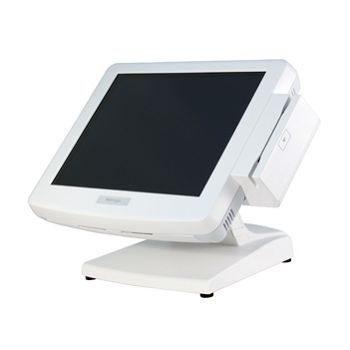

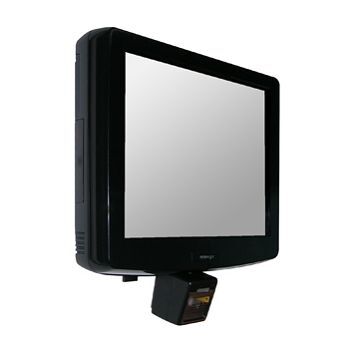

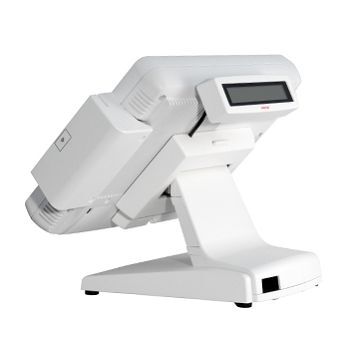

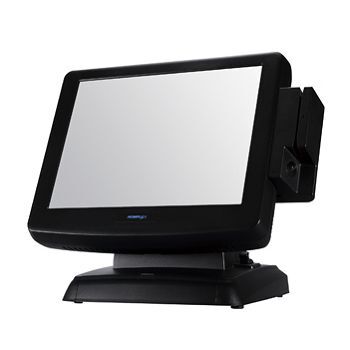

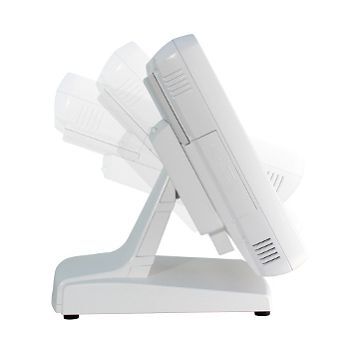

POS Terminal KS-7415G-I

Posiflex Products

Available in 15” resistive or IR touch screen, the KS-7415G-I Series comes with Intel Bay Trail J1900 CPU for enhanced performance. Just like other members of KS family, the KS-7415G Series is designed to deliver uncompromising performance, aesthetics and quality.

Available in 15” resistive or IR touch screen, the KS-7415G-I Series comes with Intel Bay Trail J1900 CPU for enhanced performance. Just like other members of KS family, the KS-7415G Series is designed to deliver uncompromising performance, aesthetics and quality.



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache

System Memory

DDR3L SO-DIMM slot x 1, max. 8GB

Storage Device

SATA Storage x 1

Power Supply

12V/60W

OS Support

Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

15" TFT LCD

RESOLUTION

1024 x 768

TOUCH

IR Touch

SERIAL PORT

4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports

STANDARD USB PORT

USB 2.0 x 6

PARALLEL PORT

1, via optional conversion cable through service window

POWERED USB PORT

Optional 24V x 1 + 12V x 2 via 8.5th generation base

LAN PORT

10/100/1000 Mb x 1

DISPLAY PORT

VGA x 1, 12V support for Posiflex monitors + HDMI x 1

CR PORT

1, control 2 CR via optional Y-cable

PS/2 PORT

1, via optional conversion cable through service window

UPS PORT

Yes

Audio

Internal 2W speaker x 1

EXPANSION SLOT

M.2 slot x 1

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

378 x 304 x 364

Weight

7.7

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

M.2 WiFi/BT module
