Mobile Receipt Printer SPP-A200

BIXOLON PRODUCTS IN QATAR

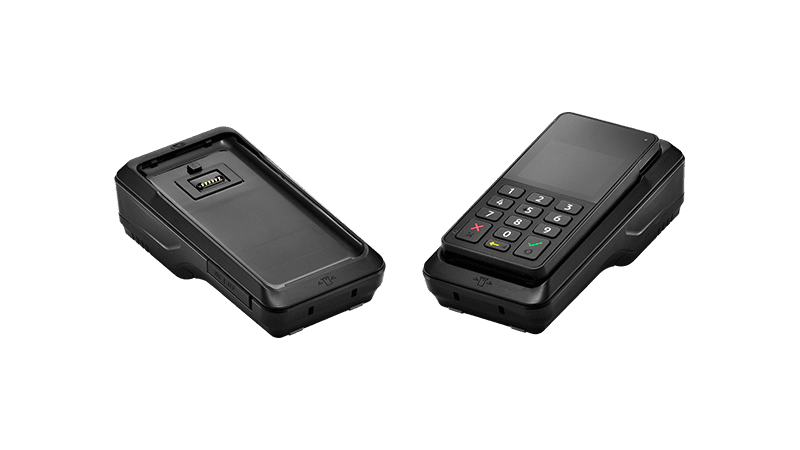

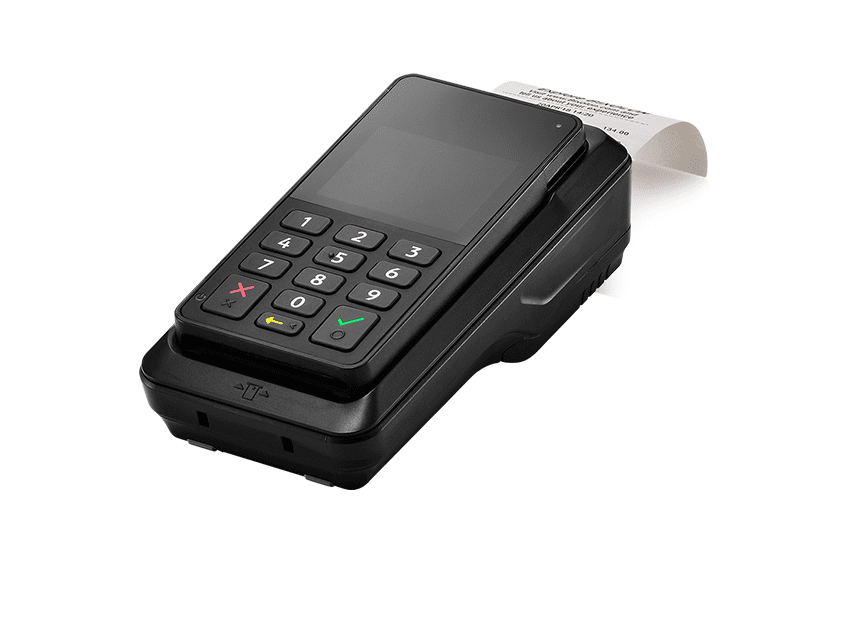

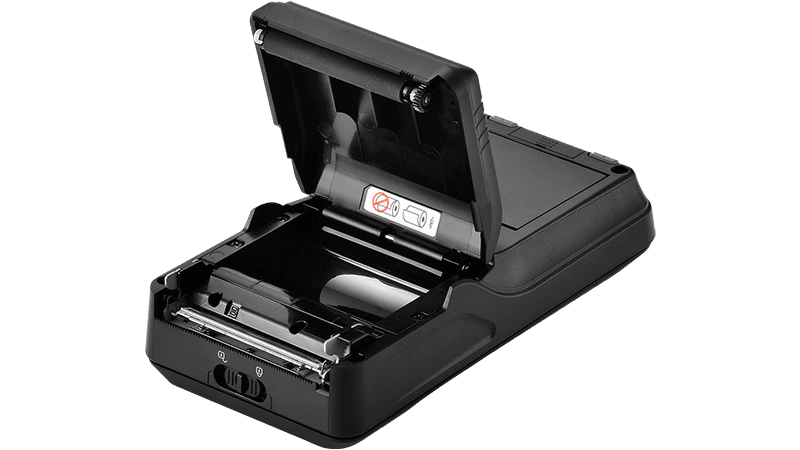

BIXOLON has further extended its receipt printing solutions with their new 2-inch (58mm) Mobile Printer Sled with attachable third-party PIN Entry Device (PED). The SPP-A200 allows BIXOLON customers to opt for either a one or two-piece Mobile receipt printer solution. Offering a direct USB v2.0 connection and speeds of up to 80mm/s, the 1,200 mAh battery offers long usage times and is protected from multiple 1.0 metre falls to concrete. Simple drop-in media loading with 30mm OD receipt rolls at 58mm wide, supporting International character printing, 1D and 2D barcode symbologies. Intended for small to medium businesses where the transactional, financial activities require proof of purchase, the BIXOLON brand offers a trusted name in receipt printing solutions.

BIXOLON has further extended its receipt printing solutions with their new 2-inch (58mm) Mobile Printer Sled with attachable third-party PIN Entry Device (PED). The SPP-A200 allows BIXOLON customers to opt for either a one or two-piece Mobile receipt printer solution. Offering a direct USB v2.0 connection and speeds of up to 80mm/s, the 1,200 mAh battery offers long usage times and is protected from multiple 1.0 metre falls to concrete. Simple drop-in media loading with 30mm OD receipt rolls at 58mm wide, supporting International character printing, 1D and 2D barcode symbologies. Intended for small to medium businesses where the transactional, financial activities require proof of purchase, the BIXOLON brand offers a trusted name in receipt printing solutions.



• • SPECIFICATION

• • • • • • • • • •

Print Method

Direct Thermal

Print Speed

12.5% pattern, Up to 80 mm/sec (Receipt)

PRINT RESOLUTION

203 dpi

PRINT WIDTH

Up to 48 mm

SENSOR

Paper End

Media Type

Receipt

Media Width

58 mm

Media Roll Size

Up to 30 mm

Media Thickness

0.07 ± 0.005 mm

Supply Method

Easy Paper Loading

DIMENSION (W X D X H IN MM)

82.8 x 149 x 41 mm

Weight

Including battery: 240 g (0.53 Ibs.)

Electrical

7.4 V Li-ion, 1200 mAh, Rechargeable Charging time: Up to 2.5 hrs

Memory

8 MB SDRAM, 4 MB Flash

Interface

• • • • • • • • • •

Standard Interface

USB V2.0 FS

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Operating: -15 ~ 50℃ (5 ~ 122℉), Storage: -30 ~ 70℃ (-22 ~ 158℉)

Operating Humidity

Operating: 10 ~ 80% RH

Drop Rate

1.0 m (3.3 ft.)

Emulation

BXL / POS

• •Fonts/Graphics/Symbologies

• • • • • • • • • •

Character Size

Font A: 12 x 24, Font B: 9 x 17, Font C: 9 x 24, KOR, CHN, JPN: 24 x 24

Characters Per Line

Font A: 32, Font B, C: 42, KOR, CHN, JPN: 16

Character Sets

Alphanumeric: 95, Expanded Graphics: 128 x 33 page, International: 32

Graphics

Supporting user-defined fonts, graphics, formats, and logos

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, ITF, UPC-A, UPC-E

2D

Aztec, Data Matrix, MaxiCode, PDF417, QR code

Standard Accessories

Battery Pack, Paper, Power Cord, SMPS

Optional Accessories

Cleaning Pen, Quad Battery Charger, Single Battery Cradle, Wall Mount (for Quad Battery Charger)
