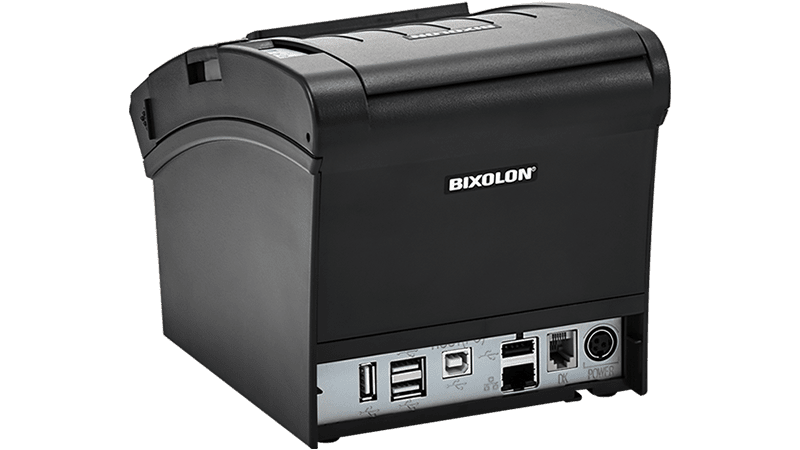

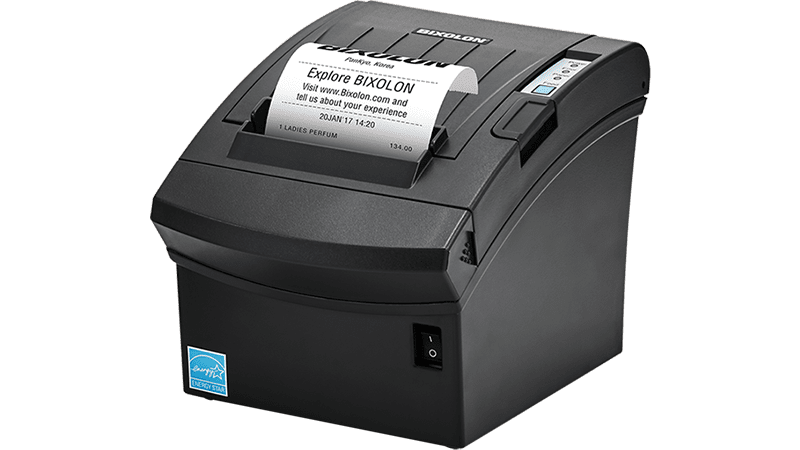

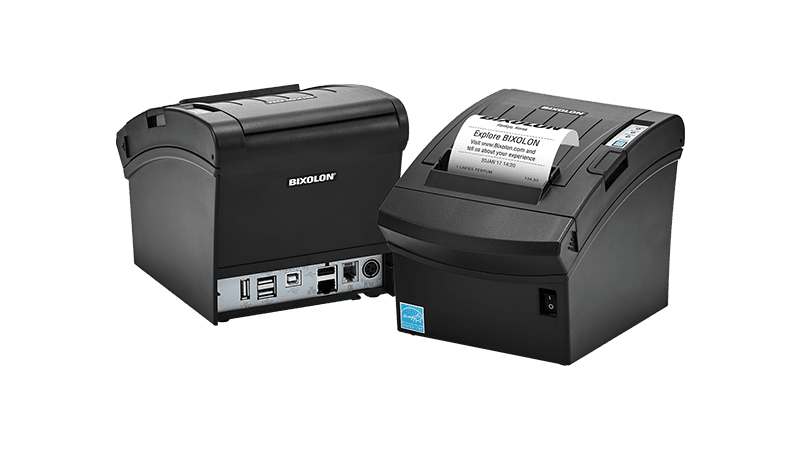

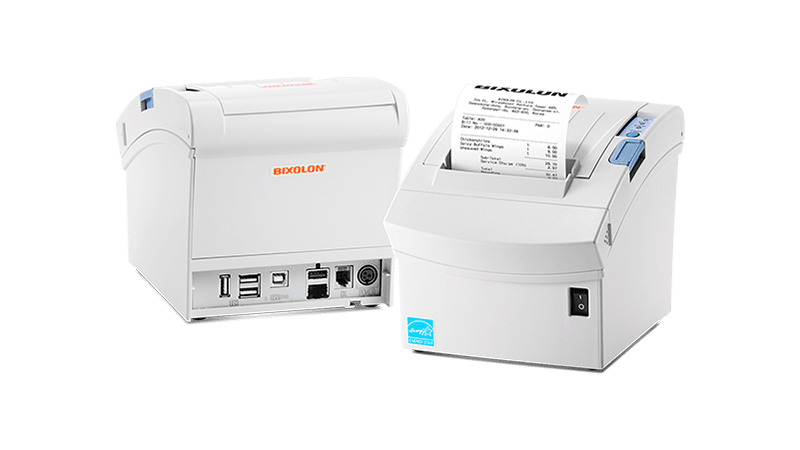

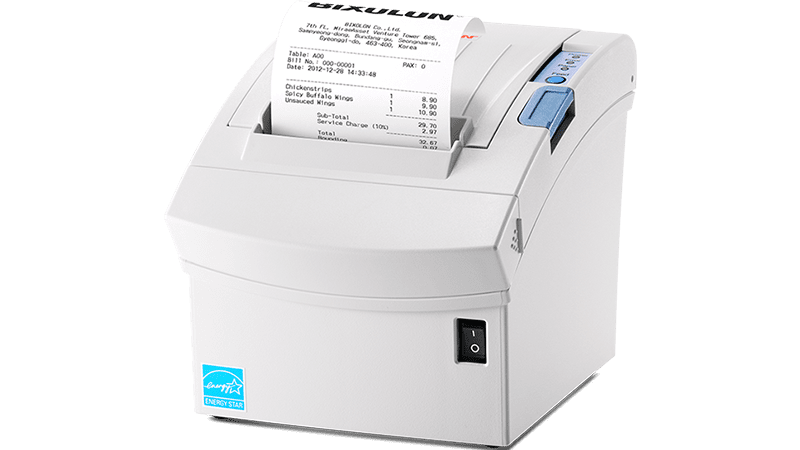

MPOS Printer B-gate Built-in Type

Bixolon Products in Qatar

A low cost mPOS receipt and ticket printing solution which allows you to connect traditional POS peripherals with tablets or smartphones via an intelligent Bluetooth or WLAN USB dongle. BIXOLON’s B-gate mPOS hub removes the complex issues of separately pairing wireless peripherals such as scanners, cash drawers, customer displays and more, eliminating the cost and time for development of POS peripherals. B-gate connects to the host table device while supporting 1 charging port and up to 4 USB peripherals, the BGT-100Pt also prints receipt or online orders through a native cloud-based mPOS application. Supporting a sleek design, the BGT-100Pt offers 300dpi print resolution, printing at speeds up to 300mm/sec, accompanied with a 2 year warranty.

A low cost mPOS receipt and ticket printing solution which allows you to connect traditional POS peripherals with tablets or smartphones via an intelligent Bluetooth or WLAN USB dongle. BIXOLON’s B-gate mPOS hub removes the complex issues of separately pairing wireless peripherals such as scanners, cash drawers, customer displays and more, eliminating the cost and time for development of POS peripherals. B-gate connects to the host table device while supporting 1 charging port and up to 4 USB peripherals, the BGT-100Pt also prints receipt or online orders through a native cloud-based mPOS application. Supporting a sleek design, the BGT-100Pt offers 300dpi print resolution, printing at speeds up to 300mm/sec, accompanied with a 2 year warranty.



• • SPECIFICATION

• • • • • • • • • •

Print Method

Direct Thermal

Print Speed

BGT-100Pt: Up to 300 mm/sec, BGT-102Pt: Up to 270 mm/sec

PRINT RESOLUTION

BGT-100Pt: 180 dpi, BGT-102Pt: 203 dpi

PRINT WIDTH

Up to 72 mm

SENSOR

Cover Open, Paper End, Paper Near End

Media Type

Receipt

Media Width

80 mm, Optional 58 mm (N type)

Media Roll Size

Up to 83 mm

Media Thickness

0.05 ~ 0.08mm

Supply Method

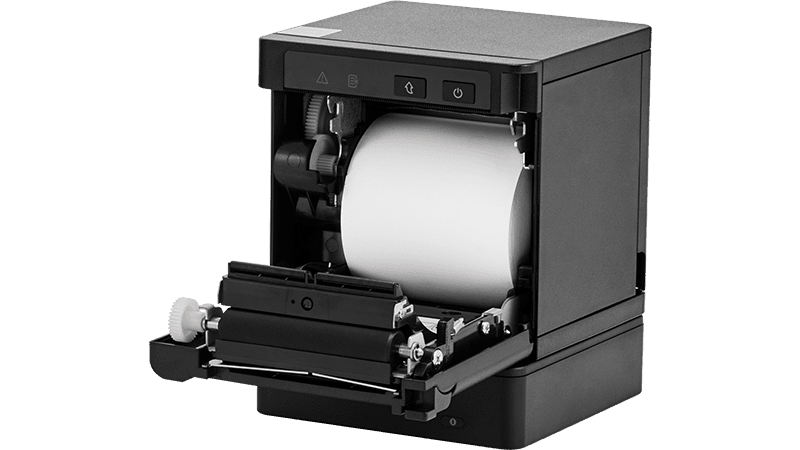

Easy Paper Loading

DIMENSION (W X D X H IN MM)

145 x 200 x 146 mm

Weight

1.56 kg (3.43 lbs.)

Electrical

50/60Hz, EnergyStar Certified, External Power Adaptor 100-240V AC

Drawer Port

2 Ports (Via y-type adaptor)

Memory

64MB SDRAM, 256 Flash

NV Image Memory

768 Kbytes (mono)

Receive Buffer

4 Kbytes

User Define Buffer

12 Kbytes

Interface

3 USB Host ports(V2.0 HS) + 1 device port (V2.0 HS) + 1 USB Host with charging + Ethernet + Bluetooth¹ + WLAN²

Bluetooth¹

Class 1, MFi certified, V4.1 Classic & LE

WLAN²

802.11a/ac/b/g/n(2.4G+5G) USB dongle type(Optional)

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Operating: 0 ~ 40℃ (32 ~ 104℉), Storage: -20 ~ 60℃ (-4 ~ 140℉)

Operating Humidity

Operating: 10 ~ 80% RH, Storage: 10 ~ 90% RH

Thermal Print Head (TPH)

150 km

Auto Cutter

1.8 Million Cuts

Emulation

BXL / POS

Driver / Utility

BGT-100P/102P: Windows Driver, Utility Program

SDK / Plugin

BGT-100P/102P: B-gate iOS / Android / Windows SDK, Chrome SDK, B-gate SDK_Cloud Server Print, B-gate SDK_Web App Print

Application

mPrint Server (Windows, iOS)

• •Fonts/Graphics/Symbologies

• • • • • • • • • •

Character Size

Font A: 12 x 24, Font B: 9 x 17, Font C: 9 x 24, KOR, CHN, JPN: 24 x 24

Characters Per Line

SRP-350plusIII: Font A: 42 Font B, C: 56 KOR, CHN, JPN: 21, SRP-352plusIII: Font A: 48 Font B, C: 64 KOR, CHN, JPN: 24

Character Sets

Alphanumeric: 95, Expanded Graphics: 128 x 33 page, International: 32

Graphics

Supporting user-defined fonts, graphics, formats, and logos

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, ITF, UPC-A, UPC-E

2D

Data Matrix, PDF417, QR code

Optional Accessories

B-Melodist, External buzzer, Splash Proof Cover, USB A-B Cable 1.8m, USB to Serial cable, WLAN Dongle
