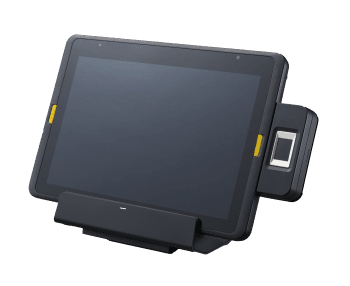

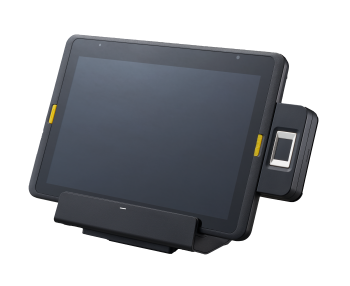

MT-6210A


MT-6210A is a 10.1” semi-rugged tablet powered by MediaTek’s MT-8786 processor, designed with 1.2m drop resistance and IP54 rating, equip with USB Type-C Port with fast charging and support comprehensive attachments.

Thin, Lightweight and Semi-Rugged

  • The MT-6200 Series boasts great aesthetics; the thin and lightweight design is well-suited for business environments, while its semi-rugged construction allows it to withstand drops of up to 1.2 meters and offers IP-54 protection.

Type-C Charging Dock with Rich I/O

  • Featuring USB Type-C charging dock with a diverse range of I/O ports to enhance its functionality for stationary operations.

Seamless Connectivity

  • MT-6200 Series leads the way with seamless connectivity, supporting WiFi 5/6 and Bluetooth 5.0/5.2, ensuring a superior and efficient user experience.

Cleverly Programmable Function Keys

  • The MT-6200 series features 2 physical buttons, which are suitable triggers for the built-in 2D Barcode scanner. These buttons are also programmable, allowing customization for your specific applications.



Specification (Tablet Only)
Processor MT8786 (2 x A75 2.0GHz + 6 x A55 1.5Ghz)
System Memory On-board 4GB LPDDR4 (Option: 8GB LPDDR4 with 128GB eMMC)
Storage Device On-board 64GB eMMC (Option: 8GB LPDDR4 with 128GB eMMC)
Supported Expansion Storage 1 x TF Card slot, up to 512GB
TPM Support
Intel vPro Support
OS Support Android 13 W/GMS
LCD 10.1” TFT LCD with LED backlight
Resolution 800×1280
Brightness 300nits
Touch Input PCAP supporting multi-touch, Cover Glass: Corning Gorilla III
WiFi Wi-Fi IEEE 802.11a/b/g/n/ac (WiFi5)
Accessory port 1 x Inner USB 2.0 pin header (for attachment)
Docking Port 1 x USB-C as docking connector & power charging function
Audio 1 x 1W speaker, 1 x 3.5mm Headphone Jack
OTG USB Port
Camera Front: 2MP (FF)
Rear: 5MP (AF)
Standard USB port
Button 1 x Power Button, 1 x Vol+/-, 2 x programmable Key
LAN port
CR Port
Sensor G-sensor, ALS
Built-in Printer N/A
LED indicator 1 x LED indicator (tri-color) for power up/ battery/ BCR scan
Battery 2S1P Li-Po battery, 45Wh
Adapter AC100~240V, Type-C type connector, Support PD
Speaker/Audio + Mic
BT BT 5.0
I/O
NFC Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica),
ISO/IEC 15693, ISO/IEC-18092
Physical Dimension (Tablet Only)
Dimension (W x D x H in mm) 261 x 176.8 x 19.4
Weight (N. W. in g) 890
Environmental
Drop 1.0 m, 1.2m with protection case
IP Rating IP54
Operation Condition 0°C – 40°C, 20%RH – 90%RH
Storage Condition -20°C – 60°C, 10%RH – 90%RH
Built-in Options
Smart Card Reader
3G Communication
4G / LTE Communication
NFC
Customer Display
Camera
Scanner
Attachment Options
MSR (TA-220 / TA-300)
RFID (TA-220)
Fingerprint sensor (TA-300)
Pistol Grip (PG-201E)
Pistol Grip (PG-500)
Scanner
Shoulder Strap + 2nd Battery Option (TA-500)
Shoulder Strap + 2nd Battery Option (TA-600)
EMV Chip Card Reader
2 in 1 MSR/ FPU Side attachment (TA-620) 3 track MSR support (ISO7811 magnetic card)
Fingerprint Sensor support (Active Capacitive technology)
2D BCR ( Factory option) 1280*800 CMOS Sensor, Resolution≧5mil, Decoding Capability 1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128,
Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-
Plessey GS1 Databar,GS1 Composite Code, Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5 …etc
2D: QR Code, Data Matrix, PDF417,Aztec,Maxi Code, Dotcode…etc.
Standalone Options
Removal Battery Charging Rack (CS-100)
Tablet Charging Rack (CS-210 / CS-220)
Quad Tablet Charging Rack (CS-200)
Hand Strap
Protection Cover (MC-408)
Docking Station (CS-640) Single charging station for 8” & 10.1” Opera Series tablet Provide 2 x USB 2.0, 1 x RJ50 COM Port, 1 x 10/100 Mbps LAN
Port
