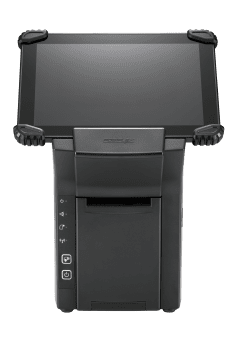

Mt 5310w front with dock station 20052915785 1 1
Mt-5310w
Mt-5310w
Mt-5310w
Mt-5310w

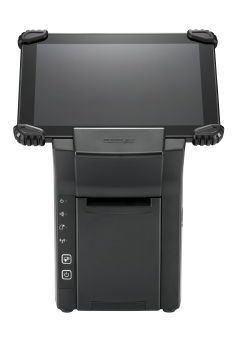

Mt 5310w front with dock station 20052915785 1 1

MT-5310W

MT-5310W is a mobile POS specifically designed for both the retail and hospitality businesses. It is a 10.1″ tablet supporting MSR/RFID attachment, pistol grip with built-in 2D barcode scanner, 2nd removable battery and an optional dock station to transform the device into a full-fledged, stationary POS.

Add to quote

Hybrid Solution

  • The MT-5310W is proven to provide businesses with the mobility of a tablet and the functionality of a fixed POS terminal.

Ergonomic Design

  • Ergonomically designed pistol grip shaped handle PG-500 for easy carrying the tablet along with an additional battery and optional built-in barcode scanner.

Extra Protection

  • Hand strap provides extra protection and eases the user’s fatigue during the hours of operation.

Extended Operation

  • In addition to the charging dock station, both attachments PG-500 and TA-600 house a removable battery to vastly extend the overall operating time.



Category: Brand: ,
Specification (Tablet Only)
Processor Intel Kaby Lake Core m3-7y30
System Memory LPDDR3 4 GB, upgradable to 8 GB
Storage Device 64 GB SSD
OS Support Windows 10 IoT 64 bits
LCD 1920 x 1200, 10.1″ TFT LCD with LED backlight
Resolution N/A
Brightness 400 nits
Touch Input True-flat PCAP touch with multi-touch support
WiFi Dual band 2.4 GHz / 5 GHz WiFi (802.11ac) + BT; Optional 4G/LTE
Audio N/A
OTG USB Port N/A
Camera 5MP AF rear facing camera
Standard USB port N/A
Button Power
LAN port N/A
CR Port N/A
Sensor G sensor, light sensor
Built-in Printer N/A
Battery 7.6V/3570 mAh, 27.14 Wh
Speaker/Audio + Mic Yes/Yes
I/O microSD, nano-SIM, Power Jack, micro-USB
Physical Dimension (Tablet Only)
Dimension (W x D x H in mm) 260.7 x 16.8 x 175
Weight (N. W. in g) 980
Environmental
Operation Condition 0°C – 40°C, 20%RH – 90%RH
Storage Condition -20°C – 70°C, 10%RH – 90%RH
Built-in Options
Smart Card Reader ID Tech MiniSmart II, EMV level 2 certified (cannot co-exist with 4G/LTE module)
3G Communication N/A
4G / LTE Communication Selected bands for selected regions (cannot coexist with EMV Chip Card Reader)
NFC N/A
Customer Display N/A
Camera N/A
Scanner N/A
Attachment Options
MSR (TA-220 / TA-300) 3T MSR reader
RFID (TA-220) Support MIFARE Classic 1K & MIFARE Ultralight
Fingerprint sensor (TA-300) Fingerprint Sensor (Active Capacitive technology)
Pistol Grip (PG-201E) N/A
Pistol Grip (PG-500) Swappable battery module (7.2V / 3235 mAh); Optional 2D barcode scanner
Scanner 2D barcode scanner embedded in Pistol Grip
Shoulder Strap + 2nd Battery Option (TA-500) N/A
Shoulder Strap + 2nd Battery Option (TA-600) Swappable battery module (7.2 V / 3235 mAh)
EMV Chip Card Reader N/A
Standalone Options
Removal Battery Charging Rack (CS-100) N/A
Tablet Charging Rack (CS-210 / CS-220) Single charging station for MT Series tablet
Quad Tablet Charging Rack (CS-200) N/A
Hand Strap Hand Strap is available for added security
Protection Cover (MC-408) N/A
