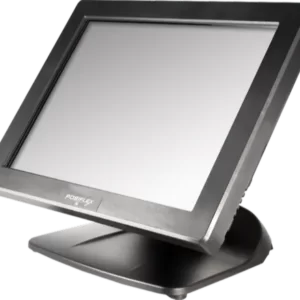

POS Terminal XT-3915

Posiflex Products

The POS Terminal XT-3915 features a 15” resistive touch screen, beautifully sculptured slim body, and sexily curved base stand, the XT-3915 looks right at home at any elegantly decorated store. More than just good looks, the XT-3915 offers ample of performance and flexibility to satisfy the most demanding daily POS operations.

ر.ق6.00 for 3 item(s)

The POS Terminal XT3915 features a 15” resistive touch screen, beautifully sculptured slim body, and sexily curved base stand, the XT-3915 looks right at home at any elegantly decorated store. More than just good looks, the XT-3915 offers ample of performance and flexibility to satisfy the most demanding daily POS operations.



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache

System Memory

DDR3L SO-DIMM x 1, max. 8GB

Storage Device

SATA Storage x 2 (one for HDD/SSD; the other for 1” SSD only) or optional eMMC module

Power Supply

12V/60W

OS Support

DOS, Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

15" TFT LCD

RESOLUTION

1024 x 768

TOUCH

Resistive touch

• • I/O & EXPANSION

• • • • • • • • • •

SERIAL PORT

4, DB9 x 3 + RJ50 x 1, 5V/12V support on all 4 COM ports

STANDARD USB PORT

7, USB 3.0 x 1 + USB 2.0 x 6

PARALLEL PORT

1, via optional conversion cable through service window

POWERED USB PORT

Optional 24V x 1 + 12V x 3 via GEN8E base

LAN PORT

10/100/1000 Mb x 1

DISPLAY PORT

VGA x 1, 12V support for Posiflex monitors

CR PORT

1, control 2 CR via optional Y-cable

PS/2 PORT

1, via optional conversion cable through service window

UPS PORT

Yes

Audio

Internal 2W speaker x 1

EXPANSION SLOT

Mini-PCIe slot x 1

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

372 x 320 x 252.7

Weight

5.6

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

Optional mini-PCIe WiFi/BT module

BRAND
