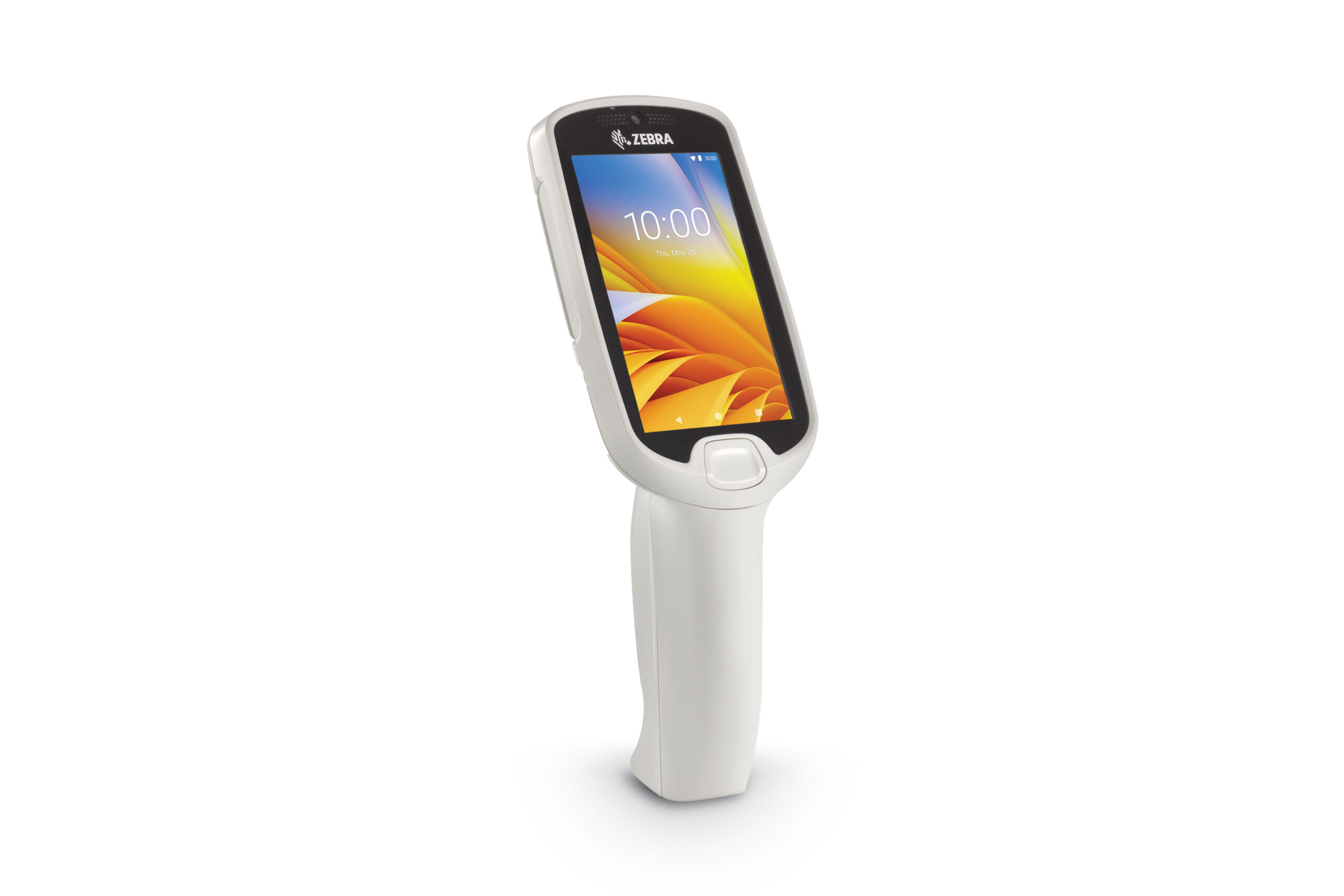

PS20 Plus Mobile Computer


Deliver the Ultimate In-Store Shopping Experience

Give every shopper that enters your store the ultimate personalized shopping experience with the PS20 Personal Shopper while adding increased productivity for your staff.

Physical Characteristics



Dimensions 2.95 in. H x 8.58 in. L x 3.09 in. W
7.50 cm H x 21.80 cm L x 7.86 cm
Weight 290g
Display 4.0 inch capacitive; WVGA; color
Touch Panel Corning Gorilla Glass touch panel with air gap
Imager Window Corning Gorilla Glass
Interface/Communications USB 2.0 Client Cable for device maintenance
Voice Push-to-Talk (PTT) voice support via internal speaker; Zebra Workforce Connect PTT Pro (optional)
Audio Speaker; One (1) microphone (Plus configuration)
Buttons 1 dedicated scan button



Performance Characteristics



Processor Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
Operating System Upgradeable to Android 14
Memory Base and Plus Configurations: 4GB RAM/16GB Flash
Power PowerPrecision+ 3500 mAh capacity Li Ion rechargable battery
Security Verified Boot; Secure Boot



User Environment



Operating Temp. 14° F to 122° F/-10° C to 50° C
Storage Temp. -4° F to 158° F/-20° C to 70° C
Humidity Relative Humidity 5% to 95% non-condensing
Drop Specification Multiple 4 ft./1.2 m drops to concrete over the entire operating temperature range
Tumble Specification 1,000 1.64 ft./0.5 m tumbles at room temperature
Vibration 2g peak, 5 Hz to 2 kHz, 1 hour duration per axis
Thermal Shock -4° to 158° F/-20° to 70° C
Electrostatic Discharge (ESD) (+/-15kV) air, (+/-8kV) contact discharge



Data Capture



Scanning Base model: SE2100 1D/2D imager
Plus model: SE4710 1D/2D imager + Digimarc support
Light Source Base model: White LED Illumination
Plus model: Red LED Illumination with LED dot aim pattern
Camera — Front Facing Plus model only: 5 MP fixed focus

Interactive Sensor Technology



Plus configurations only: 3-axis accelerometer, gyroscope, scanning proximity sensor



WLAN



Radio IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v3/w; Wi-Fi™ certified; IPv4, IPv6, 2×2 MU-MIMO
Data Rates 5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps
Operating Channels (depending on Regulatory) Channel 1-13 (2412-2472 MHz); Channel 36-165
(5180-5825 MHz)
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency
Security and Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA/WPA2 Enterprise (TKIP and AES)
— EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP. EAP-PWD
Certifications WFA (802.11n, WMM-PS, 801.11ac, PMF)
Fast Roam PMKID caching; Cisco CCKM; 802.11r; OKC



WPAN



Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE)



Locationing



Supports Zebra’s Device Tracker; SmartLens, SNAP and MPact Supports Visual Light Communication (VLC)



Warranty



Subject to the terms of Zebra’s hardware warranty statement, the PS20 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement,
