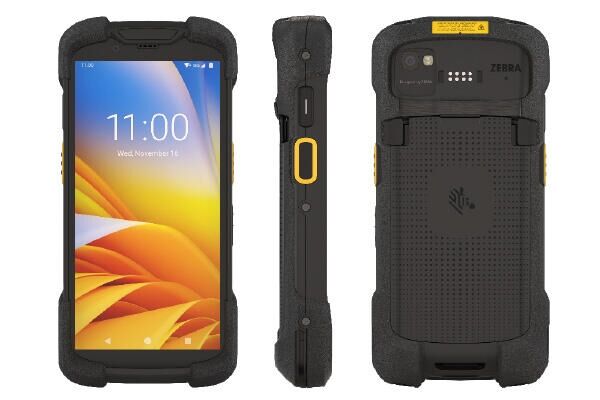

TC78 Mobile Computer


The Wi-Fi 6E/5G Mobile Computer, Re-Imagined for the New Age of Mobility

Designed for workers who spend their days outdoors, the TC78 offers everything you need to support the new generation of mobile solutions—5G fast connections for superior app performance, including streaming video and video calls; the bright 6-inch Full HD display is easy to see—even in direct sunlight. Built to handle 10 ft./3.05 m drops to concrete, it’s ready for life in the field. And it’s lighter, exceptionally balanced, and nearly 20% thinner, easy for any size hand to grip and use.

Physical Characteristics



Dimensions6.96 in. L x 3.38 in. W x 1.12 in. H/176.8 mm L x 85.8 mm W x 28.4 mm H; Grip area: 3.179 in. W x 0.80 in. H/80.75 mm W x 20.3 mm H
Weight12.3 oz./349 g with standard battery
Display6.0 inch Full High Definition+ (1080 X 2160); LED backlight; optically bonded to touch panel
Imager WindowCorning® Gorilla® Glass
Touch PanelMulti mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately); Corning® Gorilla® Glass; Water droplet rejection; fingerprint resistant anti-smudge coating
PowerRechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; Standard Capacity: 4680 mAh (18.01 Watt hours); Extended Capacity: 7000 mAh (26.95 Watt hours); BLE battery: 4680 mAh; Qi compatible Wireless charge battery: 4680 mAh; fast charging, Warm Swap battery mode (standard SKUs); Hot Swap battery mode (premium SKUs)
Expansion SlotUser accessible MicroSD card supports up to 2 TB
SIMTC78 only: 1 Nano SIM and 1 eSIM
Network ConnectionsTC73: WLAN, WPAN (Bluetooth); TC78: WWAN 5G
NotificationsAudible tone; multi-color LEDs; haptic feedback
KeypadOn-screen keypad and Zebra enterprise keyboard
Voice and AudioThree microphones with noise cancellation; vibrate alert; dual speakers for loudness; Bluetooth wireless headset support; high quality speaker phone; PTT headset (Zebra USB-C) support; cellular circuit switch voice; HD Voice, including Super-wideband (SWB); Wideband (WB) and Fullband (FB)
ButtonsProgrammable buttons for maximum flexibility: dual dedicated scan buttons; dedicated push-to-talk button; volume up/down buttons and Trigger button of Trigger Handle via Back I/O
Interface PortsUSB 2.0 (Back I/O — Host Only), USB 3.0 (Bottom Type C) — Super Speed (Host and Client)



Performance Characteristics



CPUQualcomm 6490 octa-core, 2.7 GHz
Operating SystemUpgradeable to Android 16
Memory4 GB RAM/64 GB UFS Flash; 8 GB RAM/128 GB UFS Flash
SecurityFIPS 140-2 cryptography can be enabled on select configurations through a custom SKU request. Supports Secure Boot and Verified Boot



User Environment



Operating Temperature-4° F to 122° F/-20° C to 50° C
Storage Temperature-40° F to 158° F/-40° C to 70° C
Humidity5% to 95% non-condensing
Drop SpecificationMultiple 10 ft./3.05 m drops to concrete at room temp per MIL-STD 810H
Multiple 8 ft./2.4 m drops to concrete over operating temp -20° C to 50° C per MIL-STD 810H
Tumble Specification2000 3.3 ft./1.0 m tumbles, meets or exceeds IEC tumble specification
SealingIP65 and IP68 with battery per applicable IEC sealing specifications
Vibration4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis
Electrostatic Discharge (ESD)+/- 15 kVdc air discharge; +/- 8 kVdc direct discharge; +/- 8 kVdc indirect discharge



Automated Interactive Sensor Technology (IST)



Light SensorAdjusts display backlight brightness
MagnetometerDetects direction and orientation
Motion Sensor3-axis accelerometer with MEMS Gyro
Pressure SensorDetects altitude information for locating
Proximity SensorDetects when the user places the handset against head during a phone call to disable display output and touch input
GyroSenses linear orientation



General Certifications



TAA compliant; ARCore Google certification sustained



Data Capture



ScanningSE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4770 1D/2D Scan Engine
CameraFront — 8 MP; Rear — 16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard); Optical Image Stabilization (OIS) (premium SKUs only); Time of Flight (ToF) Sensor (premium SKUs only)
NFCISO 14443 Type A and B; FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless payment support; ECP1.0 and ECP2.0 polling support; Apple VAS certified; NFC Forum Certified and Google Smart Tap Ready



Wireless WAN Data and Voice Communications (TC78 only)



Radio Frequency BandNorth America: 5G FR1: n2, 5, 7, 12, 13, 14, 25, 26, 29, 38, 41, 48, 66, 71, 77, 78; 4G: B2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 29, 38, 41, 48, 66, 71; 3G: B2, 4, 5; 2G: 850, 1900; Rest of World: 5G FR1: n1, 2, 3, 5, 7, 8, 20, 28, 38, 40, 41, 66, 71, 77, 78; 4G: B1, 2, 3, 4, 5, 7, 8, 17, 20, 28, 38 ,39, 40, 41, 42, 43, 66, 71; 3G: 1, 2, 3, 4, 5, 8; 2G: 850, 900, 1800, 1900; China/Japan: 5G FR1: n1, 3 ,5, 8, 38, 40, 41, 77, 78, 79; 4G: B1, 3, 5, 7, 8, 19, 34, 38, 39, 40, 41, 42; 3G: B1, 5, 8 ,19; 2G: 850, 900, 1800
GPSGPS, GLONASS, Galileo, Beidou, QZSS
Dual-Band GNSS — concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA
MultimediaWi-Fi Multimedia™ (WMM) and WMM-PS including TSPEC

Wireless LAN



RadioIEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2×2 MU-MIMO; Wi-Fi 6E (802.11ax); Wi-Fi™ certified; Wi-Fi™ 6E Certified; Dual Band Simultaneous; IPv4, IPv6
Data Rates5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps; 2.4 GHz: 802.11b/g/n/ax — 20 MHz up to 286.8 Mbps
6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps
Operating ChannelsChannel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20/40/80/160 MHz; Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
Security and EncryptionWEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; TC78 WWAN models only — EAP-SIM, EAP-AKA; WPA3 Enterprise 192-bit mode (GCMP256) – EAP-TLS; Enhanced Open (OWE)
CertificationsWi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6; Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; QoS Management; OCE
Fast RoamPMKID caching; Cisco CCKM; 802.11r; OKC



Wireless PAN



Bluetooth
Class 2, Bluetooth v5.2 and Secondary BLE for beaconing within BLE battery



Warranty



Subject to terms of Zebra’s hardware warranty statement, the TC73/TC78 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:
www.zebra.com/warranty



Environmental Compliance



RoHS Directive 2011/65/EU RoHS Amendment (EU) 2015/863 (EN IEC 63000:2018 Standard); For a complete list of product and materials compliance, please visit
www.zebra.com/environment



Recommended Services



Zebra OneCare™ Essential and Select support services; Zebra Visibility Services — VisibilityIQ™ Foresight. For information on Zebra services, please visit
www.zebra.com/services



Footnotes



1. CBRS is available in the US only.
2. Compared to the Qualcomm SD660 processor.
3. Compared to prior generations of the TC7X family.
4. Available in the TC78 only.
5. Distance dependent on symbology type and size.
