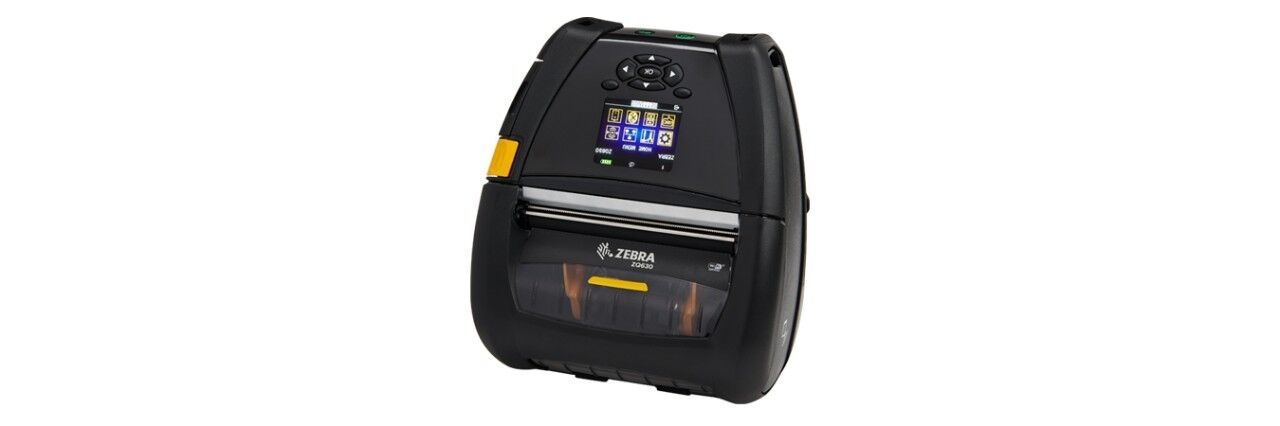

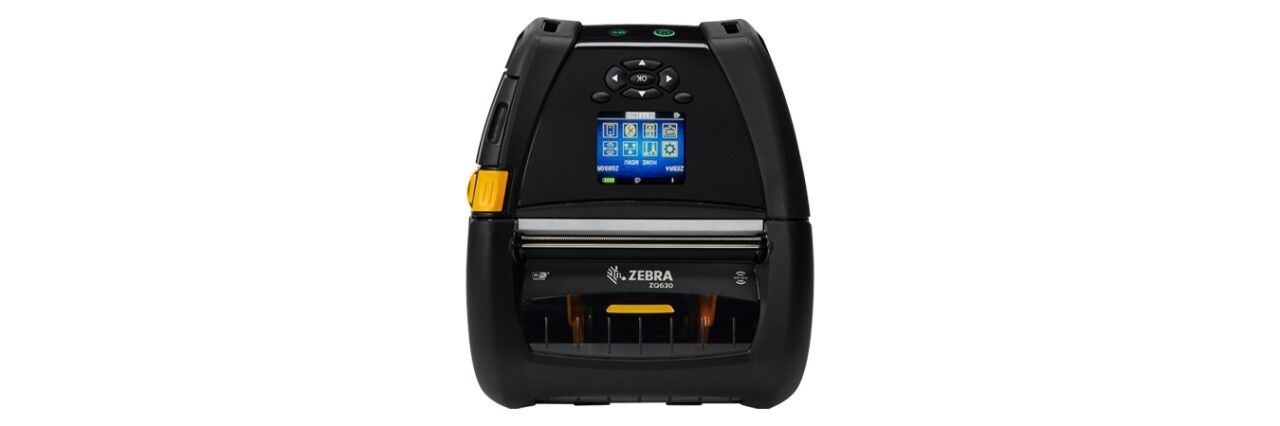

RFID Printers ZQ630
Premium Mobile Printing and RFID Capabilities for Maximum Productivity, Ease of use and Manageability Always on the edge of innovation, Zebra offers the only RFID mobile printers to give your workers a leading advantage. The ZQ630 RFID rounds out Zebra’s ZQ600 Series printers with added advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Save time, reduce errors, print and encode RFID labels and tags on the spot with ease. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity—6800 mAh—power every minute of the longest shift. The instant wake-up feature on Wi-Fi or Bluetooth ensures the ZQ630 RFID never sleeps on the job. And, the ZQ630 RFID is easier to integrate, manage, setup and secure thanks to Zebra’s Link-OS® operating system and powerful Print DNA suite of applications, utilities and developer tools. The ZQ630 RFID mobile printer—giving you the leading edge for premium performance anywhere.
Premium Mobile Printing and RFID Capabilities for Maximum Productivity, Ease of use and Manageability Always on the edge of innovation, Zebra offers the only RFID mobile printers to give your workers a leading advantage. The ZQ630 RFID rounds out Zebra’s ZQ600 Series printers with added advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Save time, reduce errors, print and encode RFID labels and tags on the spot with ease. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity—6800 mAh—power every minute of the longest shift. The instant wake-up feature on Wi-Fi or Bluetooth ensures the ZQ630 RFID never sleeps on the job. And, the ZQ630 RFID is easier to integrate, manage, setup and secure thanks to Zebra’s Link-OS® operating system and powerful Print DNA suite of applications, utilities and developer tools. The ZQ630 RFID mobile printer—giving you the leading edge for premium performance anywhere.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| Operating System | Link-OS® |
| RESOLUTION | 203 dpi resolution (8 dots/mm) |
| Memory | 256 MB RAM; 512 MB Flash (standard) |
| Maximum Print Width | ZQ630: 4.1 in./104 mm |
| Maximum Print Speed | Up to 4.5 in./115 mm per second |
| Media Sensors | Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time |
| PRINT LENGTH | Maximum: 32 in./813 mm, Minimum: 0.5 in./12.7 mm |
| Power | 6800 mAh (nominal) 49.4 Wh removable PowerPrecision+ Li-Ion battery |
| Maximum Label and Liner Length | 0.5 in./12.7 mm to 32 in./813 mm or continuous |
| Media Width | ZQ630: 2.0 in./51 mm to 4.4 in./112 mm (linered) |
| Media Roll Size | 2.6 in./66 mm O.D. on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core |
| Media Thickness | 2.3 mil to 5.5 mil tag stock or 6.5 mil label stock |
| Media Type | black bar, Die-cut labels and tags, receipt paper, RFID (ZQ630 RFID compatible) |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| Operating Temperature | -4°F to 122°F/-20°C to 50°C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage temperature | -13°F to 149°F/-25°C to 65°C1 |
| Storage Humidity | 10% to 90% non-condensing |
| FIRMWARE | CPCL, EPL and ZPL programming languages, ZBI 2.0 |
| Barcode Symbologies | • • • • • • • • • • |
| Barcode Ratios | 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1 |
| 1D | 2 and 5 digit add-on, Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2 of 5, UCC/EAN-128, UPC-A, UPC-E |
| 2D | Aztec, Data Matrix, FIM Postnet, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, MSI/ Plessey, PDF417, QR code, TLC 39 |
| BRAND |
