RFID Printers ZT400

Zebra Products In Qatar

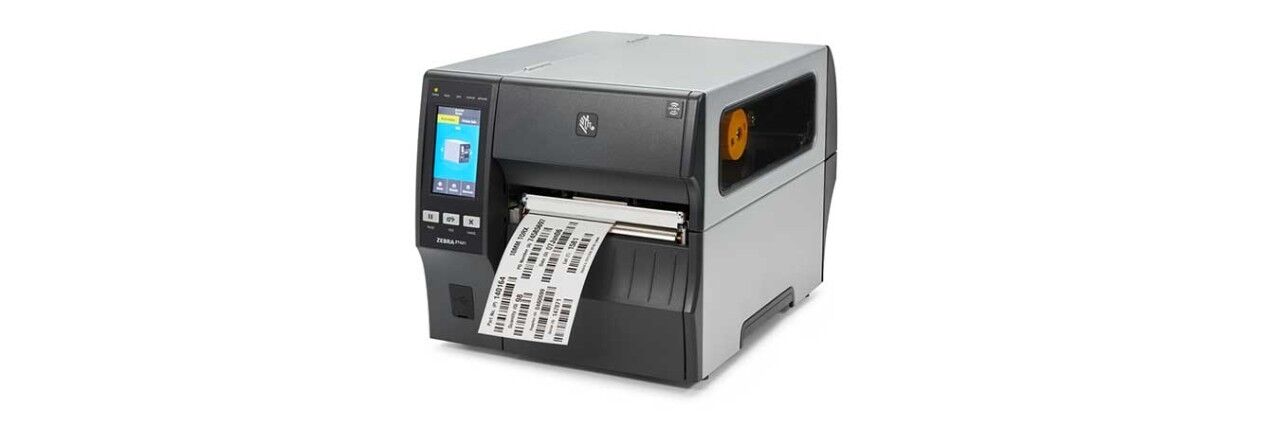

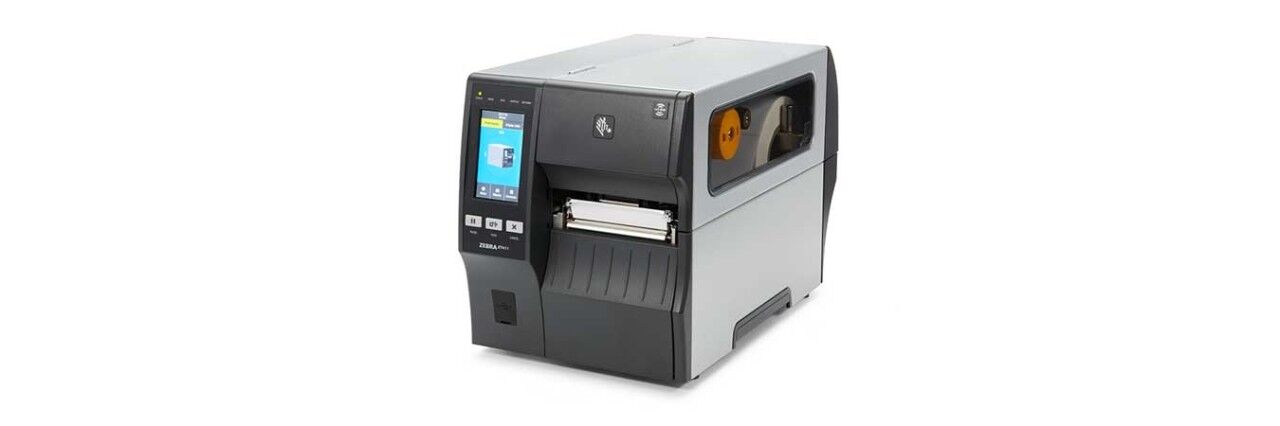

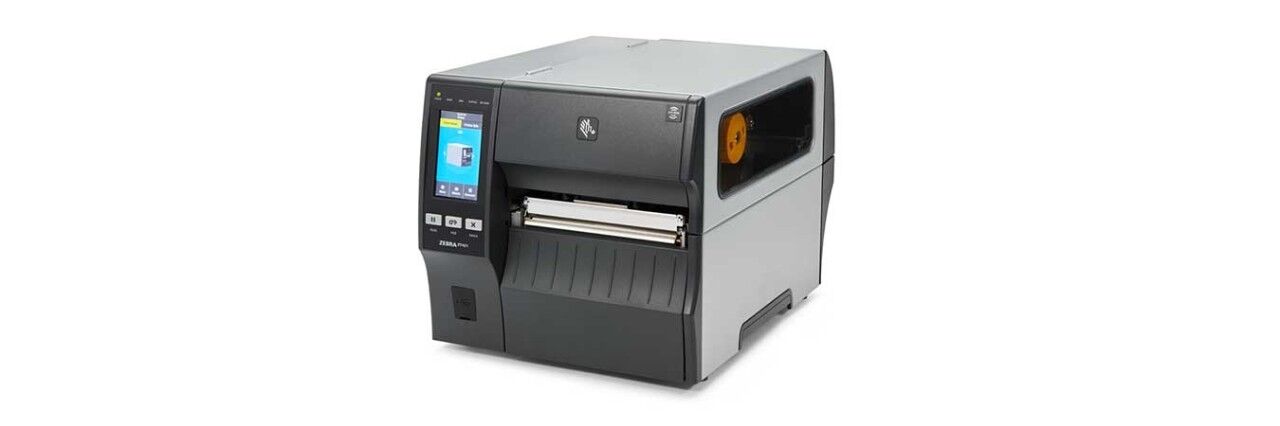

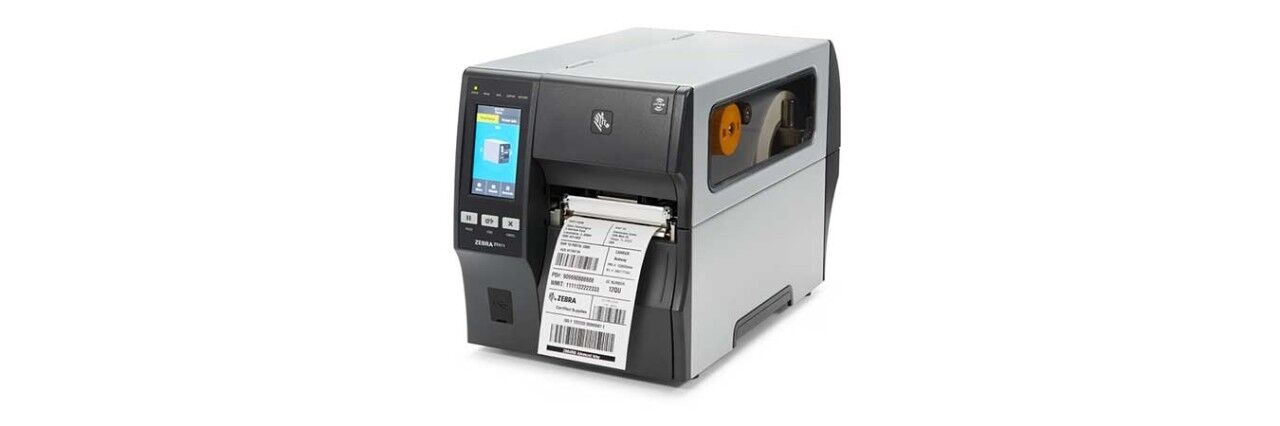

Pairing rugged quality with UHF RFID capabilities, the ZT400 Series RFID printers/encoders help keep your critical operations running efficiently. Known as price-performance leaders in RFID labeling, the ZT400 Series offers a factory- or field-installable UHF RFID encoder to support a broad range of applications across several industries. See printer status at a glance and manage settings quickly–including RFID–using the large color touch display. Featuring Zebra’s Print DNA suite of applications, utilities and developer tools–all powered by Link-OS®–these printers are easy to integrate, manage and maintain from any location around the globe. Optimized to accurately and efficiently print and encode labels for today’s item-level tracking applications, the ZT400 Series RFID printers give you greater tracking abilities, deeper visibility and enterprise insights in an ever-competitive business environment.

Pairing rugged quality with UHF RFID capabilities, the ZT400 Series RFID printers/encoders help keep your critical operations running efficiently. Known as price-performance leaders in RFID labeling, the ZT400 Series offers a factory- or field-installable UHF RFID encoder to support a broad range of applications across several industries. See printer status at a glance and manage settings quickly–including RFID–using the large color touch display. Featuring Zebra’s Print DNA suite of applications, utilities and developer tools–all powered by Link-OS®–these printers are easy to integrate, manage and maintain from any location around the globe. Optimized to accurately and efficiently print and encode labels for today’s item-level tracking applications, the ZT400 Series RFID printers give you greater tracking abilities, deeper visibility and enterprise insights in an ever-competitive business environment.



Dimensions

ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H 495 mm L x 269 mm W x 324 mm H, ZT421: 19.5 in. L x 13.25 in. W x 12.75 H 495 mm L x 336 mm W x 324 mm H

Weight

ZT411: 36 lbs./16.33 kg, ZT421: 40 lbs./18.14 kg

• • SPECIFICATION

• • • • • • • • • •

RESOLUTION

203 dpi/8 dots per mm, 300 dpi/12 dots per mm (optional), 600 dpi/24 dots per mm (optional for ZT411 only)

Memory

256 MB SDRAM memory, 512 MB on-board linear Flash memory

Maximum Print Width

ZT411: 4.09 in./104 mm, ZT421: 6.6 in./168 mm

Maximum Print Speed

ZT411: 14 ips/356 mm per second, ZT421: 12 ips/305 mm per second

Media Sensors

Adjustable dual media sensors: transmissive and reflective

PRINT LENGTH

ZT411 • 203 dpi: 157 in./3988 mm • 300 dpi: 73 in./1854 mm • 600 dpi: 39 in./991 mm, ZT421 • 203 dpi: 102 in./2591 mm • 300 dpi: 45 in./1143 mm

Media Width

ZT411 • 1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter • 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind, ZT421 • 2.00 in./51 mm to 7.0 in./178 mm tear/cutter • 2.00 in./51 mm to 6.75 in./171 mm peel/rewind

Media Roll Size

8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core

Media Thickness

0.0023 in./0.058 mm to 0.010 in./0.25 mm, On-metal option: up to 0.059 in./1.5 mm

Media Type

Black Mark, Continuous, die-cut, Notch

Ribbon Length

1476 ft./450 M

Ribbon Width

ZT411: 2.00 in./51 mm to 4.33 in./110 mm, ZT421: 2.00 in./51 mm to 6.85 in./174 mm

Core I.D.

1.0 in./25 mm I.D.

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Direct thermal: 32º F to 104º F/0º C to 40º C, Thermal transfer: 40º F to 104º F/5º C to 40º C

Storage/Transportation environment

-40º F to 140º F/-40º C to 60º C

Operating Humidity

20% to 85% non-condensing

Storage Humidity

5% to 85% non-condensing

FIRMWARE

EPL and EPL2™, ZBI 2.0, ZPL and ZPL II®

Options and Accessories

• • • • • • • • • •

RFID

Field-installable on-metal RFID kit available (ZT411 only, not available on the 600 dpi model)

Connectivity

10/100 Ethernet, Applicator interface, Dual band 802.11ac Wi-Fi and Bluetooth, Parallel (bi-directional interface)

Media Handling

1 in. I.D. Core media supply hanger (ZT411 only), Cutter: Front-mount guillotine cutter and catch tray, Ink-side in ribbon supply spindle, Peel: Front-mount, passive peel option, Peel: Liner take-up — additional full-roll liner take-up spindle accommodates standard printer base, Rewind: Internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (factory installed only)

Keyboard Display Unit

ZKDU™ keyboard display units for stand-alone printing applications

FONTS AND GRAPHICS

16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts, 64 MB user-available non-volatile memory storage for downloadable objects, 8 MB user-available SDRAM, Asian and other international scalable and smooth bitmapped fonts, Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0, Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats, IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control, Unicode™: For multi-language printing

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 11, Code 128 with subsets A/B/C and UCC Case Codes, Code 39, Code 93, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, ISBT-128, Logmars, MSI, Planet Code, Plessey, Postnet, Standard 2-of-5, UPC and EAN 2-or 5-digit extensions, UPC-A, UPC-E

2D

Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, RSS-14 (and composite), TLC 39
