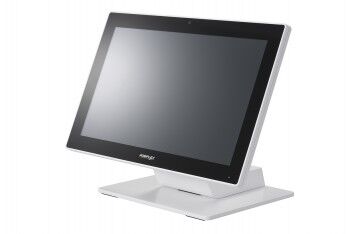

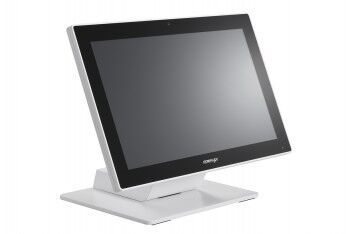

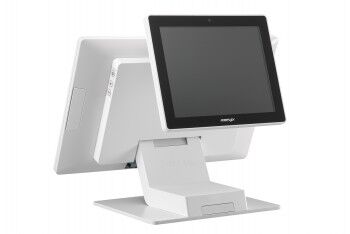

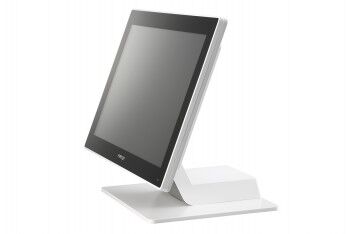

POS Terminal RT-5116
The RT-5100 Series radiates in its new design – featuring an ultra-slim and sleek look that exhibits elegance. It is uncompromising to the space requirements and provides better cable management and easy maintenance. The new RT-5100 Series is taking POS terminal design into the next level, setting your brand image apart from the others.
SKU: RT-5116
POS Terminal RT-5116
The RT-5100 Series radiates in its new design – featuring an ultra-slim and sleek look that exhibits elegance. It is uncompromising to the space requirements and provides better cable management and easy maintenance. The new RT-5100 Series is taking POS terminal design into the next level, setting your brand image apart from the others.
The RT-5100 Series radiates in its new design – featuring an ultra-slim and sleek look that exhibits elegance. It is uncompromising to the space requirements and provides better cable management and easy maintenance. The new RT-5100 Series is taking POS terminal design into the next level, setting your brand image apart from the others.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| Processor | Intel 7th Generation Kaby Lake-U Core i5 Processor |
| System Memory | DDR4 SO-DIMM slot x 2, max. 16GB |
| Storage Device | SATA Storage x 2 |
| Raid Function | Yes, SATA HDD default x 2 |
| Intel VPro Support | YES |
| TPM | Yes |
| Power Supply | 12V / 150W |
| OS Support | Windows 10 IoT 64 bit |
| • • DISPLAY & TOUCH | • • • • • • • • • • |
| LCD | 15.6" TFT LCD |
| RESOLUTION | 1920 x 1080 |
| TOUCH | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| SERIAL PORT | 3, DB9 x 1+ RJ50 x 2, 5V/12V support on all COM ports |
| STANDARD USB PORT | 3, USB 3.0 x 2 + USB 2.0 x 1 |
| POWERED USB PORT | 24V x 1 |
| LAN PORT | 10/100/1000 Mb x 1 |
| DISPLAY PORT | mini DP x 1 |
| CR PORT | 1, control 2 CR via optional Y-cable, supporting 24V cash drawer |
| Audio | Internal 2W speaker x 1 |
| EXPANSION SLOT | M.2 slot x 1 |
| • • PHYSICAL DIMENSION | • • • • • • • • • • |
| DIMENSION (W X D X H IN MM) | 402 x 207 x 297 |
| Weight | 3.3 |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| OPERATING CONDITION | 0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD) |
| STORAGE CONDITION | -20°C – 70°C, 10%RH – 90%RH |
| • • BUILT-IN OPTIONS | • • • • • • • • • • |
| WIFI | M.2 WiFi/BT module |
| CAMERA | 1MP wide angle camera |
| AG GLASS | Cannot coexist with built-in camera |
