Staff Transmitter

LRS

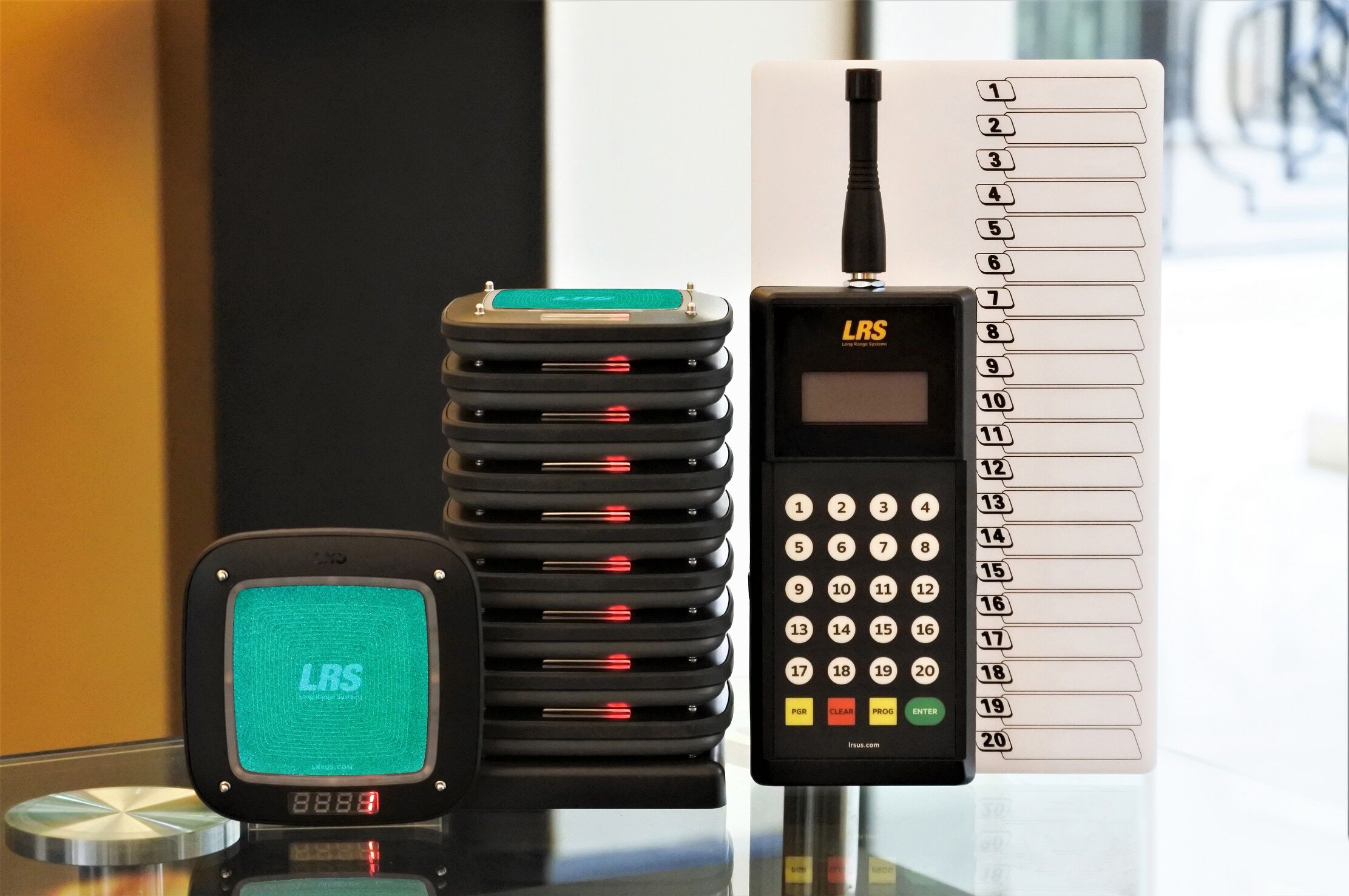

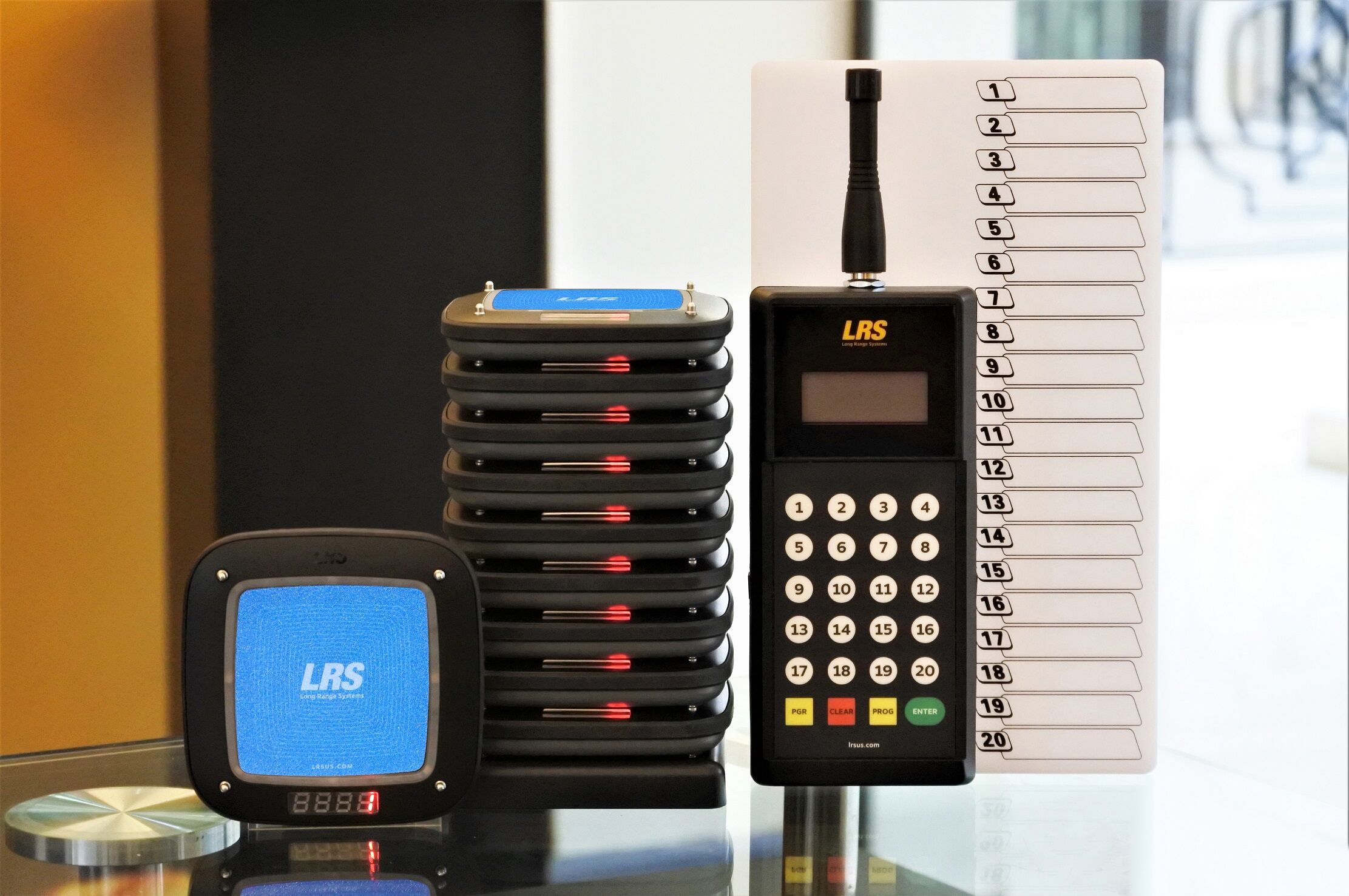

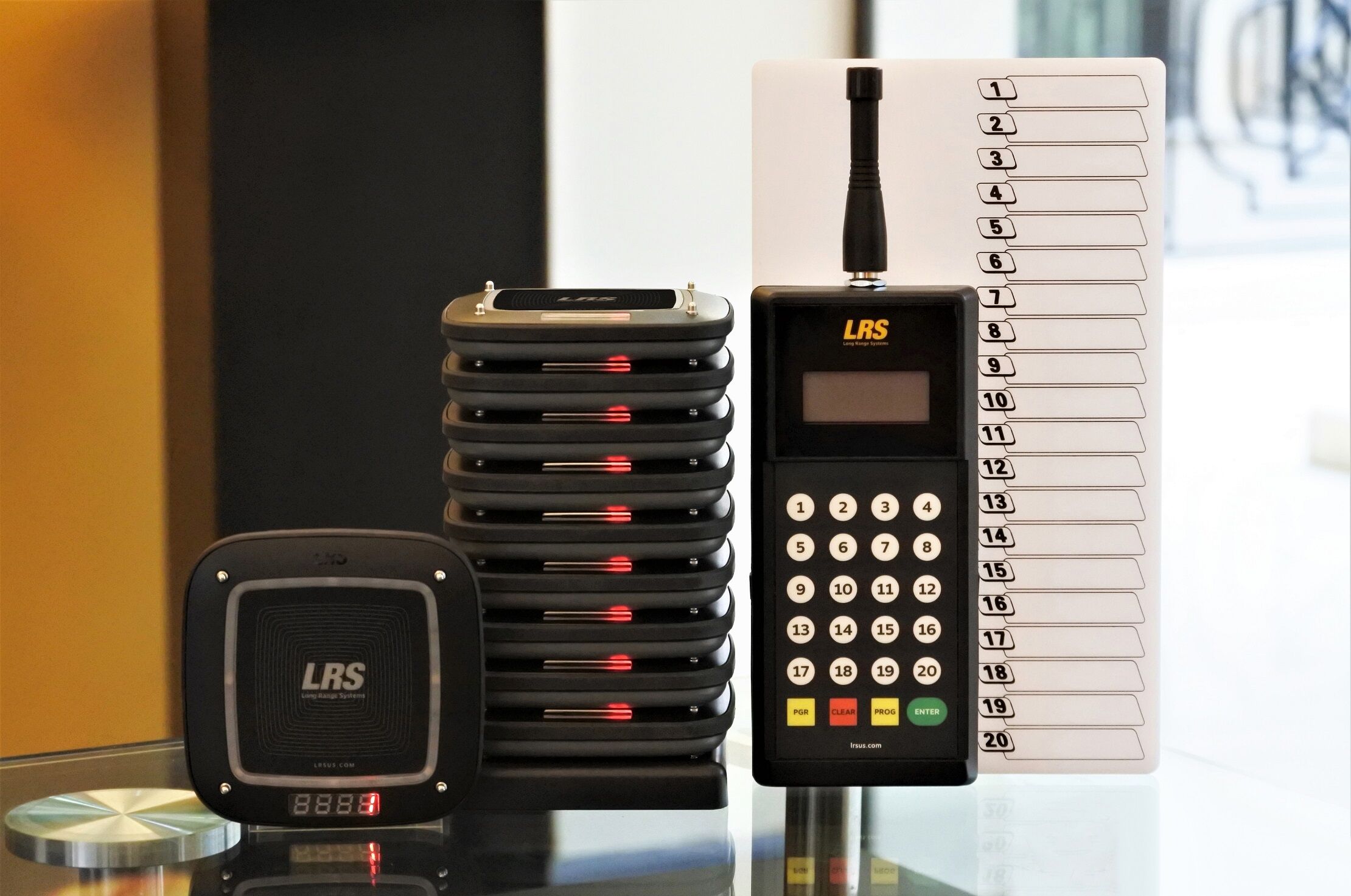

TX-9560-EZ is the simplest and most affordable notification solution created specifically to improve your server efficiency. This transmitter has been designed to provide your kitchen staff and customers, with the ability to send instant messages to servers when food orders are ready for pick up or when customers request On-Demand service while they dine. This transmitter enhances your overall customer experience and helps increase your sales instantly. With this system, you ensure that servers are immediately notified no matter where they are.

Add to quote

TX-9560-EZ is the simplest and most affordable notification solution created specifically to improve your server efficiency. This transmitter has been designed to provide your kitchen staff and customers, with the ability to send instant messages to servers when food orders are ready for pick up or when customers request On-Demand service while they dine. This transmitter enhances your overall customer experience and helps increase your sales instantly. With this system, you ensure that servers are immediately notified no matter where they are.



SKU: TX-9560-EZ Categories: , Tags: , , , , , , , Brand:
• • SPECIFICATION

• • • • • • • • • •
Description

20 1 touch Pager Numbers, 4-pin port on bottom side of transmitter for interface with 4-pin programmer (99-0216), 4×6 keypad with LCD for user interface, Dry erase board, Frequency Range: 433-470 MHz, Pager values up to 799, Transmit LED
Harware Versions

9560 revision D (in production version)
Firmware Versions Release Version

V 2.40
Power

4 – 1.2V NiMH rechargeable batteries. Charge lasts 1 – 3 days depending on usage., Charging Power Supply 9-12V 4 amp DC (Preferred Power Supply L1-0034), Compatible with 10VAC power Supply (not recommended)
Paging Transmitter

10 kHz deviation, 25kHz Bandwidth, Baud Rate 625 for LRS Guest and 1200 for LRS Alpha pagers, FSK modulation, Power Output: <10mW, Standard 3” 400MHZ Rubber Duck style Antenna, BNC connector, Supports LRS Guest , LRS Staff, 3DPI, LRS Alpha and LRS Alpha coaster
M ax Power ERRP

Power Output:<10mW
Supported Paging

LRS 3 Digit (not produced), LRS Alpha (E467), LRS Alpha Coaster, LRS Guest (Coaster), LRS Staff (SP4)
System ID Range

0-49
Alpha Numeric Messages

1 message is configured as a default message, 10 stored Messages, 64 Characters Maximum, Configurable with the LRS 4-pin Dongle
Paging Freatures

Default mode/message is sent for every message or page until new default mode/message is selected, Dimensions: 6” (w) x 10.5” (h) x 1.75” (d), Group Paging, Low Battery Indicator, Mode type such vibration, beeps and alert times are selectable but only 1 is default paging mode, Only 1 type of pager is selectable ie. staff pagers, or guest pagers, or alpha pagers, Pager Programming, PGR button for pager numbers 21-799, Range Test Function, Up to 10 different messages can be stored in Memory, but only 1 message is default
Regulatory Certifications

ANSI C63.4:2009, European Community: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2010, FCC Part 15 Subpart C:2008, United States and Territories: FCC Part 15.231
Ordering Information

TX- 9560EZ – 467 (Cyprus, Iraq, Iran, Lebanon, Libya, Saudi Arabia, Turkey, U.A.E and Yemen), TX-9560EZ – 434 (Algeria, Bahrain, Egypt, Jordan, Kuwait, Morocco, Oman, Qatar and Tunisia)
Frequency Shipped

434.000MHz (Algeria, Bahrain, Egypt, Jordan, Kuwait, Morocco, Oman, Qatar and Tunisia), 467.750MHz (Cyprus, Iraq, Iran, Lebanon, Libya, Saudi Arabia, Turkey, U.A.E and Yemen)
