TD50 Touch Display
, , ,

TD50 Touch Display

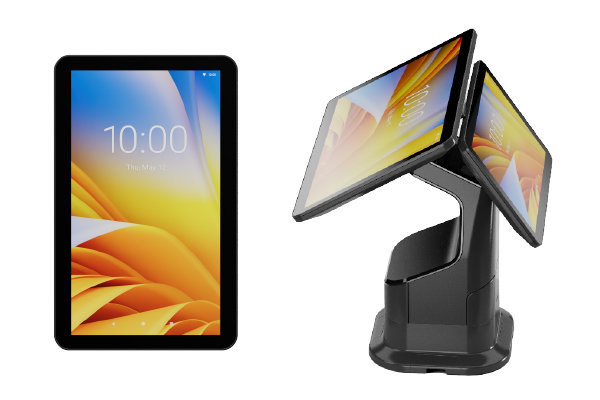

TD50 Touch Display is a key component in the Zebra Kiosk System — a comprehensive, flexible and modular solution created to meet a wide variety of self service needs across industries, from retail and hospitality to healthcare, travel, government, banking and more. When kiosk transactions require your customers or associates to verify or input information, the TD50 makes it easy. The KC50 Android™ Kiosk Computer at the heart of every Zebra Kiosk pushes the right information to the TD50, allowing customers to view and enter information required to complete a transaction. Customers can view purchases in a retail store as they are scanned, verify orders in a quickserve restaurant, verify that a hotel reservation is accurate during check-in, verify that the destination for a train or bus ticket is accurate, ensure discounts are applied and more. Associates can monitor end-user self-service interactions and assist quickly and efficiently when needed. And with this high-resolution bright screen, no matter what type of information is presented, it’s easy to read.

Add to quote

TD50 Touch Display Expand flexibility for Zebra Kiosks

The TD50 increases the flexibility of the Zebra Kiosk System by enabling easy interactions with customers. This second display allows customer to view and enter the information required to complete a transaction.

Inviting consumer design

The TD50 and the KC50 share the same eye-catching sleek design with a modern look that invites customer interaction. And the bright screen is easy to see in any environment.

Rugged and ready for all day use

The TD50 is designed to handle the demands of deployment in public spaces. It is ball-drop tested to ensure it can withstand the sudden impacts that are inevitable in public spaces. It’s dust-proof and can handle liquids that are sprayed or splashed from any angle.

Fingerprint resistant

The anti-smudge display coating is fingerprint resistant to keep it looking good all day, despite constant use.

Single cable installation

Just plug the TD50 into the USB-C port on the KC50 Kiosk Computer to provide power and data connectivity. And with just one cable, it’s easy to keep the kiosk looking clean and neat.

Versatile mounting options

Different mounting configurations make it easy to place your Zebra Kiosk System wherever you need it. Mount it on a wall, or choose a modular stand system to deploy on a floor, counter or desk. The stands can house additional peripherals, such as a power brick or a printer. And you can create a double-sided kiosk with the TD50 that allows customers to view and authorize transactions.

Easy viewing

The Full High Definition bright display is easy to read in any lighting.

More than just a mirror

The TD50 can display the same information on the KC50 Kiosk Computer, or it can display different information, allowing you to meet the needs of many use cases.

Categories: , , , Brand: ,

Physical Characteristics

  • Dimensions: 15.17 in (L) x 9.43 in (W) x 1.51 in (H)
    (385.2 mm x 239.4 mm x 38.3 mm)

  • Weight: 5.3 lbs (2.4 kg)

  • Display: 15.6 in Full HD (1080 x 1920), LED backlight, 300 NITS, optically bonded to touch panel

  • Touch Panel: 2.0 mm Alkali-Aluminosilicate strengthened glass, fingerprint-resistant anti-smudge coating, multi-mode capacitive touch (bare or gloved input)

  • Connectivity:

    • USB-C for power, display, and touch interface (KC50)

    • USB-C power-only connector (for non-KC50 devices)

  • Notifications: Power LED

  • Buttons: Power and brightness adjustment buttons

  • Mounting & Stands: VESA 100 / VESA 75 mounting, desktop/floor/countertop stand options with printer box and height risers

User Environment

  • Operating Temperature: +32°F to +104°F (0°C to +40°C)

  • Storage Temperature: -40°F to +158°F (-40°C to +70°C)

  • Humidity: 5% to 95% non-condensing

  • Sealing: IP65 (per IEC 60529)

  • Vibration:

    • Sine: 4 g’s PK (5 Hz to 2 kHz)

    • Random: 6 g RMS (20 Hz to 2 kHz), 60 min per axis, 3 axes

  • Electrostatic Discharge (ESD):

    • ±15 kV air discharge

    • ±8 kV direct discharge

    • ±8 kV indirect discharge

  • Power: USB-C interface for power input (5 VDC up to 10 W)

Warranty

The TD50 is covered under Zebra’s hardware warranty for one (1) year from the date of shipment (subject to Zebra’s warranty terms).
Complete warranty details: www.zebra.com/warranty

Recommended Services

  • Zebra OneCare™ Essential or Select: Maintenance plans to avoid unexpected repair costs and minimize downtime.

  • VisibilityIQ™ Foresight: Provides analytics to identify potential issues before they affect operations.

  • Professional Services: Device staging with custom images and applications before deployment.
    More info: www.zebra.com/services
