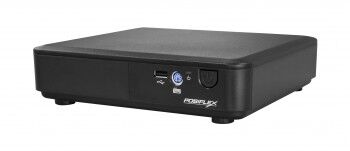

POS Box TX-2300

POSIFLEX PRODUCTS

The TX-2300 Series is a multi-purpose control box that runs on an Intel Apollo Lake dual core CPU. It offers a vast range of I/O connectivity options including HDMI ports x 2 to connect POS peripherals, and can be used as a full fledge POS Box, a Kitchen Display System (KDS), a digital signage controller or any industrialized applications.

The TX-2300 Series is a multi-purpose control box that runs on an Intel Apollo Lake dual core CPU. It offers a vast range of I/O connectivity options including HDMI ports x 2 to connect POS peripherals, and can be used as a full fledge POS Box, a Kitchen Display System (KDS), a digital signage controller or any industrialized applications.



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Apollo Lake N3350 Dual Core CPU, up to 2.40 GHz, 2M Cache

System Memory

DDR3L SO-DIMM x 1, max. 8GB

Storage Device

SATA Storage x 1

Power Supply

12V/40W

OS Support

Linux per request, Win 10 IoT

SERIAL PORT

4, DB9 x 2 + RJ50 x 2, 5V/12V support on all COM ports

PARALLEL PORT

1, via optional cable from service window

STANDARD USB PORT

6, USB 3.0 x 2 + USB 2.0 x 4

LAN PORT

10/100/1000 Mb x 1

DISPLAY PORT

VGA x 1 (12V support for Posiflex monitors) + HDMI x 2

CR PORT

1, control 2 CR via optional Y-cable

PS/2 PORT

Yes

Audio

Internal 2W speaker x 1 + Line-out

EXPANSION SLOT

M.2 slot x 1

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

M.2 WiFi/BT module

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

220 x 202 x 56

Weight

1.12

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH
