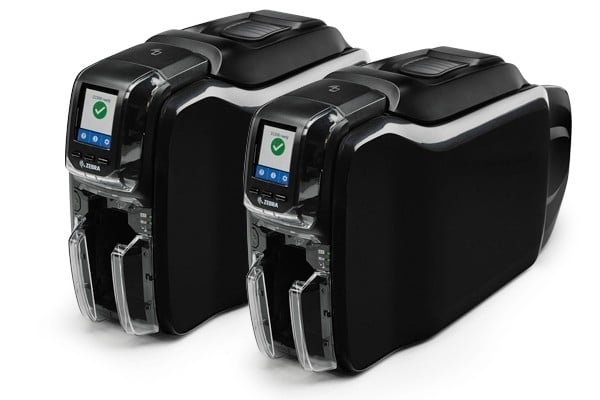

ZC350 Card Printer

Zebra Products In Qatar

DESIGN AND PRINT VIRTUALLY ANY CARD WITH GROUND-BREAKING SIMPLICITY AND SPEED

When you want it all in a card printer, the ZC350 delivers. Advanced printing options allow you to create virtually any design you can dream up. With support for just about every encoding technology, you can create just about any type of card — credit, debit, identity, access, loyalty, public transportation passes and more. You get the fastest print speeds — up to twice as fast as some competitive printers. You get foolproof push-button simplicity, whether you’re printing single or dual sided cards with simple monochrome or very complex color artwork. And with its cool design, the slimmest profile and the lowest clearance, the ZC350 can fit in more spaces than any other printer in its class. The ZC350 Series — the card printer that delivers it all.

Groundbreaking New Driver With a Graphical User Interface

The intuitive interface in the newly-designed driver makes it easier than ever to print cards. Settings are grouped logically into tabs where they are easily accessible with a click. A visual display makes printing simple monochrome and complex color cards equally easy, allowing you to instantly see how changing settings impacts card design — eliminating the time and cost to repeatedly print test cards.

Painless Plug-and-Play Set-up

The ZC350 is designed to work right out of the box. There’s no time-consuming complicated set-up — just plug it in and start reaping the benefits the day your printer arrives.

A New Smart Card Feeder Handles Card Thicknesses On-the-Fly

The card feeder instantly adjusts to the thickness of each card — no more adjusting for different card stocks.

Revolutionary New Hopper Design

The completely re-designed hopper makes loading and unloading cards simple. With the saloon-style output doors, there’s nothing to open — just grab the cards you need. And the input and output hoppers have the same capacity, reducing the need to refill and empty the hoppers.

Fool-Proof Ribbon Changing

Changing a ribbon has never been so uncomplicated. The newly designed ribbon door latch unlocks and opens in one motion. And with the unique doorhandle style grip and embedded smartchips, you always know when and how to change ribbons.

• • SPECIFICATION

• • • • • • • • • •

STANDARD FEATURES

100 card covered feeder (30 mil), 16-character LCD operator control display, 300 dpi (11.8 dots/mm) print resolution, 45 card capacity output hopper (30 mil), Auto calibration of ribbon, Eco-Friendly Load-N-Go drop-in ribbon cartridges, Microsoft® Certified Windows drivers, Print Touch NFC tag for online printer documentation and tools, Two-year (unlimited passes) original printhead, Two-year warranty on printer, USB 2.0 connectivity, ZRaster™ host-based image processing

Printing

130 cph YMCKO, 545 cph monochrome, Dye-sublimation thermal transfer direct to card, Edge-to-edge printing on standard CR-80 media, Full color or monochrome printing, Single-sided printing

Ribbon

Black Monochrome: 1000 images/roll, White Monochrome: 500 images/roll, YMCKO: 100 images/roll

Card Thickness

10 – 40 mil

Card Size

2.12" (54 mm) x 3.38" (86 mm), CR-80, ISO 7810 format, Type ID-1

Card Material

PVC and PVC composite

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

Operating Humidity: 20% to 65% non-condensing, Operating Temperature: 60ºF to 86ºF/15ºC to 30ºC, Storage Humidity: 20% to 70% non-condensing, Storage Temperature: 23ºF to 131ºF/-5ºC to 55ºC

Media Storage

Do not store in direct sunlight, Humidity: 35% to 65% non-condensing, Temperature: 41ºF to 77ºF/5ºC to 30ºC

Electrical

Auto-switching single-phase AC power, FCC Class A, Frequency range: 47-63 Hz, Operating range: 90-132VAC and 190-264VAC RMS

Interface

Built-in 10/100 Ethernet — optional*, USB V2.0 (cable included) — standard

Length

9.3" (236 mm)

Width

7.9" (200 mm)

Height

13.0" (330 mm)

Weight

11.6 lbs (5.3 kg)

Microsoft Windows® Certified Printer Drivers Supported

Windows 7® (32 and 64 bit), Windows 8® and Win 8 Pro (32 and 64 bit), Windows Server 2008 (32 and 64 bit), Windows Server 2012 (64 bit), Windows Server® 2003 (32 bit), Windows Vista® (32 and 64 bit), Windows® XP (32 bit)

Optional Features

10/100 Ethernet connectivity, 30 mil cards only, high and low coercivity, Magnetic stripe encoder — ISO 7811 (new and pre-encoded); tracks 1, 2 and 3, Manual front card feeder bezel*, Single card cleaner rolling kit*, stripe down, Zebra OneCare extended product warranty programs

Product Warranty

For the complete warranty statement, please visit: www.zebra.com/warranty., The ZXP Series 1 is warranted against defects in workmanship and materials for a period of 2 (two) years from the date of shipment.

BRAND

Standard Features

• 300 dpi (11.8 dots/mm) print resolution
• 2 GB flash memory
• Image size: 1006 x 640 pixels
• Auto calibration of ribbon
• USB 2.0 and Ethernet 10/100 connectivity
• 100 card capacity auto-adjusting input hopper (30 mil)
• 100 card capacity output hopper (30 mil)
• Manual card feeding capability with LED bezel
• Graphical color LCD
• 3 Tricolor printer status indicator lights
• Kensington® secure lock slot
• Print Touch NFC tag for online printer help and documentation access
• Printer host authentication
• Data encryption
• Three-year limited warranty on printer and printhead

Printing Specifications

• Dye-sublimation thermal transfer direct to card print method
• Full-color or monochrome printing
• Single and dual-sided printing
• Edge-to-edge printing on standard CR-80 media
Printing throughput (cards per hour) based on batch printing with USB connectivity. Note that times may vary depending on the computer configuration.
• 225 cards/hour single-sided YMCKO
• 150 cards/hour dual-sided YMCKOK
• 1,000 cards/hour single sided monochrome
• 500 cards/hour dual sided monochrome

Media Specifications

Supplies Specifications: NOTE: The ZC350 printer is designed to work only with Zebra genuine ribbons. Ribbons are included in a simple-to-load recyclable cartridge.
Ribbon Description Cartridge Image Count
YMCKO* 200
YMCKO* 300
YMCKOK* 200
½ YMCKO* 400
½ YMCKOKO* 250
YMCKLL* 200
YMCPKO* 200
SrDYMCKO* 200
KrO* 700
KdO* 700
Black Monochrome* 2000
Black Monochrome 1500
White Monochrome* 1500
Red Monochrome 1500
Blue Monochrome 1500
Gold Monochrome 1500
Silver Monochrome 1500
*Zebra intelligent technology automatically detects and authenticates ribbon
• Cleaning roller is included with each ribbon
• Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)

Card Compatibility:
NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended.
• Card Thickness: 10-40 mil*
• Card Size: CR80 ISO 7810 ID-1 format, CR79*
• Card Material: PVC and PVC composite
• Adhesive back and writable back cards
*Note: Spot color or monochrome printing recommended only on >20 mil thick cards and CR79 cards.

Operating Characteristics

Operating Temp. 59º F to 95º F/15º C to 35º C
Storage Temp. 23º F to 158º F/-5º C to 70º C
Operating Humidity 20% to 80% non-condensing
Media Storage — Temperature: 41º F to 77º F/5º C to 25º C
— Humidity: 35% to 65% non-condensing
Electrical • Auto-switching single-phase AC power
• Operating range: 90-132VAC and 190-264VAC RMS
• Frequency range: 47-63 Hz
• FCC Class A

Physical Characteristics

Dimensions Single Sided
10.2 in. H x 6.2 in. W x 15.1 in. D
258 mm H x 157 mm W x 383 mm D
Dual Sided
10.2 in. H x 6.2 in. W x 18.4 in. D
258 mm H x 157 mm W x 468 mm D
Weight Single Sided
8.8 lbs (4.0kg)
Dual Sided
9.7 lbs (4.4 kg)

Communications and Interface Capabilities

USB 2.0 Standard
Built-in 10/100 Ethernet Standard
802.11ac Optional

Encoding Options and Specifications

• Magnetic stripe encoder – ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; stripe down and stripe up with dual-sided printers)1
• Combined MIFARE ISO 14443 A&B (13.56MHz) contactless encoder with 1 SAM Slot and optional support for reading iCLASS ISO 15693 and ISO 7816 cards, and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance1, 2
• ISO 7816 Smart Card Contact Station for third party external contact encoders1
• EPCglobal Gen 2 UHF RFID encoder
1. Field upgradeable options
2. Prox and iClass are standard in NA models and available as an upgrade in EMEA

Printer Drivers

Microsoft
Windows
Certified
Windows Server 2008 (32 and 64 bit),
Windows 7 (32 bit and 64 bit)
Windows 8 and Windows 8.1
(32 bit and 64 bit compatible)
Windows Server 2012 (64 bit)
Windows 10 (32 bit and 64 bit)
Windows Server 2016
Windows drivers include:
• Color coded printer status indicators for the operator
• Black panel extraction and controls for specialty
ribbon panels with image preview
• Configuration utility to limit access by operators to change image quality and printer settings
• Advanced printer configuration, security settings
and diagnostics capabilities
Linux Ubuntu 16..X (64 Bit)
Apple MAC OS X 10.13.X (64 bit)
Please see www.zebra.com for an up-to-date listing of supported systems.

Additional Optional Features

• Card flipper for dual-sided printing*
• 10 card reject bin is standard with dual-sided printers*
• Lockable enclosure*
*Field upgradeable options
