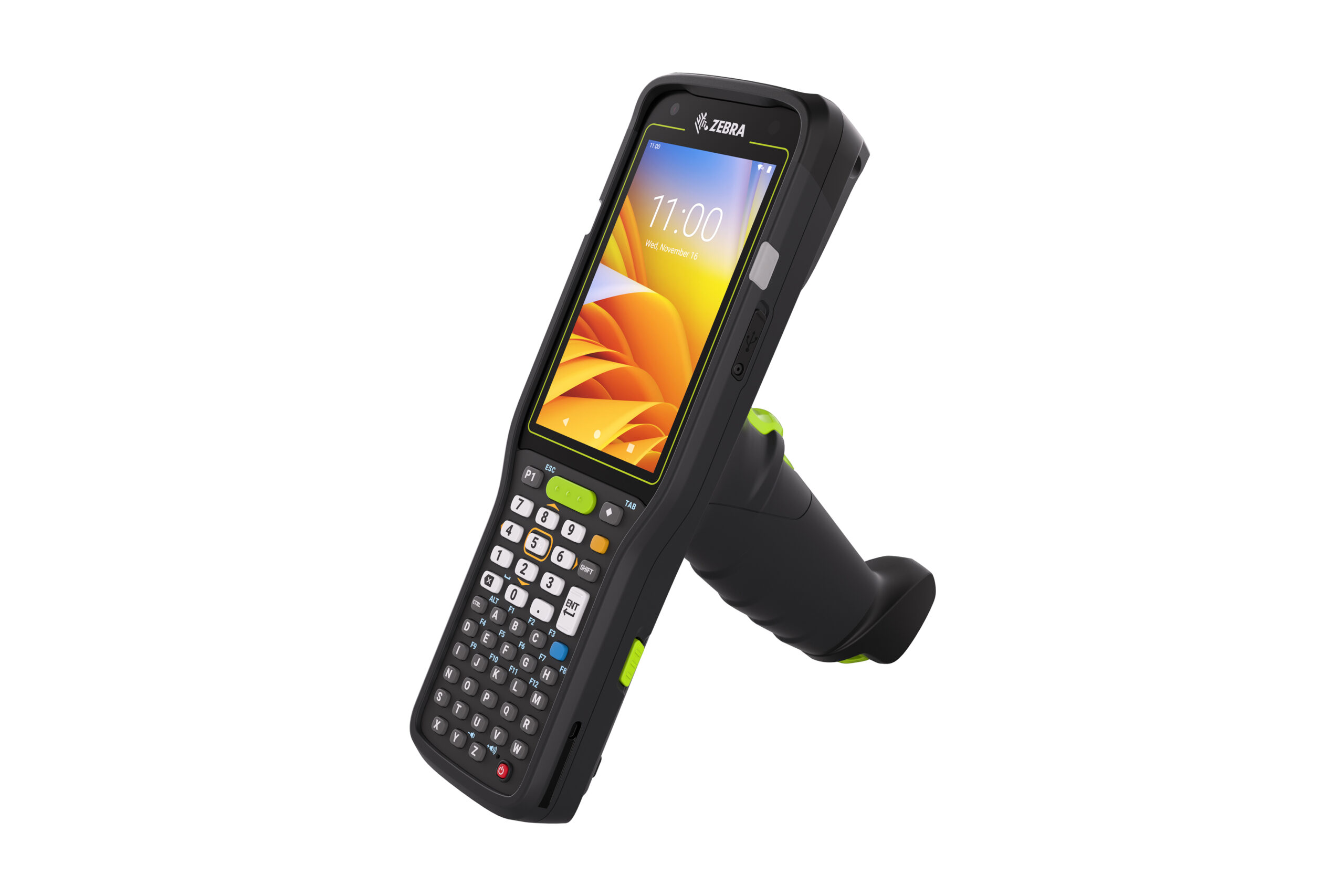

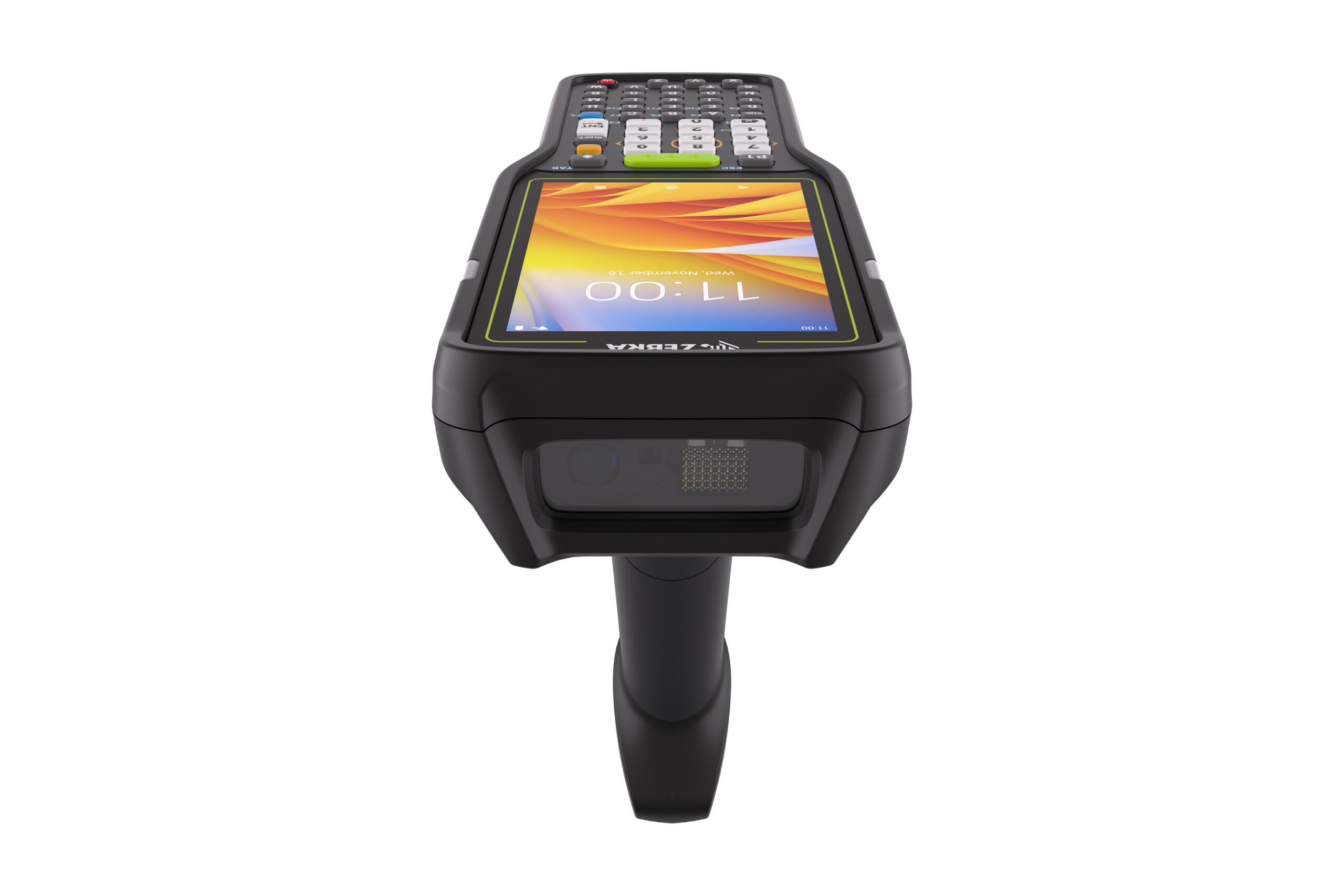

MC3400/MC3450 Mobile Computer


MC3400/MC3450 Mobile Computer Engineered for the toughest environments and today’s modern workflows — now with more power, advanced scanning, Wi-Fi 6E and 5G connectivity

MC3400/MC3450 Mobile Computer Introducing the next generation of the highly successful MC3000 Series family of versatile key-based mobile computers, the MC3400 and MC3450. Two form factor options — straight shooter and gun — are packed with the latest mobility features to empower your workforce to meet the ever-increasing needs of today’s on-demand, e-commerce economy. Run demanding apps with 2.5x more processing power. Keep workers connected with Wi-Fi 6E, 5G and Private 5G. Prevent unauthorized device access with biometric facial recognition. An improved keypad design makes data entry easier, a more rugged design increases reliability, and more data capture options increase flexibility. Tap into new capabilities that increase security, make devices easy to find and more with Zebra DNA’s software suite. And Zebra’s services make it easy to run, repair, oversee and manage your devices from cradle to grave.

Maximize user productivity

Keep workers connected, no matter where they are

Wi-Fi 6E plus private and public 5G connectivity provides workers with fast and reliable wireless connections — from the production floor to the farthest corner of the warehouse, including vast outdoor ports and yards. And with a physical nano SIM and eSIM, you can support two networks on a single device.

Choose the right scanner for the job

Different use cases require different scanners. For standard barcode capture, choose the SE4710 1D/2D Scan Engine.

To capture barcodes, photos and documents indoors and outdoors — even in bright sunlight — choose the SE4770 1D/2D Scan Engine with a red laser aimer. Need a flexible scan range? The SE55 1D/2D Advanced Range Scan Engine with Intellifocus™ technology captures barcodes in-hand and on a top warehouse rack — over 40 ft (12.2m) away. And if you need extended range scanning up to 100 ft (30.5m) away, the SE58 Extended Range 1D/2D Scan Engine is ideal for scanning containers in ports and yards. And all options deliver split-second first time capture of virtually every barcode, regardless of condition.

Faster, easier and more accurate data entry — even with gloves

With larger keys and more space between the keys, data entry is easier — increasing productivity and reducing keying errors. And you can choose the keypad that best suits the type of data your workers enter with a choice of 47-key, 38-key and 29-key keypads.

High resolution front and rear cameras in all models

All models now offer a front-facing 5 MP camera. The rear-facing 13 MP camera, previously only available in the straight shooter (brick) form factor, is now available in the gun model as well. Now, workers can place a video call to resolve an issue faster, document damage to an incoming shipment or capture a document, such as a bill of lading or a return receipt, regardless of which model you choose.

Physical Characteristics

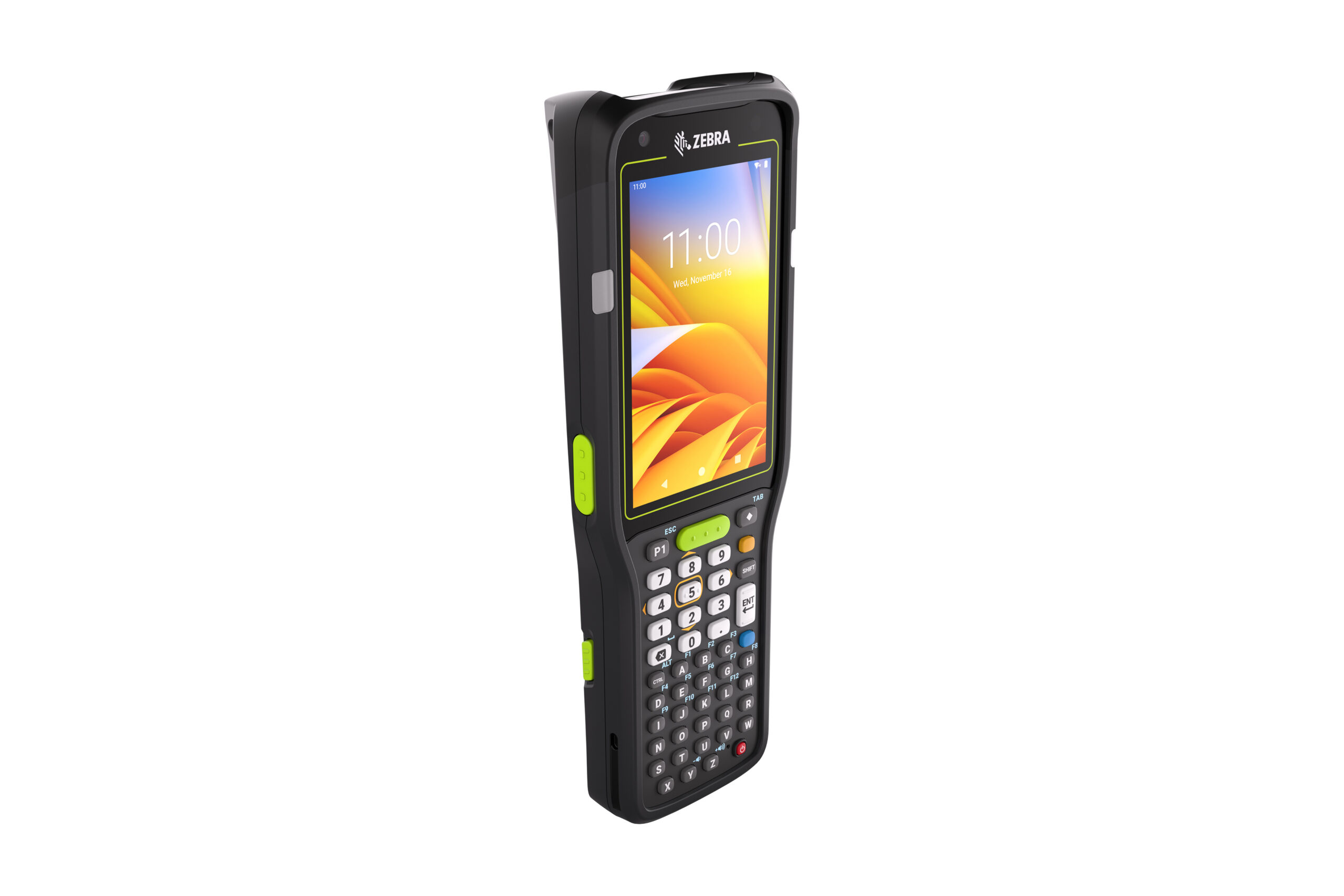

Dimensions Straight Shooter: 8.2 in L x 2.9 in W x 1.5 in H
(208.5mm L x 73.5mm W x 37.1mm H)

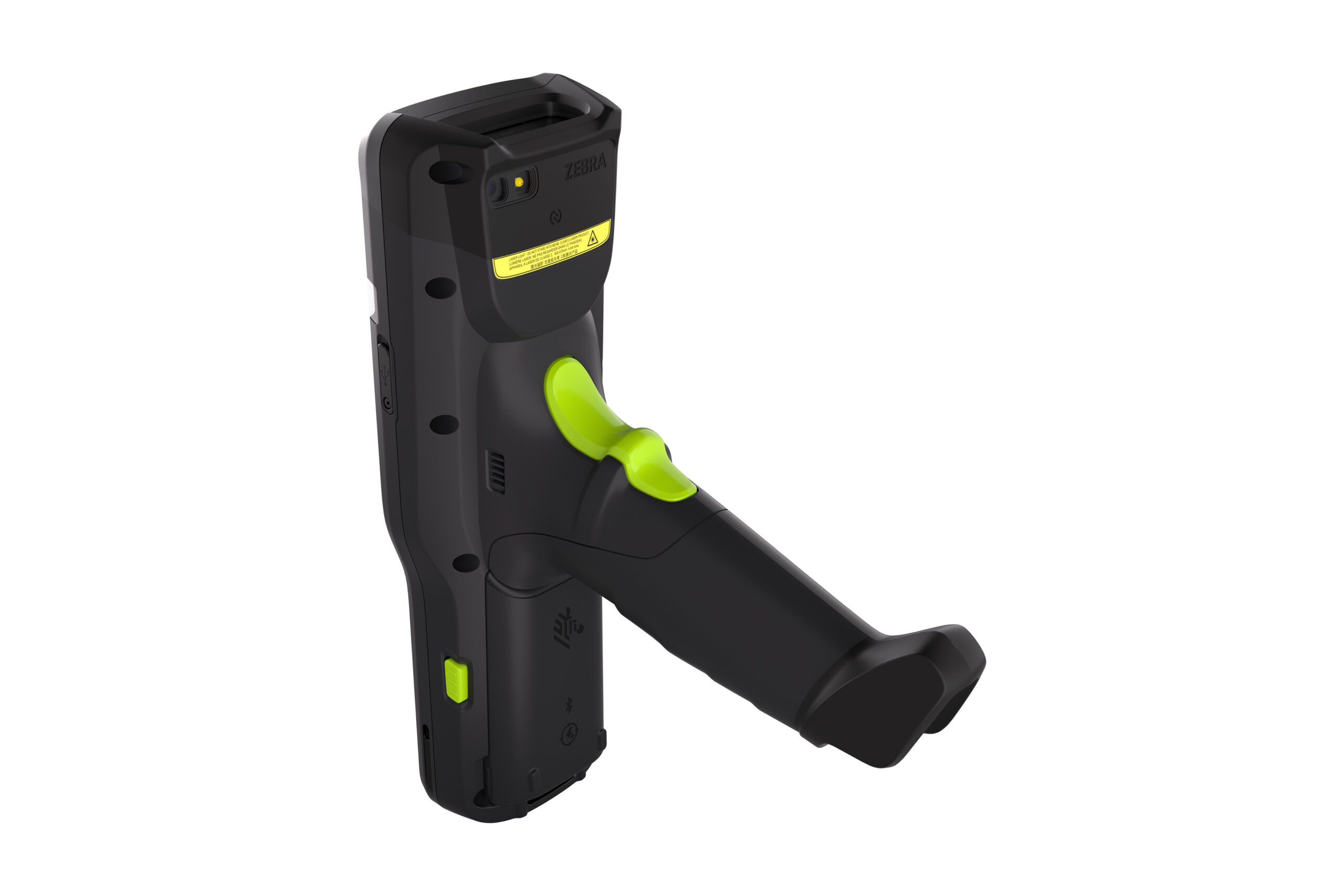

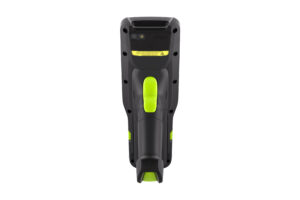

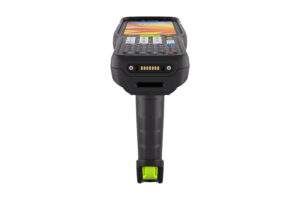

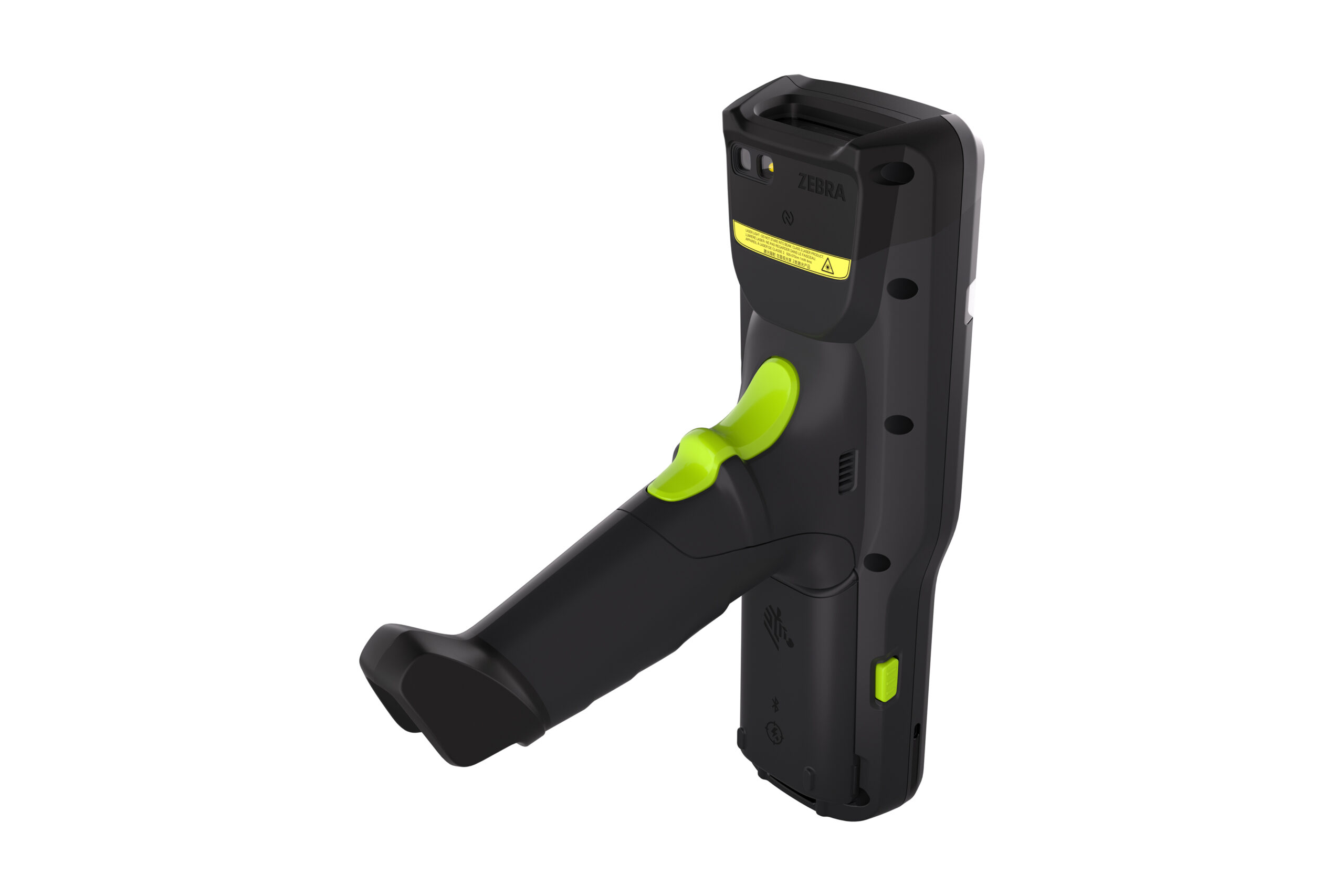

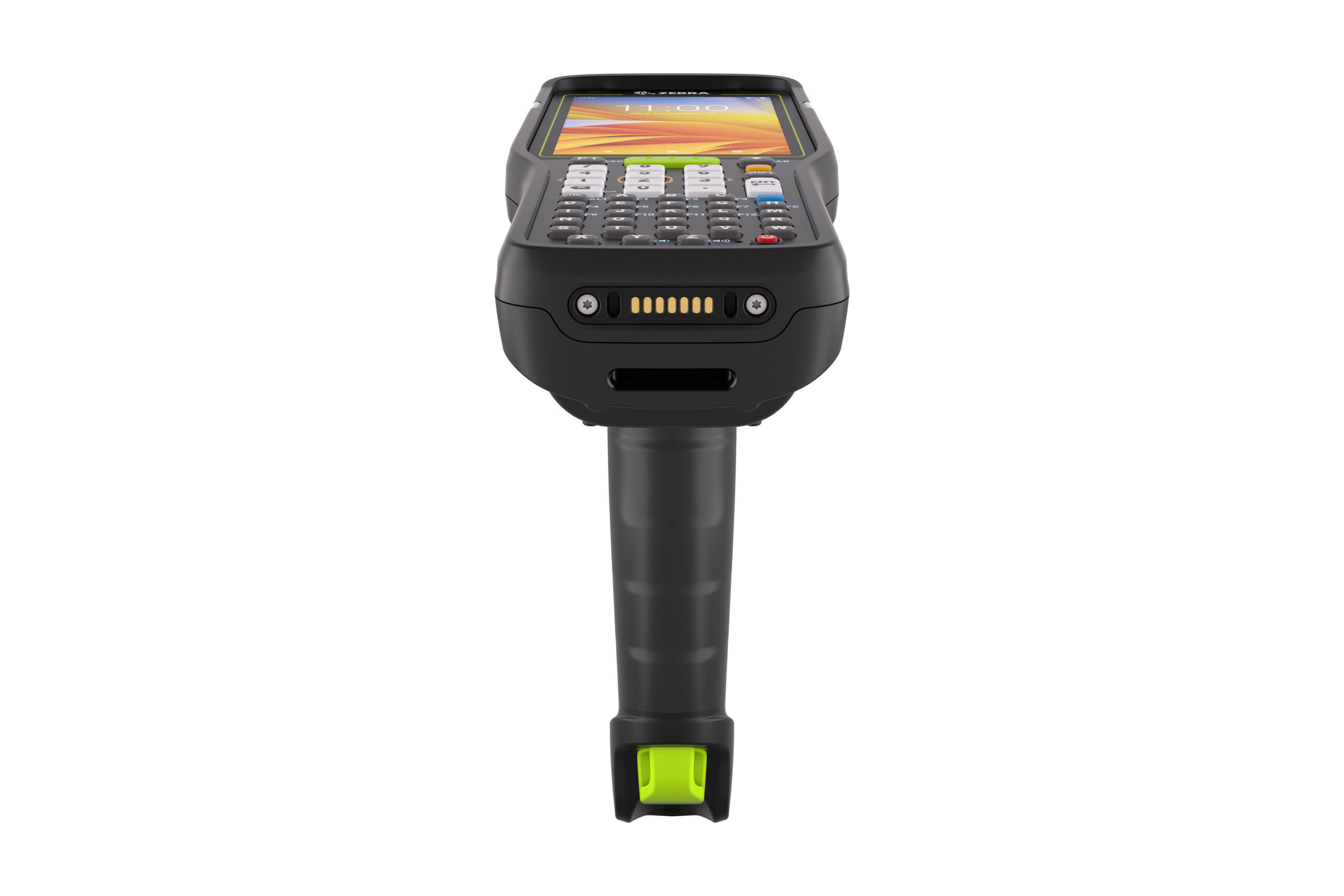

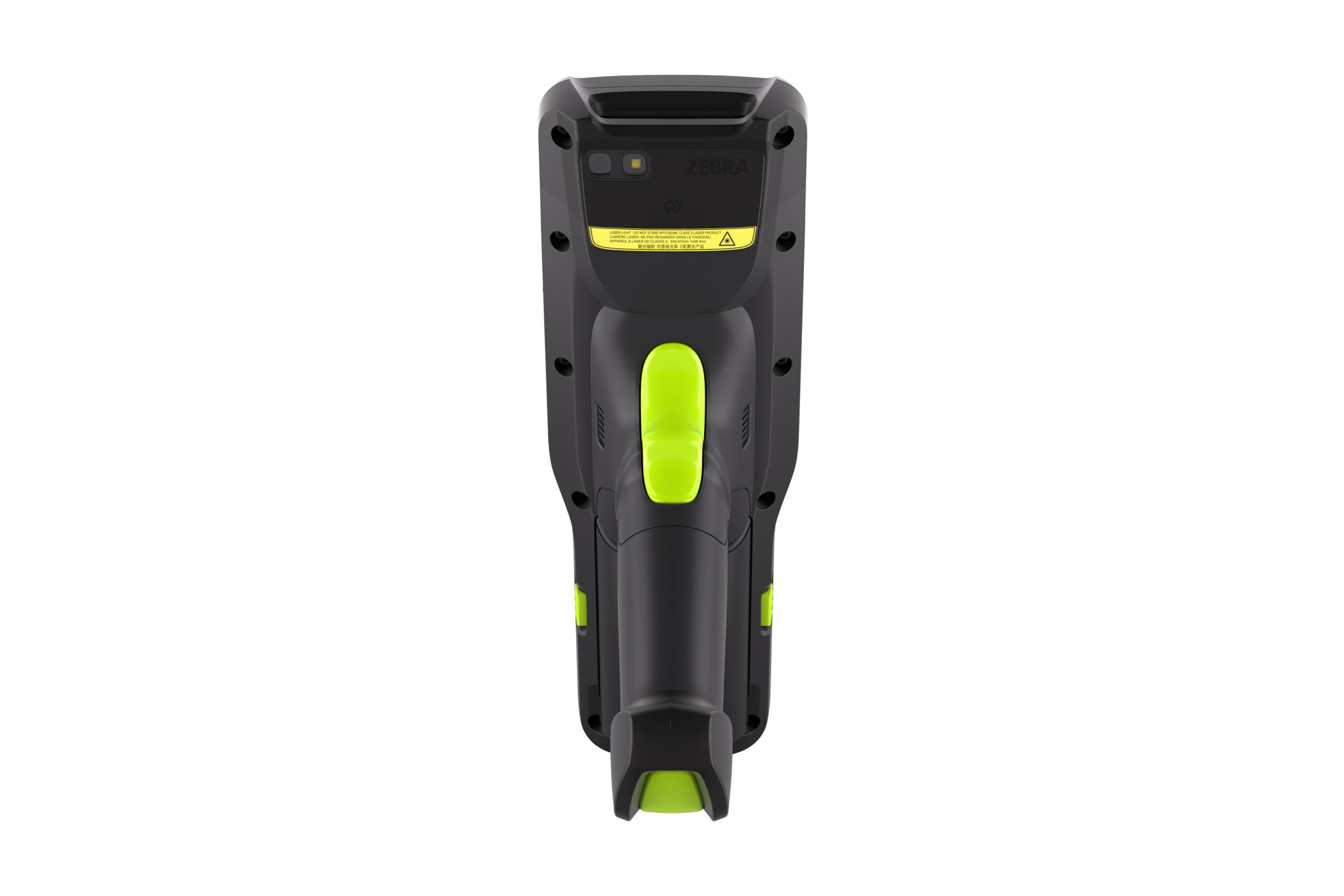

Gun: 8.2 in L x 2.9 in W x 6.5 in H
(208.5mm L x 73.5mm W x 165.3mm H)
Weight Straight Shooter: 15.6 oz (442g)
Gun: 18.6 oz (528g)
Display 4 in WVGA (800 x 480), color display, Standard: 350 NITS (typical), Expanded/Full: 600 NITS (typical)
Imager Window Corning® Gorilla® Glass
Touch Panel Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); Corning Gorilla Glass optically bonded
Power Standard Rechargeable Li-Ion: 3.6V, 7000mAh (25.20 Wh); Optional BLE Battery Li-Ion 3.6V, 7000mAh (25.2 Wh); Hot swap battery backup with temporary session persistence
Expansion Slot MicroSD supports up to 2 TB
SIM MC3450 only: 1 nano SIM; 1 eSIM
Network Connections MC3400/MC3450: WLAN, WPAN (Bluetooth), USB 2.0 High Speed (host and client); MC3450 only: WWAN 5G, data only
Notifications Audible tone; multi-color LEDs (2); haptic feedback

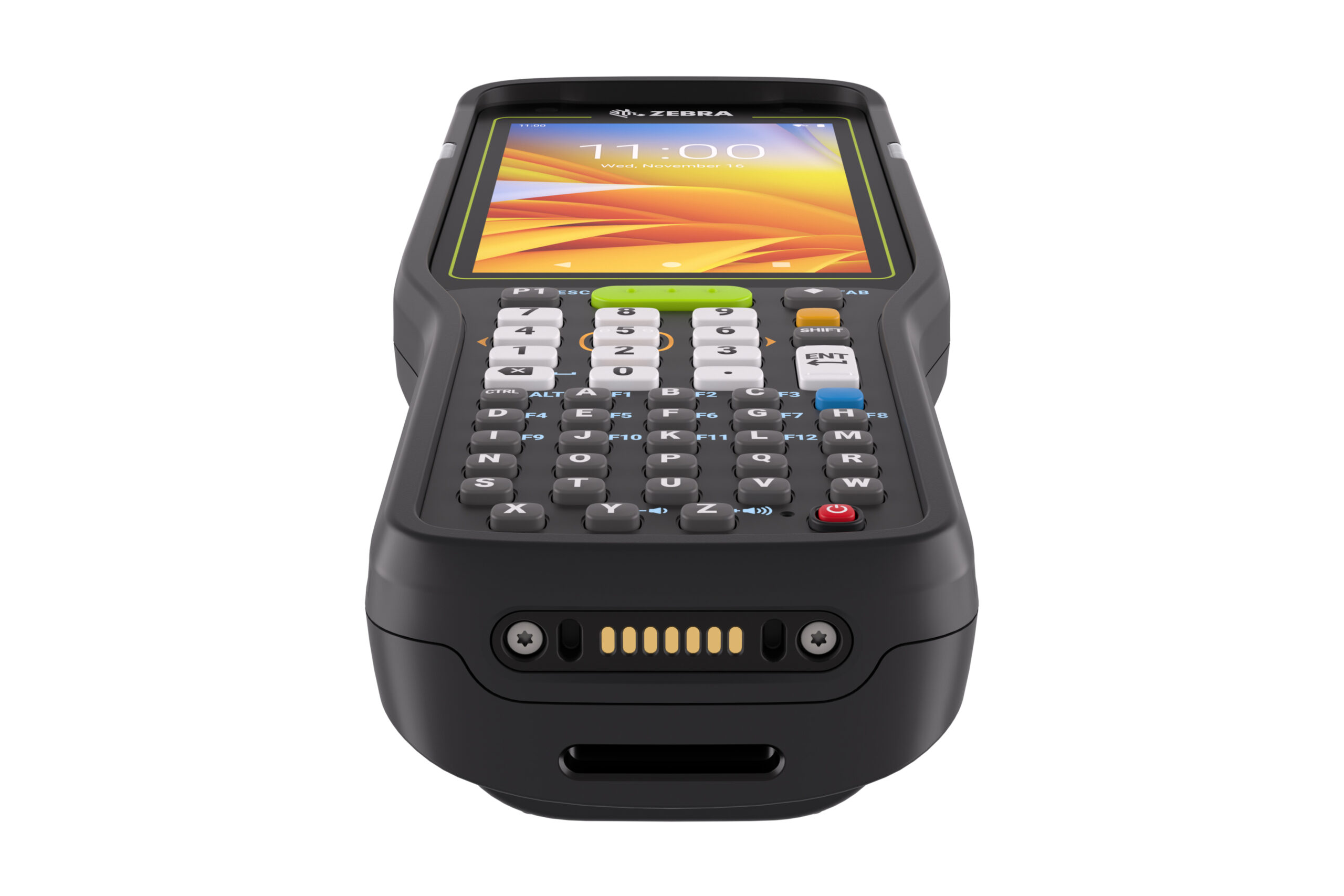

Keypad Numeric (29 key), Function Numeric (38 key), Alpha Numeric (47 key)
Voice and Audio Speaker, microphone, Push-to-Talk (PTT Voice; internal speaker, Bluetooth wireless headset support, USB-C headset)
Buttons Trigger scan button (Gun); Keypad scan button, Side Scan Keys (Straight Shooter)
Interface Ports USB 2.0 (Bottom pogo connector and side USB-C connector) — High Speed (Host and Client)

Performance Characteristics

CPU Qualcomm® 4490 octa-core, 2.4 GHz
Operating System Standard: Upgradeable to Android 15
Expanded and Full: Upgradeable to Android 189
Memory Standard: 4 GB RAM/64 GB Flash; Expanded: 6 GB RAM/64 GB Flash; Full: 6 GB RAM/128 GB Flash
Security FIPS 140-2 Validated; Common Criteria certified6; Supports Secure Boot and Verified Boot

User Environment

Operating Temperature -4F to +122F (-20C to +50C)
Storage Temperature -40F to +158F (-40C to +70C)
Humidity 5% to 95% non-condensing
Drop Specification Per MIL-STD 810H: 8 ft (2.4m)7 to concrete at (+23C/+73F); 6 ft (1.8m) to concrete across temperature (-20C to +50C/-4F to +122F) exceeding MIL-STD-810H
Tumble Specification 4,000 3.3 ft (1m) tumbles; meets or exceeds IEC tumble specification
Sealing Dual IP65 and 67 rating with battery per applicable IEC sealing specifications
Vibration 4 g’s PK Sine (5 Hz to 2 kHz); 0.04g 2/Hz Random
(20 Hz to 2 kHz); 60 minute duration per axis, 3 axis
Electrostatic Discharge (ESD) +/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge

Interactive Sensor Technology (IST)

Light Sensor Automatically adjusts display backlight brightness (Expanded and Full)
Magnetometer MC3450 only: eCompass automatically detects direction and orientation
Motion Sensor 3-axis accelerometer with MEMS Gyro

General Certifications

TAA compliant; ARCore Google8 pending

Data Capture

Scanning SE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology; SE55 Advanced Range Scan Engine with IntelliFocus™ technology; SE4770 1D/2D Scan Engine; SE4710 1D/2D Scan Engine
Camera Front: 5 MP; Rear: 13 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR
NFC NFC Forum; ISO 14443 Type A and B; FeliCa and ISO 15693 tags and cards

Wireless WAN Data Communications (MC3450 Only)

Radio Frequency Band 3G: NA: B2/4/5; ROW: 1/2/4/5/8; China+Japan: B1/5/6/8; 4G: NA: B2/4/5/7/8/12/13/14/17/25/26/29/30/38/41/48/66/71; ROW: B1/2/3/4/5/6/7/9/10/14/17/18/20/26/28/38/39/40/41/42/43/66/71; China+Japan: B1/3/5/7/8/28/34/38/39/40/41/42
5G FR1: NA: n2/5/7/8/12/13/14/25/26/30/38/41/48/
66/71/77/78; ROW: n1/2/3/5/7/8/12/18/20/26/28/38/
40/41/66/71/77/78; China+Japan: n1/3/5/7/8/28/38/40/41/77/78/79Supports private networking (LTE/5G)
GPS MC3450 only: GPS, GLONASS, Galileo, QZSS
Dual-Band GNSS — Concurrent L1/G1/E1 (GPS/QZSS, GLO, GAL) + L5/E5a/BDSB2a (GPS/QZSS, GAL) a-GPS Supports XTRA
Multimedia Wi-Fi Multimedia™ (WMM) and WMM-PS; including TSPEC
VOIP Communications Supports Workcloud CommunicationTM PTT Express and Workcloud Communication PTT Pro

Wireless LAN

Radio
IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2×2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6
Data Rates 2.4 GHz: 802.11b/g/n/ax — 20 MHz – up to 286.8 Mbps; 5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz – up to 2402 Mbps; 6 GHz: 802.11ax— 20 MHz, 40 MHz, 80 MHz, 160MHz – up to 2402 Mbps
Operating Channels Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20, 40, 80, 160 MHz; Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
Security and Encryption WPA3 Enterprise 192-bit mode, GCMP256 — EAP-TLS; WPA3 Enterprise, AES-CCMP-128 — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD;
WPA3 Personal (SAE), AES-CCMP-128;
WPA/WPA2 Enterprise, TKIP and AES-CCMP-128;
WPA/WPA2 Personal (PSK), TKIP and AES-CCMP-128; Enhanced Open (OWE), AES-CCMP-128;
WEP 40 bit and 104 bit; WAN device only: EAP-SIM, EAP-AKA, EAP-AKA Prime
Certifications Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal
WPA3-Enterprise (includes 192-bit mode); Protected Management Frames: Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save; WMM-Admission Control; Voice-Enterprise: Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity Passpoint
Fast Roam 802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC

Wireless PAN

Bluetooth Class 1 and Class 2 configurable; Bluetooth v5.3 and Secondary BLE for beaconing within BLE battery

Warranty

Subject to terms of Zebra’s hardware warranty statement, the MC3400/MC3450 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:
www.zebra.com/warranty

Environmental Compliance

RoHS Directive 2011/65/EU RoHS Amendment (EU) 2015/863 (EN IEC 63000:2018 Standard); For a complete list of product and materials compliance, please visit
www.zebra.com/environment

Recommended Services

Zebra OneCare™ Essential and Select maintenance plans; Zebra Visibility Services — VisibilityIQ™ Foresight; for information, please visit
www.zebra.com/services

Footnotes

1. Standard Gun, Expanded and Full Straight Shooter configuration support 12-month subscriptions. The Gun Expanded and Full configurations support subscription for the life of the device.
2. Requires the purchase of the optional BLE battery and Device Tracker licenses.
3. Requires a Workcloud Communication license.
4. Next-day delivery dependent upon region and time request is received.
5. LifeGuard for Android is included with every Zebra OneCare Support agreement. Some features, such as Over-the-Air remote updates and update status are available though a supported EMM.
6. Common Core Criteria supported in Q4 2024.
7. Applicable to WLAN Gun configuration only.
8. ARCore certification will be available Q2 2025.
9. Pending Qualcomm commitment.
