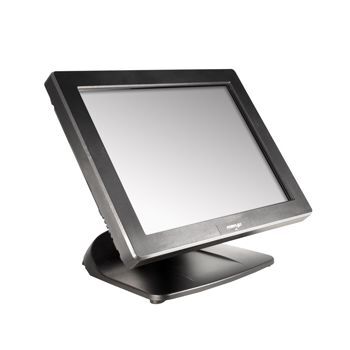

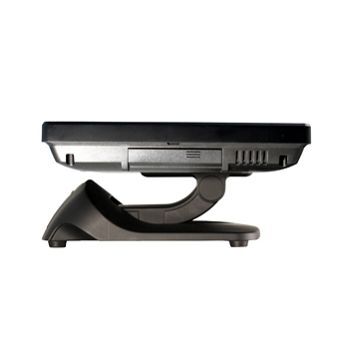

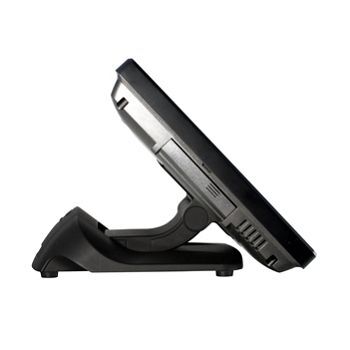

POS Terminal XT-5415IR

Posiflex Products

The POS Terminal XT-5415IR features a 15” IR touch screen, beautifully sculptured slim body, and sexily curved base stand, it looks right at home at any elegantly decorated store. And more than just good looks, the XT-5415IR also offers ample of performance and flexibility to satisfy the most demanding daily POS operations.

ر.ق6.00 for 3 item(s)

The POS Terminal XT-5415IR features a 15” IR touch screen, beautifully sculptured slim body, and sexily curved base stand, it looks right at home at any elegantly decorated store. And more than just good looks, the XT-5415IR also offers ample of performance and flexibility to satisfy the most demanding daily POS operations.



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Haswell Core i3-4330TE CPU, 2.40 GHz, 4M Cache, Intel Haswell Core i5-4570TE CPU, up to 3.30 GHz, 4M Cache, Intel Haswell Core i7-4770TE CPU, up to 3.30 GHz, 8M Cache, Intel Haswell G1820 CPU, 2.70 GHz, 2M Cache, Intel Haswell G3320TE CPU, 2.30 GHz, 3M Cache

System Memory

DDR3L SO-DIMM x 2, max. 16GB

Storage Device

SATA Storage x 2

Power Supply

12V/130W

OS Support

Win 7/POSReady 7/WE 8.1 Industry/Win 10 IoT/Linux per request

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

15" TFT LCD

RESOLUTION

1024 x 768

TOUCH

IR Touch

• • I/O & EXPANSION

• • • • • • • • • •

SERIAL PORT

6, DB9 x 2 + RJ50 x 2, pin header x 2 from service window, 5V support on all COM ports, 12V support on COM 1 to COM 4

STANDARD USB PORT

6, USB 3.0 x 2 + USB 2.0 x 4

PARALLEL PORT

1, via optional conversion cable through service window

POWERED USB PORT

Optional 24V x 1 and 12V x 3 via GEN8E Base

LAN PORT

10/100/1000 Mb x 2

DISPLAY PORT

VGA x 1, 12V support for Posiflex monitors; mini-DP x 1 on service window

CR PORT

1, control 2 CR via optional Y-cable

PS/2 PORT

1, via optional conversion cable through service window

UPS PORT

Yes

Audio

Internal 2W speaker x 1 + Line-out

EXPANSION SLOT

Mini-PCIe slot x 1

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

372 x 320 x 252.7

Weight

5.86

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40°C, 20%RH – 90%RH (Equipped with HDD); 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

Optional mini-PCIe WiFi/BT module
