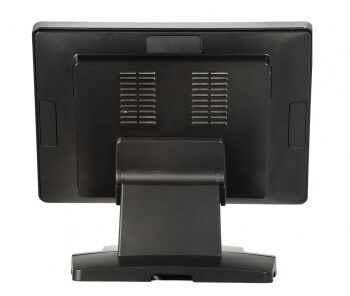

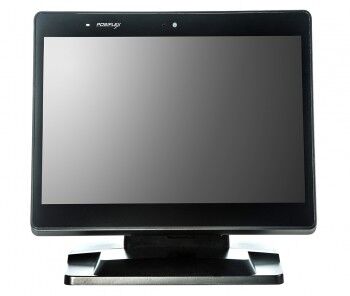

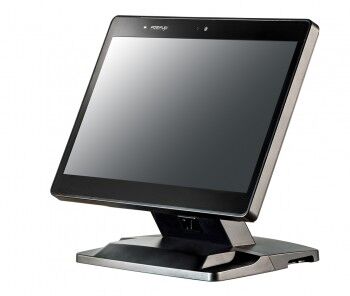

Posiflex ZT-3115

Posiflex Products

Haydn ZT Series POS Terminal features innovative industry-first clamshell design that increases maintenance effectiveness by four times and redefines the traditional mechanical form factor with a smarter design.

Add to quote
ر.ق6.00 for 3 item(s)

Posiflex ZT-3115

The industry-first clamshell design

  • The Haydn ZT series features a clamshell design allowing easy access to the internal components for fast maintenance. It adopts a screw-less and a whole modular design, allowing the hood-like monitor case to be quickly opened with just one touch, which is convenient for repair, replacement and even upgrade.
 Security and Clean Cable Management

  • The hidden I/O, hidden power adapters and three-way advanced cable management design delivers a truly clutter-free station, further prevents unauthorized access to the I/O ports and protects power source and connectivity from interruptions, making operations more secured.
IP-Rated Protection

  • Benefiting form its IP-rated protection, Haydn ZT Series is rugged and durable to withstand harsh environments, offers protection from water and dust damage so as to extend the longevity of your investment.
 Secured USB Port

  • The USB port lock design prevents unauthorized data transfer and reduces computer virus infection to keep your data secure and customers safe.
0-90° Foldable Angle

  • To serve as a service-centric POS terminal the Haydn ZT series supports a unique swivel hinge design with stepless adjustable rotation, providing users a more comfortable viewing angle.



SKU: HS-3514W-1-2 Categories: , , Tags: , , , , , , , , , , , , Brand:
• • SPECIFICATION

• • • • • • • • • •
Processor

Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
System Memory

DDR3L SO-DIMM x 1, max. 8GB
Storage Device

SATA storage x 2 (one for HDD/SSD; the other for 1” SSD only)
Power Supply

24V/60W
Built In Printer

3” detachable printer w/auto cutter, 250 mm/sec (max.)
OS Support

Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7
• • DISPLAY & TOUCH

• • • • • • • • • •
LCD

14" TFT LCD
RESOLUTION

1366 x 768
TOUCH

True-flat PCAP touch with multi-touch support (IP65 on front panel)
• • I/O & EXPANSION

• • • • • • • • • •
SERIAL PORT

3, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
STANDARD USB PORT

USB 2.0 x 4
PARALLEL PORT

Yes
LAN PORT

10/100/1000 Mb x 1
DISPLAY PORT

VGA x 1, 12V support for Posiflex monitors
CR PORT

1, control 2 CR via optional Y-cable (printer driven)
PS/2 PORT

Yes
Audio

Line-out x 1
EXPANSION SLOT

Mini-PCIe slot x 1
• • PHYSICAL DIMENSION

• • • • • • • • • •
DIMENSION (W X D X H IN MM)

371.5 x 198 x 473
Weight

5.8
• • ENVIRONMENTAL

• • • • • • • • • •
OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)
STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH
• • BUILT-IN OPTIONS

• • • • • • • • • •
MSR

3 tracks ISO or JISII (HID/VCOM selection)
Finger Print Sensor

Optical type
WIFI

Mini-PCIe WiFi/BT module
RFID READER

Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
Scanner

2D barcode scanner
iBUTTON

Yes (cannot coexist with FPU)
4G COMMUNICATION

Single SIM slot
BRAND

ZT Series

ZT-3115E, ZT-3115
System Configuration
Processor Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory DDR4 SO-DIMM x 2, max. 32GB
Storage Device M.2 connector [SATA Signal Only] x 2
RAID Function N/A
Intel vPro Support N/A
TPM Support TPM 2.0
Power Supply 24V/60W
OS Support Windows 10 IoT
Display & Touch
LCD 15″ TFT LCD
Resolution 1024 x 768
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port 2, DB9 x 1 + RJ50 x 1 (5V/12V support on all COM ports)
Parallel Port N/A
Standard USB Port 5, USB 3.0 x 2 + USB 2.0 x 3
PoweredUSB Port N/A
OTG USB N/A
LAN Port 10/100/1000 Mb x 2
Display Port 1. Proprietary connector x1 for 2nd display
2. USB Type-C x 1
CR Port 1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port N/A
UPS Port N/A
Audio Internal 2W speaker x 1
Expansion Slot M.2 2230 x 1 for Wi-Fi/BT
Physical Dimension
Dimension (W x D x H in mm) 353 x 206 x 319
Weight (N. W. in kg) 4.9
Environmental
Operating Condition 0°C – 40°C, 20%RH – 90%RH
Storage Condition -20°C – 70°C, 10%RH – 90%RH
Built-in Options
WiFi M.2 WiFi/BT module
Camera 1MP wide angle camera
MSR N/A
AG Glass Cannot coexist with built-in camera
Attachment Options
POS Monitor PCAP touch TFT LCD: 10.1″
Line Display N/A
External UPS Pack For RT Series N/A
Attachment MSR; 2D Scanner; RFID; Fingerprint Sensor
Note Specification and design are subject to change before official release of the product
* The product information and specifications are subject to change without prior notice.
System Configuration
Processor Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory DDR4 SO-DIMM x 2, max. 32GB
Storage Device M.2 connector [SATA Signal Only] x 2
RAID Function N/A
Intel vPro Support N/A
TPM Support TPM 2.0
Power Supply 24V/120W
OS Support Windows 10 IoT
Display & Touch
LCD 15″ TFT LCD
Resolution 1024 x 768
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port 2, DB9 x 1 + RJ50 x 1 (5V/12V support on all COM ports)
Parallel Port N/A
Standard USB Port 5, USB 3.0 x 2 + USB 2.0 x 3
PoweredUSB Port 24V PoweredUSB x 1
OTG USB N/A
LAN Port 10/100/1000 Mb x 2
Display Port 1. Proprietary connector x1 for 2nd display
2. USB Type-C x 1
CR Port 1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port N/A
UPS Port N/A
Audio Internal 2W speaker x 1
Expansion Slot M.2 2230 x 1 for Wi-Fi/BT
Physical Dimension
Dimension (W x D x H in mm) 353 x 206 x 319
Weight (N. W. in kg) 4.9
Environmental
Operating Condition 0°C – 40°C, 20%RH – 90%RH
Storage Condition -20°C – 70°C, 10%RH – 90%RH
Built-in Options
WiFi M.2 WiFi/BT module
Camera 1MP wide angle camera
MSR N/A
AG Glass Cannot coexist with built-in camera
Attachment Options
POS Monitor PCAP touch TFT LCD: 10.1″
Line Display N/A
External UPS Pack For RT Series N/A
Attachment MSR; 2D Scanner; RFID; Fingerprint Sensor
Note Specification and design are subject to change before official release of the product
