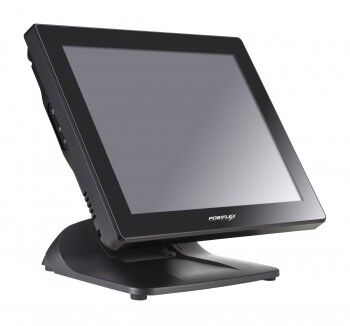

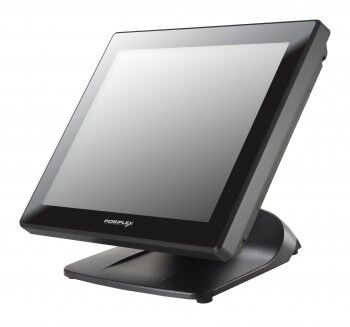

PS-3615-G2

Posiflex Products

Crafted with functionality and flexibility in mind, PS-3615-G2* features a 15” wide PCAP touch screen, fanless technology

Add to quote
ر.ق6.00 for 3 item(s)

Intelligently Designed

  • Equipped with an adjustable base, PS-3615-G2 enables the ultimate flexibility for space-limited environments.

Expanded Capability

  • By separating a full set of ports into the top of the terminal, PS-3615-G2 provides extensive connections, easy accessibility, and reliable peripheral cabling.

Compact

  • Equipped with Intel® Elkhart Lake processor, PS-3615-G2 comes with a 15″ PCAP wide touchscreen and is tailored to operate in an ever-changing retail environment.Crafted with functionality and flexibility in mind, PS-3615-G2* features a 15” wide PCAP touch screen, fanless technology



SKU: RT-2016-2 Categories: , , Tags: , , , , , , , , , Brand: ,
• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache

System Memory

DDR3L SO-DIMM slot x 1, max. 8GB

Storage Device

SATA Storage x 2

Power Supply

12V/60W

OS Support

Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

15.6" TFT LCD

RESOLUTION

1920 x 1080

TOUCH

True-flat PCAP touch with multi-touch support (IP65 on front panel)

SERIAL PORT

3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports

STANDARD USB PORT

5, USB 3.0 x 1 + USB 2.0 x 4

POWERED USB PORT

Optional PoweredUSB module with 24V + 12V (USB 3.0 will no longer be available with the PoweredUSB module)

LAN PORT

10/100/1000 Mb x 1

DISPLAY PORT

VGA via proprietary connector (12V support for Posiflex monitors) x 1+ mini DP x 1

CR PORT

1, control 2 CR via optional Y-cable, supporting 24V cash drawer

Audio

Internal 2W speaker x 1

EXPANSION SLOT

M.2 slot x 1

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

402 x 207 x 297

Weight

5

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

M.2 WiFi/BT module

CAMERA

1MP wide angle camera

AG GLASS

Cannot coexist with built-in camera

BRAND

System Configuration
ProcessorIntel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System MemoryDDR4 SO-DIMM x 1, max. 16GB
Storage DeviceM.2 connector (SATA Signal Only) x 1
RAID FunctionN/A
Intel vPro SupportN/A
TPM SupportYes, TPM 2.0
Power Supply12V/60W
OS SupportWindows 10 IoT 64 bit
Display & Touch
LCD15″ TFT LCD
Resolution1024 x 768
TouchTrue-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port1, via optional conversion cable through service window
Standard USB Port5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top)
PoweredUSB PortOptional 24V x 1 + 12V x 3 via GEN8 base
OTG USBN/A
LAN Port10/100/1000 Mb x 1
Display PortVGA x 1, 12V support for Posiflex monitors
CR Port1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port1, via optional conversion cable through service window
UPS PortN/A
AudioBuzzer x 1; Optional internal 2W speaker x 1
Expansion SlotM.2 slot x 1
Physical Dimension
Dimension (W x D x H in mm)372 x 252.7 x 320
Weight (N. W. in kg)5.86
Environmental
Operating Condition0°C – 40°C, 20%RH – 90%RH
Storage Condition-20°C – 70°C, 10%RH – 90%RH
Built-in Options
WiFiM.2 WiFi/BT module
CameraN/A
MSRN/A
AG GlassN/A
Attachment Options
POS MonitorNon-touch TFT USB LCD: 7″/9.7″
Line Display2 x 20 rear-mount VFD customer line display;
2 x 20 rear-mount LCD customer line display;
7″ color LCD graphical line display
External UPS Pack For RT SeriesN/A
AttachmentMSR; iButton; RFID; Fingerprint Sensor; Keypad
