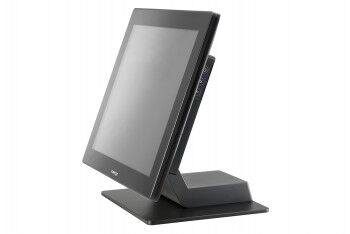

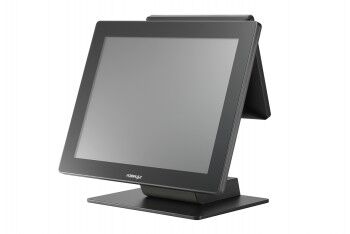

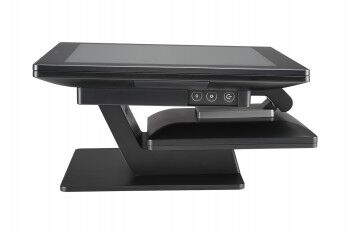

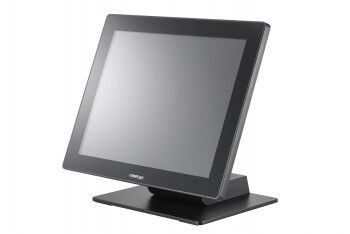

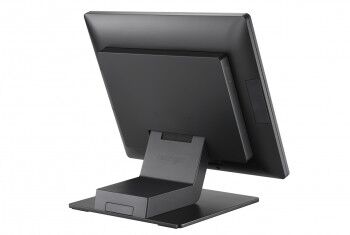

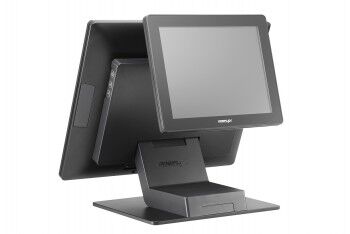

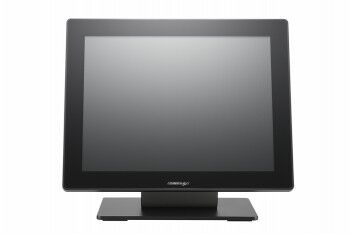

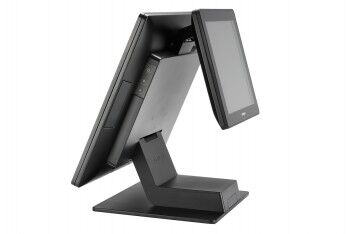

POS Terminal RT-2015

POSIFLEX PRODUCTS

The RT-2000 Series radiates in its new design – featuring an ultra-slim and sleek look that exhibits elegance. It is uncompromising to the space requirements and provides better cable management and easy maintenance. The new RT-2000 Series is taking POS terminal design into the next level, setting your brand image apart from the others.

The RT-2000 Series radiates in its new design – featuring an ultra-slim and sleek look that exhibits elegance. It is uncompromising to the space requirements and provides better cable management and easy maintenance. The new RT-2000 Series is taking POS terminal design into the next level, setting your brand image apart from the others



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache

System Memory

DDR3L SO-DIMM slot x 1, max. 8GB

Storage Device

SATA Storage x 2

Power Supply

12V/60W

OS Support

Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

15" TFT LCD

RESOLUTION

1024 x 768

TOUCH

True-flat PCAP touch with multi-touch support (IP65 on front panel)

SERIAL PORT

3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports

STANDARD USB PORT

5, USB 3.0 x 1 + USB 2.0 x 4

POWERED USB PORT

Optional PoweredUSB module with 24V + 12V (USB 3.0 will no longer be available with the PoweredUSB module)

LAN PORT

10/100/1000 Mb x 1

DISPLAY PORT

VGA via proprietary connector (12V support for Posiflex monitors) x 1+ mini DP x 1

CR PORT

1, control 2 CR via optional Y-cable, supporting 24V cash drawer

Audio

Internal 2W speaker x 1

EXPANSION SLOT

M.2 slot x 1

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

368 x 207 x 325

Weight

5.4

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

M.2 WiFi/BT module

CAMERA

1MP wide angle camera

AG GLASS

Cannot coexist with built-in camera
