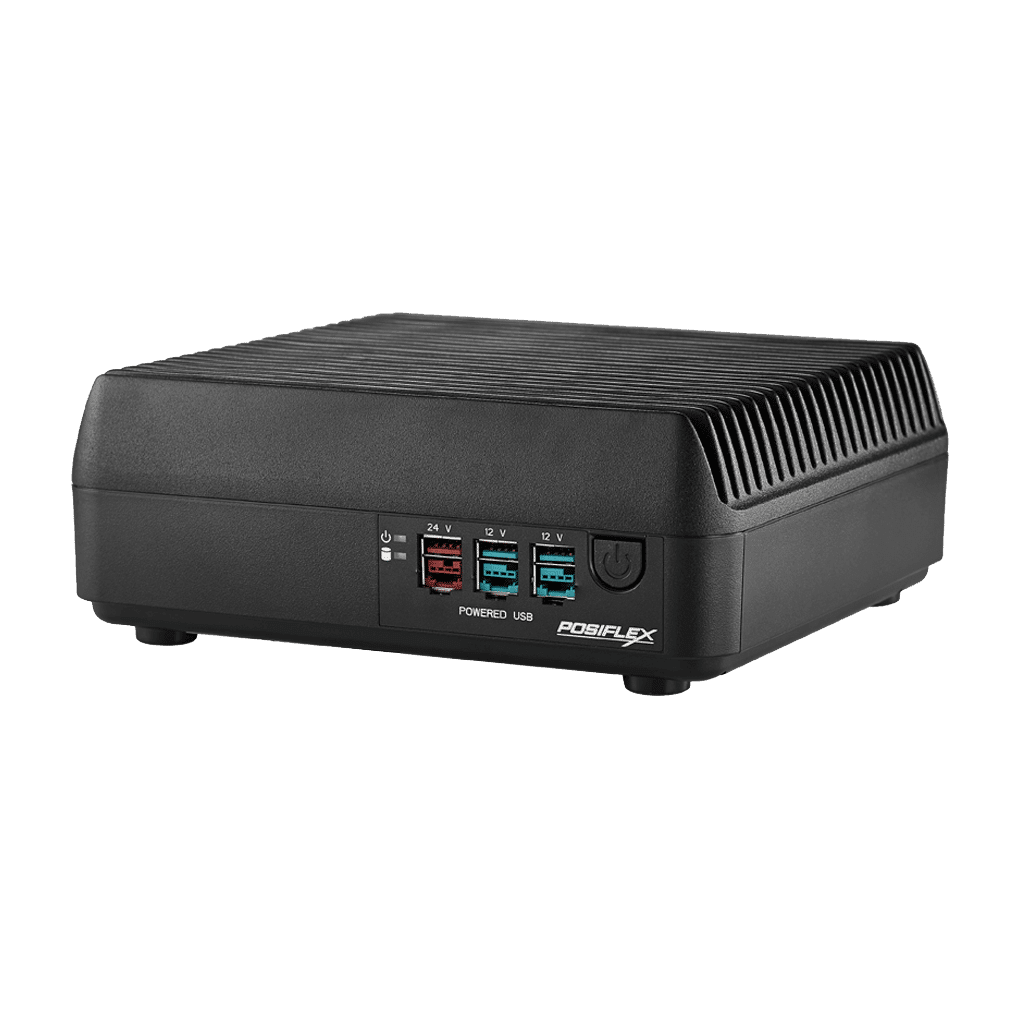

POS Box TX-5000

Posiflex Products

The TX-5000 Series is a high-end fanless POS Box. Incorporating leading CPU technology – 4 generation Intel Haswell processor, the TX-5000 Series provides unmatched performance while juggling multiple programs with ease.

The TX-5000 Series is a high-end fanless POS Box. Incorporating leading CPU technology – 4 generation Intel Haswell processor, the TX-5000 Series provides unmatched performance while juggling multiple programs with ease.



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Haswell Core i3-4330TE CPU, 2.40 GHz, 4M Cache, Intel Haswell Core i5-4570TE CPU, up to 3.30 GHz, 4M Cache, Intel Haswell Core i7-4770TE CPU, up to 3.30 GHz, 8M Cache, Intel Haswell G1820 CPU, 2.70 GHz, 2M Cache, Intel Haswell G3320TE CPU, 2.30 GHz, 3M Cache

System Memory

DDR3L SO-DIMM x 2, max. 16GB

Storage Device

SATA Storage x 2, factory default SSD x 1

Power Supply

12V/80W

OS Support

Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7

SERIAL PORT

6, DB9 x 4, COM5/COM6 via optional cable from service window, 5V/12V support on all COM ports

PARALLEL PORT

1

STANDARD USB PORT

8, USB 3.0 x 2 + USB 2.0 x 6

LAN PORT

10/100/1000 Mb x 1

DISPLAY PORT

VGA x 1, 12V support for Posiflex monitors; DP x 1

CR PORT

1, control 2 CR via optional Y-cable

Audio

Internal 2W speaker x 1 (optional) + Mic-in/Line-out

EXPANSION SLOT

Mini-PCIe slot x 1

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

Optional mini-PCIe WiFi/BT module

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

220 x 202 x 83

Weight

2.75

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH
