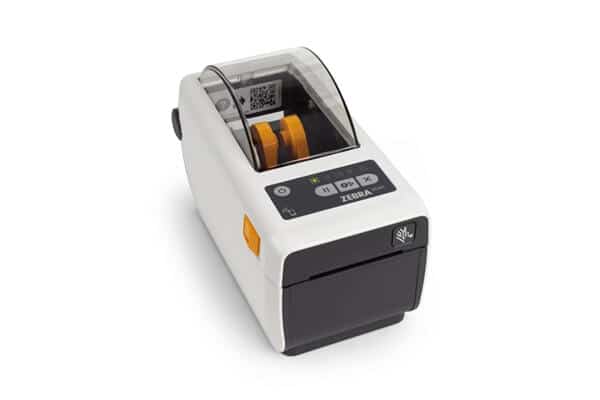

ZD411-HC DESKTOP PRINTER
EXPECT MORE WITH ZEBRA’S ADVANCED, COMPACT DESKTOP PRINTER, MADE FOR HEALTHCARE
Elevate your expectations with the reliable compact healthcare printer that’s designed exclusively for healthcare. Zebra’s ZD411-HC includes all the advanced features you need and is built to last for years to come. It’s built with disinfectant-ready, UV-resistant plastics and a medical-grade power supply for added safety. Including a new architecture and our exclusive Print DNA software suite, it offers enhanced processing power, unmatched security and intuitive setup and operation. Add capabilities with field-installable options, including wireless capabilities. An extension of the proven ZD400 Series, it’s ready to perform flawlessly for years to come.
ADVANCE YOUR HEALTHCARE WORKFLOWS
Easy to Clean, Sanitize and Safely Power
Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD411-HC printer easy to clean and sanitize, which helps prevent the spread of infections in hospitals and clinics. The medical-grade power supply is IEC 60601-1 compliant for use in any healthcare facility.
SIMPLE TO SETUP, USE AND MANAGE TODAY
Ready to Evolve for Tomorrow
Featuring Zebra’s Print DNA software suite, the ZD411-HC is easy to integrate, simple to operate and can be managed onsite or remotely via a web-based dashboard. It’s designed to evolve with technology with its innovative architecture that powers future printing and emerging applications to keep your workflows at peak performance.
Change Media Easily
Color-coded touch points guide you through speedy media changes to keep printers operational and workers on task. See status easily via the five LED icons on the intuitive display.
Healthcare Features
| • Healthcare preferred white color scheme • Healthcare compliant power supply, IEC 60601-1 certified • Disinfectant-ready, easy-to-clean plastics with sealed button interface • UV-resistant housing supports UV cleaning protocols |
Standard Features
| • Print methods: Direct Thermal • ZPL and EPL programming languages • 5 status icon, 3 button user interface • USB 2.0, USB Host • Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection* * BLE is provided for use with Zebra printer setup mobile app only • Real Time Clock (RTC) • OpenACCESS™ for easy media loading • Dual-wall frame construction • ENERGY STAR® certified • ZebraDesigner Essentials – easy label design tool free at www.zebra.com/zebradesigner • PDF Direct • Two-year standard warranty |
Physical Characteristics
| Dimensions | 8.6 in. L x 4.5 in. W x 6.0 in. H 220 mm L x 115 mm W x 151 mm H |
| Weight | 2.2 lb./1.0 kg |
Printer Specifications
| Operating System | Link-OS® printer operating system |
| Resolution | 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) |
| Memory | 512 MB Flash; 256MB DDR3 SDRAM |
| Maximum Print Width |
2.2 in./56 mm for 203 dpi 2.13 in./54 mm for 300 dpi |
| Maximum Print Speed |
6 in./152 mm per second (203 dpi) 4 in./102 mm per second (300 dpi) |
| Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor |
| Firmware | ZPL II; EPL 2; XML; ZBI; PDF Direct |
Media Characteristics
| Label Length | Minimum: 0.25 in./6.35 mm Maximum: 39.0 in./991 mm |
| Media Width | Minimum: 0.585 in./15 mm Maximum: 2.25 in./57 mm |
| Media Roll Size | Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in./12.7 mm and 1.0 in./25.4 mm standard, 1.5 in./38.1, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters |
| Media Thickness | 0.003 in./0.08 mm min.; 0.0075 in./0.1905 mm max |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
Operating Characteristics
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply |
Options and Accessories
| Media Handling | Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable) Cutter (field installable) |
| Communications | Field installable Ethernet 10/100, Serial RS-232 auto-sensing, wireless dual radio – 802.11ac Wi-Fi and Bluetooth Classic 4.2 |
| Battery | Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options |
| Real Time Clock | Real time clock included as standard on network connected models |
| Keyboard Display Unit | ZKDU keyboard display units for stand-alone printing solutions |
| Mounting Adapter Bracket | Enable printer to be mounted in same location as LP2824 Plus printer |
Fonts/Graphics/Symbologies
| Barcode Ratios | 2:1 and 3:1 |
| 1D Barcodes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Barcodes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM |
Printers Supplies
| For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer. |
Regulatory
| IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
