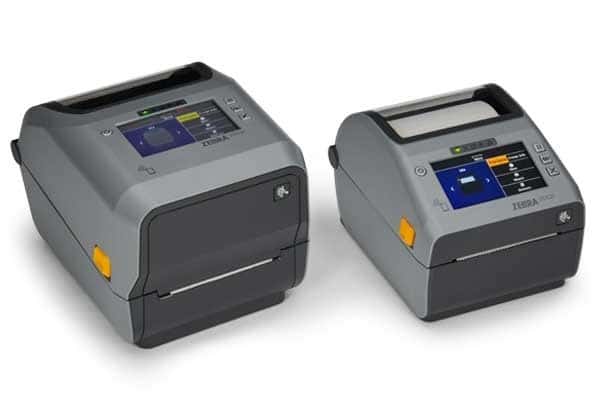

ZD621 DESKTOP PRINTER


INVEST IN THE BEST: PREMIUM FEATURES, MAXIMUM PERFORMANCE AND UNMATCHED SECURITY FOR YEARS OF QUALITY PRINTING



You need a premium, quality printer that’s built to perform flawlessly – day in and day out. Rely on Zebra’s ZD621 desktop printers, advancing the proven and popular GX Series printers. Don’t compromise. Get it all: an innovative new architecture to power our ever-expanding printer capabilities and software. Unmatched security that’s constantly evolving to safeguard your sensitive data and shield you from cyberattacks. Enhanced features, communication and media-handling options that you can add whenever you’re ready. An optional full-color LCD touch display with intuitive menu. And, increased remote-management capabilities. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security. Everything you need in a printer to keep your workflows fluid and business moving forward.

ZD621 DESKTOP PRINTER

EXPECT THE BEST

Premier Printing Performance

Rely on the ZD621 to help you power through – day after day. From outstanding print quality to portability for application flexibility to emerging technology to field-installable options, the ZD621 stands apart. Available in direct thermal, thermal transfer, healthcare and RFID models, the ZD621 supports a wide variety of use cases.

OPERATE WITH EASE

Simple to Deploy, Use, Manage and Secure

Backed by Zebra’s innovative Print DNA software suite, the ZD621 is incredibly simple to operate. Deploy it anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface is easy to use with minimal training and allows you to see status at a glance with the five LED icons. Take advantage of robust remote management capabilities that alleviate IT burdens. And, built-in security hardens your infrastructure from cyberattacks.

Standard Features



• Print methods: Thermal Transfer or Direct Thermal
• ZPL and EPL programming languages
• 5 status icon, 3 button user interface
• Ethernet, Serial, USB 2.0, USB Host
• Printer setup mobile app for Android & iOS via BLE
(Bluetooth Low Energy 5) connection*
* BLE is intended for use with Zebra printer setup mobile app only
• Real Time Clock (RTC)
• Media dancer for excellent print quality
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR® certified
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner
• PDF Direct
• Two-year standard warranty



Physical Characteristics



Dimension Direct Thermal:
8.7 in. L x 7.0 in. W x 5.9 in. H
221 mm L x 177 mm W x 151 mm H
Thermal Transfer:
10.5 in. L x 8.0 in. W x 7.5 in. H
267 mm L x 202 mm W x 192 mm H
Weight Direct Thermal: 3.6 lbs./1.6 kg
Thermal Transfer: 5.5 lbs./2.5 kg



Printer Specifications



Operating System Link-OS®
Resolution 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
Memory 512 MB Flash; 256 MB SDRAM
64 MB user available non-volatile memory
8 MB user available SDRAM
Maximum Print Width 4.09 in./104 mm for 203 dpi
4.27 in./108 mm for 300 dpi
Maximum Print Speed 8 in./203 mm per second (203 dpi)
6 in./152 mm per second (300 dpi)
Media Sensors Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Firmware ZPL II; EPL 2; XML; ZBI; PDF Direct



Media and Ribbon Characteristics



Label Length Maximum: 39.0 in./991 mm
Minimum: 0.25 in./6.4 mm
Media Width Direct Thermal: 0.585 in./15 mm to 4.25 in./108 mm
Thermal Transfer: 0.585 in./15 mm to 4.65 in./118 mm
Media Roll Size Maximum outer diameter: 5.0 in./127 mm
Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters
Media Thickness 0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max. (tear-off mode only)
Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, label or tag stock, continuous receipt paper, wristbands, linerless media*
* For use only with linerless printer model
Ribbon Outside DIameter 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)
Ribbon Standard Length 984 ft. (300 m); 243 ft. (74 m)
Ribbon Ratio 1:4 ribbon to media (300 m)
1:1 ribbon to media (74 m)
Ribbon Width 1.33 in./33.8 mm — 4.3 in./109.2 mm
Ribbon Core I.D. 300 meter ribbon 1 in./25.4 mm
74 meter ribbon 0.5 in./12.7 mm



Operating Characteristics



Operating Temp. 40° to 105° F/4.4° to 41° C
Storage Temp. -40° to 140° F/-40° to 60° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Electrical Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply

Options and Accessories



Media Handling Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable)
Cutter (factory installed or field installable)
Communications 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio), (factory installed or field installable)
User Interface 4.3” full color touch LCD (resolution: 480 wide x 272 high) with 3-button user interface
Battery Provides power to the printer to support a full shift of printing at maximum print speed; supports all connectivity and media handling options
Carrying Case Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application
Keyboard Display Unit Zebra Keyboard Display Unit (ZKDU) for stand-alone printing solutions
Media Locking Cabinet Mechanical lock with 2 keys; Kensington® lock slot; available on ZD621 healthcare direct thermal model only
Mounting Plate Secure ZD Series printers to countertops or shelves
Enclosed Power Supply Attached power supply accessory for cord-free installation



Fonts/Graphics/Symbologies



Bar Code Ratios 2:1 and 3:1
1D Bar Codes Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2D Bar Codes Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Fonts and Graphics 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font



Printers Supplies



For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer.



Regulatory



IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
