ZT600 SERIES INDUSTRIAL PRINTER


THE NEXT GENERATION XI SERIES, NOW WITH MORE INTELLIGENCE AND INDUSTRIAL BRAWN

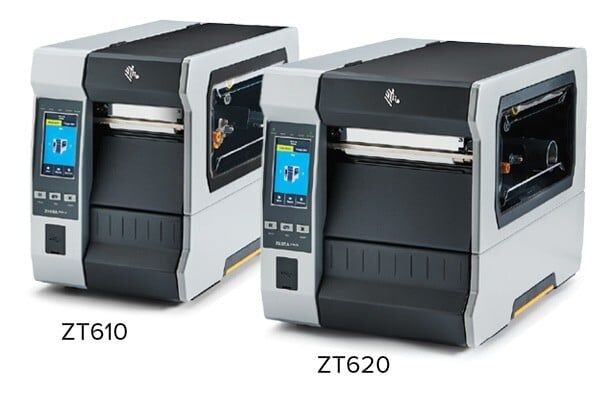

Advancing the legacy of their industry-leading Xi Series predecessors, the ZT610 and ZT620 combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business technology landscape. So, whether you’re concerned about growing production line demands, increasing operational complexities, integrating disparate systems or controlling investment costs, ZT600 Series Industrial Printers have you covered today—and for years to come.

24/7 Reliability in the Harshest Environments

ZT600 Series printers are built to withstand the most demanding industrial conditions, virtually eliminating operational downtime due to printer failure. Plus, they meet your high-volume production needs, day in and day out, with superior print quality and speed across the widest range of applications.

Micro-Consistent Printing for Top-Quality Micro Labels

Featuring highly precise registration and print line adjustment, the ZT610 offers 600 dpi printing for labels as small as 3 mm high (length) for applications like circuit boards, chips and miniature components—all without wasting expensive media due to improper printing.

User-Friendly Setup, Use, Maintenance & Troubleshooting

Intuitive Print DNA software, powered by Link-OS®, delivers unparalled intelligence and innovation for advanced connectivity, device management and privacy controls. User-friendly design features, including an optional color touch display, streamline everything from deployment to daily use to routine maintenance. Compatibility with other printing systems and technologies simplifies integration and management, while onboard sensors, diagnostics and help resources guide troubleshooting so users don’t have to call in support for every minor issue.

Highly Adaptable, Future-Ready Platforms

The last thing you need is a new piece of technology that will be obsolete in just a couple of years. That’s why the ZT600 Series was engineered with the future in mind—from an adaptable design that allows communications, media handling and other upgrades in the field, to compatibility with SOTI and AirWatch device management software, to intuitive Link-OS applications that simplify updates and reconfiguration as needed.

Feature Comparison

Maximum Print Width
ZT610: 4.09″/104 mm
ZT620: 6.6″/168 mm
Maximum Print Speed
ZT610:
14 ips/356 mm per second at 203 dpi
12 ips/305 mm per second at 300 dpi
6 ips/152 mm per second at 600 dpi

ZT620:
12 ips/305 mm per second at 203 dpi
8 ips/200 mm per second at 300 dpi

Print Resolution (dpi)
203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
600 dpi/24 dots per mm (optional for ZT610 only)

Standard Features

  • Print Methods: Thermal transfer and direct thermal printing
  • Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
  • Side-loading supplies path for simplified media and ribbon loading
  • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
  • Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0
  • Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance
  • Simplified icon menu navigation system categorizes settings into logical groups of functions

Printer Specifications

Operating SystemLink-OS®
Resolution203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
600 dpi/24 dots per mm (optional for ZT610 only)
Memory1 GB RAM memory
2 GB  on-board linear Flash memory
Maximum Print  WidthZT610: 4.09″/104 mm
ZT620: 6.6″/168 mm
Maximum Print SpeedZT610:  14 ips/356 mm per second
ZT620:  12 ips/305 mm per second
Media SensorsDual media sensors: transmissive and reflective
Maximum Continuous Print LengthZT610
203 dpi: 150″/3810 mm
300 dpi: 100″/2540 mm
600 dpi: 30″/762 mm

ZT620
203 dpi: 80″/2032 mm
300 dpi: 80″/2032 mm

Media Characteristics

Media WidthZT610: 0.79″/20 mm to 4.5″/114 mm
ZT620: 2.0″/51 mm to 7.1″/180 mm
Maximum Media
Roll Size
8.0″/203 mm O.D. on a 3″/76 mm I.D. core
Thickness0.0023″/0.058 mm to 0.010″/0.25 mm
Media TypesContinuous, die-cut, notch, black-mark

Ribbon Characteristics

Standard Length 1476’/450 m
WidthZT610: 0.79″/20 mm to 4.33″/110 mm
ZT620: 2.0″/51 mm to 6.7″/170 mm
Core1.0″/25.4 mm I.D.

Operating Characteristics

EnvironmentalOperating Temperature:
• Thermal transfer = 40ºF to 104ºF/5ºC to 40ºC
• Direct thermal = 32ºF to 104ºF/0ºC to 40ºC

Operating Humidity: 20% to 85% non-condensing

Storage/Transportation Temperature: -22F to 140F/
-30C to 60C

Storage Humidity: 20% to 85% non-condensing

ElectricalAuto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts

ENERGY STAR qualified

Agency ApprovalsIEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3

cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro

Physical Characteristics

ZT610 closed
Length19.88″/505 mm
Width10.56″/268.2 mm
Height15.58″/395.68 mm
Weight50 lbs/22.7 kg
ZT620 closed
Length19.88″/505 mm
Width13.44″/341.45 mm
Height15.58″/395.68 mm
Weight57.4 lbs/26 kg

Print DNA Software Solutions

Development ToolsWith faster, easier and smarter integration of Zebra printers with your devices and applications, your Zebra printing solutions are up and running in less time, with less cost.
Management ToolsMinimize IT effort and maximize IT control with Print DNA management tools — the easy way to add and manage any number of printers, anywhere — from a handful of printers to thousands of printers all around the world.
Productivity ToolsReach new levels of productivity with innovations that streamline tasks and workflow optimize device performance and solve tomorrow’s printing problems today.
Visibility ToolsRegardless of whether or not you have an existing Mobile Device Management solution in place, robust Visibility Tools provide unparalleled insight into printer health, usage and performance
Print DNA features may vary by model and a Support Contract may be required. For more information, please visit:
www.zebra.com/printdna

Firmware

ZBI 2.0™ – Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals and much more.
ZPL and ZPL II® – Zebra Programming Language provides sophisticated label formatting and printer control, and is compatible with all Zebra printers.
XML-enabled Printing – allows XML communications for barcode label printing.

Barcode Symbologies

Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Fonts and Graphics

16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts Asian and other international scalable and smooth bitmapped fonts
Unicode™: For multi-language printing
Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0
32 MB user available DRAM
512 MB user available on-board Flash

Options and Accessories

Connectivity

• Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port

Media Handling

• Rewind: Internally rewinds a full roll of printed labels on 3″ core, or peels and rewinds liner

• Cutter: Front-mount guillotine cutter and catch tray

• Ink-side in ribbon supply spindle

RFID

• Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols

• Integrated RFID system is user-upgradable in the field and available on both 4″ and 6″ models

• Adaptive Encoding Technology automatically selects optimum encode settings

Display

• Brightly lit, 4.3-inch full-color touch display with clear navigation and immediate status visibility and support

Keyboard Display Unit

• ZKDU™ keyboard display units for stand-alone printing applications

Recommended Services

Complete Visibility & Control
Operational & Asset Visibility Services (OVS/AVS) perfectly complement your business technology investments by giving you deep insight into the status, utilization and functionality of Link-OS enabled printing systems critical to your core processes. Plus, with Printer Profile Manager Enterprise, you can manage settings, firmware and more, on-site or remotely, so you’re always in control.
Zebra OneCare® Services
To enable predictable performance and improved business outcomes while eliminating unbudgeted repair costs, Zebra OneCare delivers expert technical assistance, repair services and software support for your ZT600 Series printer. Choose from a variety of plans to fit your specific operational needs—both today and as your operations evolve.
